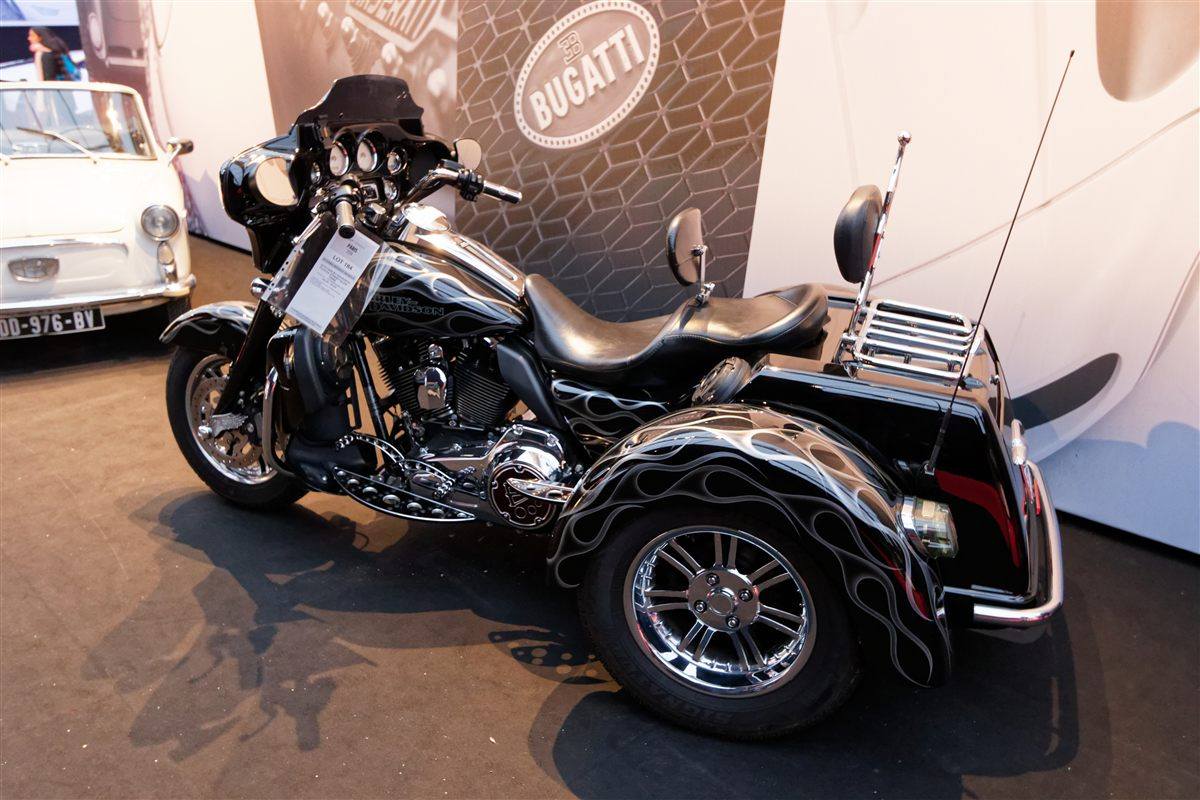

| MODEL | HARLEY-DAVIDSON STREET GLIDE TRIKE FLHXXX 2011 |
| Year | 2011 |
| Engine Type | Four stroke, V-twin, Twin Cam 103 with integrated oil cooler |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.7:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 138 Nm / 102 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Multi-plate, wet |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel, square-section backbone with twin downtubes |
| Front Suspension | 41.3 mm telescopic fork, triple-circuit damping |
| Rear Suspension | Mild steel rectangular-section swingarm, air-adjustable shocks |
| Front Brakes | 2x 300 mm discs, 4-piston calipers, ABS |
| Rear Brakes | Single 300 mm disc, 4-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2687 mm / 105.8 in |
| Overall Width | 1379 mm / 54.3 in |
| Overall Height | 1344 mm / 52.9 in |
| Seat Height | 679 mm / 26.7 in (laden), 721 mm / 28.4 in (unladen) |
| Wheelbase | 1691 mm / 66.6 in |
| Ground Clearance | 120 mm / 4.7 in |
| Dry Weight | 485.8 kg / 1071 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | MT90B16 |
| Rear Tyre | 2x 205/65R15 |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The second and final season of the Street Glide Trike, carried over essentially unchanged from 2010. It remained the lighter, lower-equipped alternative to the Tri Glide, with a compact trunk instead of a Tour-Pak, the Twin Cam 103 V-twin and a six-speed belt-drive driveline. Harley later dropped it, leaving the Tri Glide as the factory trike until the Freewheeler arrived.
