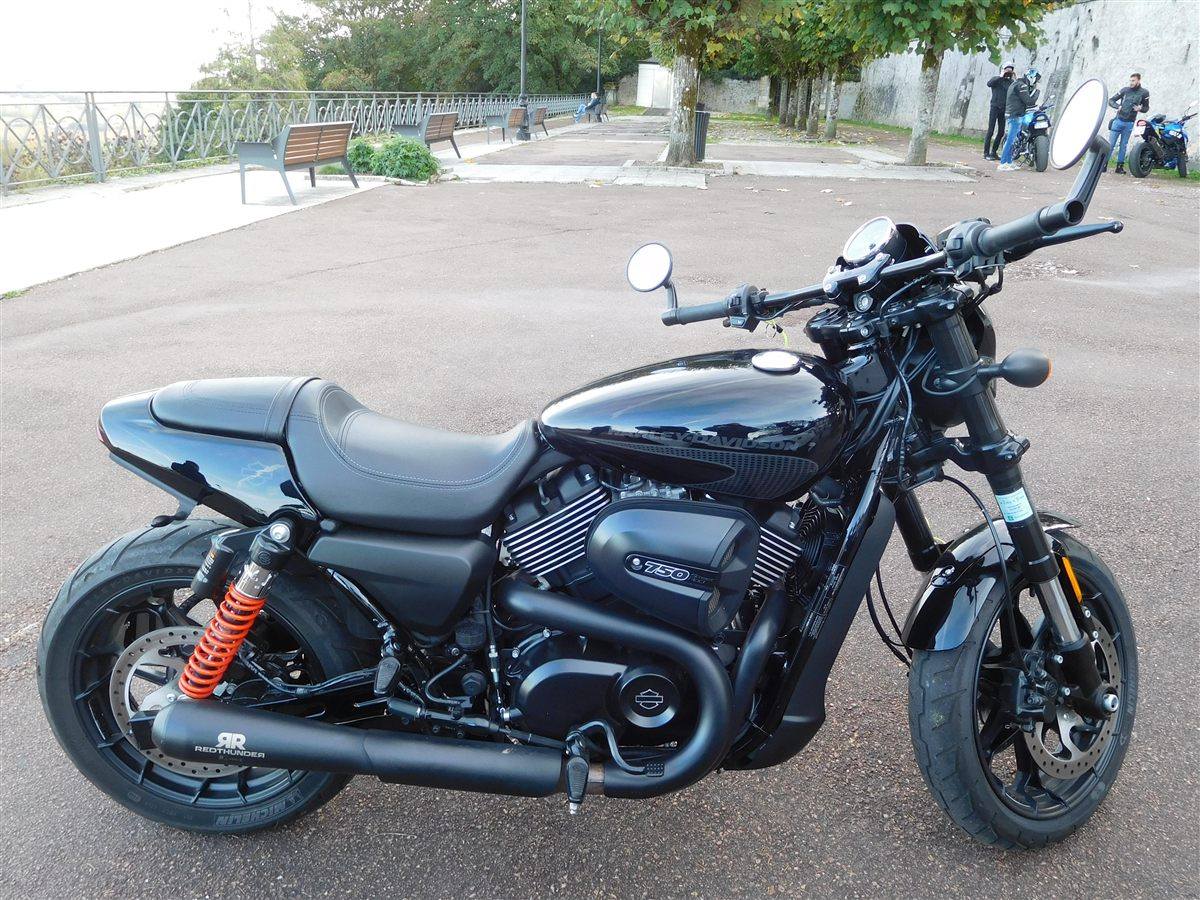

| MODEL | HARLEY-DAVIDSON STREET ROD 750 2017 - 2018 |
| Year | 2017 - 2018 |
| Engine Type | Four stroke, 60° V-twin, High Output Revolution X, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 749 cc / 46 cu in |
| Bore X Stroke | 85 x 66 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 51 kW / 68.4 hp @ 8750 rpm |
| Max Torque | 63.9 Nm / 47.2 lb-ft @ 4000 rpm |
| Ignition | Electronic |
| Induction | Mikuni twin-port fuel injection, 42 mm bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 43 mm upside-down forks |
| Rear Suspension | Dual shocks with external (piggyback) reservoirs |
| Front Brakes | 2 x 300 mm floating discs, 2-piston calipers |
| Rear Brakes | Single floating disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2131 mm / 83.9 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 747 mm / 29.4 in (laden), 765 mm / 30.1 in (unladen) |
| Wheelbase | 1508 mm / 59.4 in |
| Ground Clearance | 206 mm / 8.1 in |
| Dry Weight | 225.4 kg / 497 lbs |
| Wet Weight | 234 kg / 516 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 R17 V |
| Rear Tyre | 160/60 R17 V |
| FUEL SYSTEM | |
| Fuel Capacity | 13.1 Litres / 3.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The Street Rod was a sportier spin-off of the Street 750, introduced for 2017 with a High Output version of the Revolution X engine featuring higher compression, a larger airbox, a dual-throat throttle body and revised heads. The chassis was reworked with 43 mm inverted forks, piggyback rear shocks, twin front discs, 17-inch wheels and steeper steering geometry, giving more ground clearance and lean angle than the standard Street. Drag-style bars, bar-end mirrors and a short tail gave it a streetfighter-cruiser look.
