| MODEL | HARLEY-DAVIDSON V-ROD 100TH ANNIVERSARY 2003 |
| Year | 2003 |
| Engine Type | Four stroke, 60° V-twin, DOHC, 4 valves per cylinder (Revolution) |
| Displacement / Capacity | 1130 cc / 69 cu in |
| Bore X Stroke | 100 x 72 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 84 kW / 115 hp @ 8250 rpm |
| Max Torque | 100.3 Nm / 74 lb-ft @ 7300 rpm |
| Ignition | Sequential, single-fire non-waste spark, coil on plug |
| Induction | Sequential port electronic fuel injection, 53 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Gerotor, wet sump |
| Gear Box | 5 Speed |
| Clutch | Nine-plate wet, pressure fed, with integral compensation |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower rails; one-piece cast aluminium swingarm |
| Front Suspension | 49 mm telescopic fork, 100 mm / 3.9 in travel |
| Rear Suspension | Dual coil-over adjustable shocks, 70 mm / 2.7 in travel |
| Front Brakes | 2x 292 mm discs, 4-piston calipers |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2376 mm / 93.6 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 660 - 688 mm / 26.0 - 27.1 in |
| Wheelbase | 1713 mm / 67.5 in |
| Ground Clearance | 142 mm / 5.6 in |
| Dry Weight | 270.4 kg / 595 lbs |
| Wet Weight | 280 kg / 615.5 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR19 |
| Rear Tyre | 180/55 ZR18 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal |
| Fuel Consumption | 17.0 km/L |
| Top Speed | 218.6 km/h / 135.8 mph |

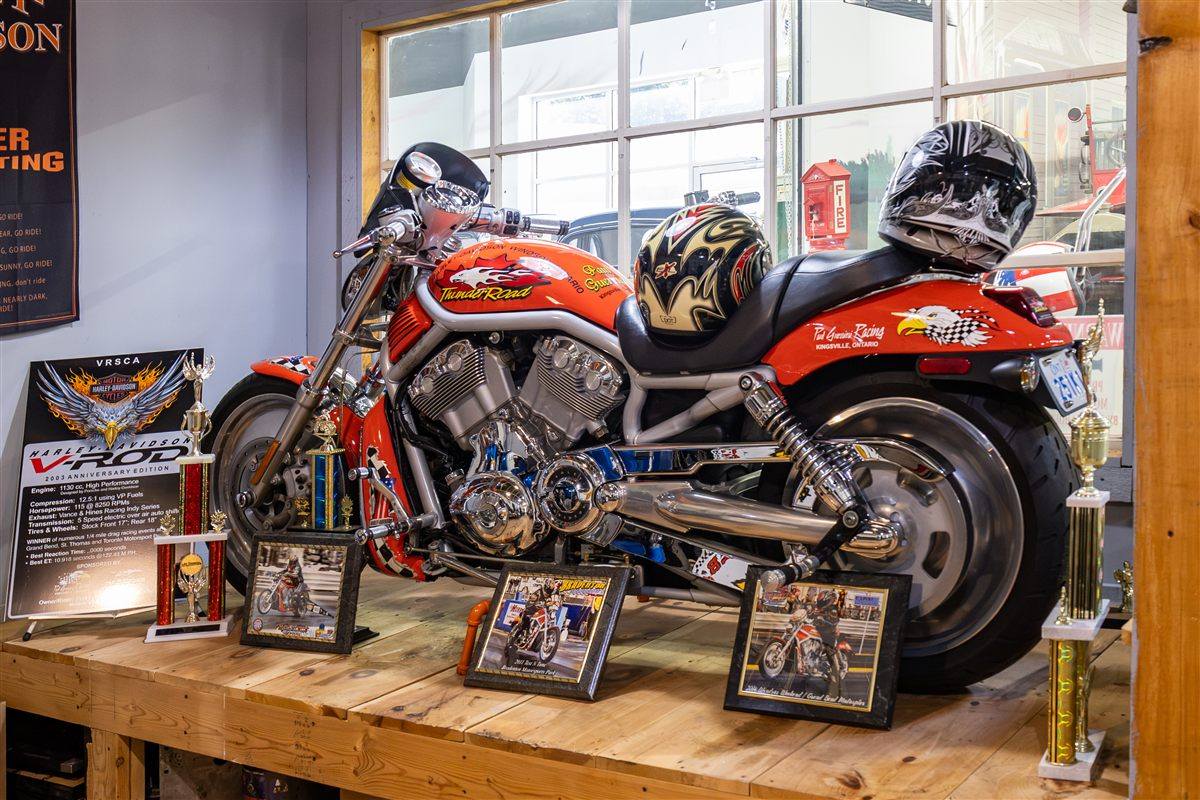

For Harley-Davidson's centenary in 2003, the V-Rod was offered in a 100th Anniversary Edition alongside the rest of the range. Mechanically it is the standard VRSCA; the difference lies in the special anniversary paint and the 100th Anniversary badging and emblems used across the 2003 line-up.
