| MODEL | HARLEY-DAVIDSON V-ROD MUSCLE VRSCF 2009 - 2010 |
| Year | 2009 - 2010 |
| Engine Type | Four-stroke, 60° V-twin, DOHC, 4 valves per cylinder (Revolution) |
| Displacement / Capacity | 1247 cc / 76.1 cu in |
| Bore X Stroke | 105 x 72 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 91 kW / 122 hp @ 8250 rpm |
| Max Torque | 117 Nm / 86 lb-ft @ 6500 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Wet multi-plate, assist and slip (slipper) clutch |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower rails; polished one-piece cast aluminium swingarm |
| Front Suspension | 43 mm inverted fork |
| Rear Suspension | Twin coil-over shocks, preload adjustable, 70 mm wheel travel |

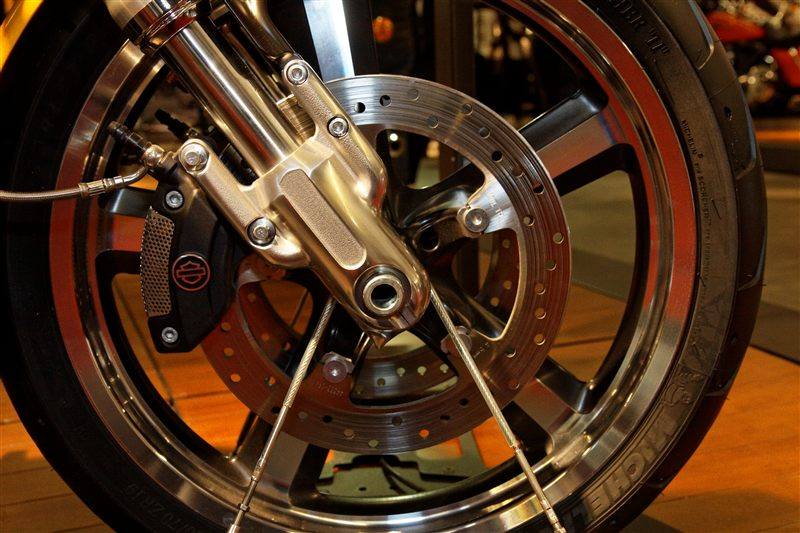

| Front Brakes | 2 x 300 mm discs, 4-piston calipers |
| Rear Brakes | Single 300 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2440 mm / 96.1 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 650 mm / 25.6 in (laden); 678 mm / 26.7 in (unladen) |
| Wheelbase | 1705 mm / 67 in |
| Ground Clearance | 114 mm / 4.5 in |
| Dry Weight | 305 kg / 673 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70ZR-19 |
| Rear Tyre | 240/40R-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 16.2 km/l |
| Top Speed | 223.5 km/h / 138.9 mph |

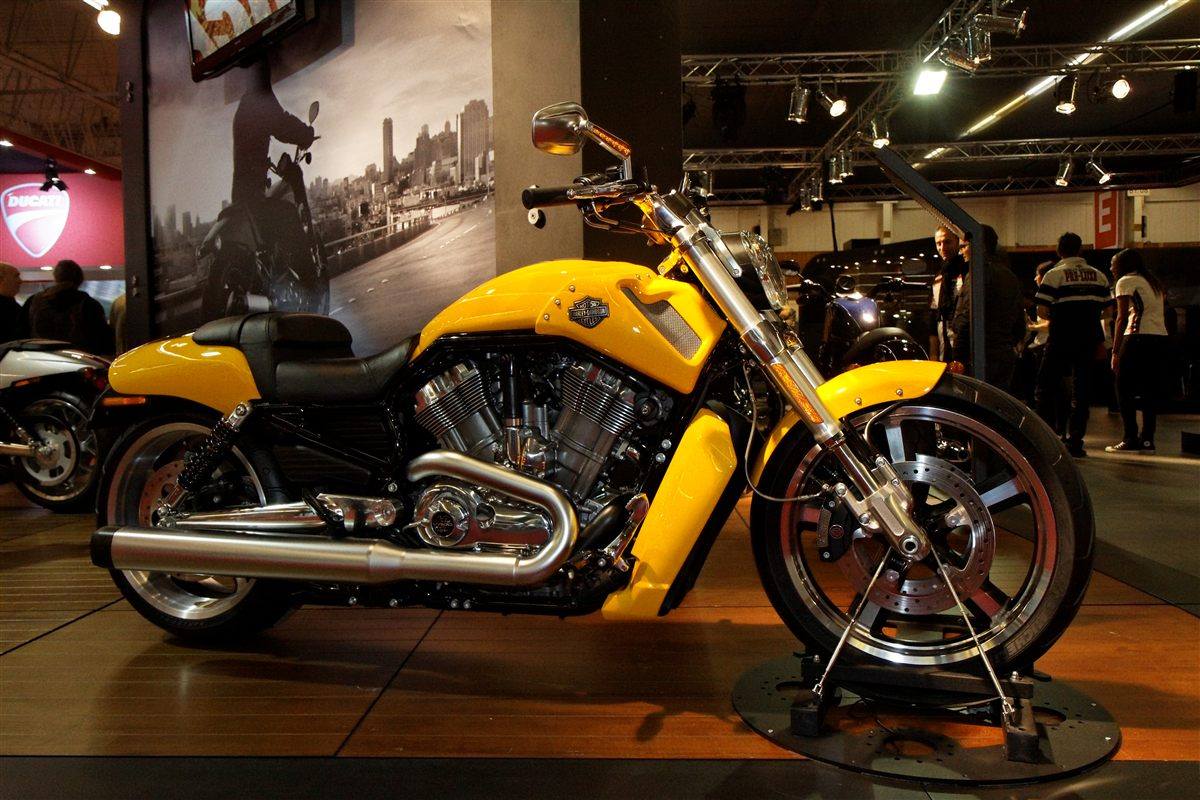

The V-Rod Muscle was introduced for 2009 as a muscle-car-inspired take on the V-Rod, with a wide airbox cover and dummy air scoops, a chopped rear fender with integrated turn signals and a side-mounted plate, and dual side-exit exhausts. A 240 mm rear tyre, forward controls and the 1250 cc Revolution engine with a slipper clutch completed it; its mirror-integrated turn signals were a first on a stock Harley-Davidson.
