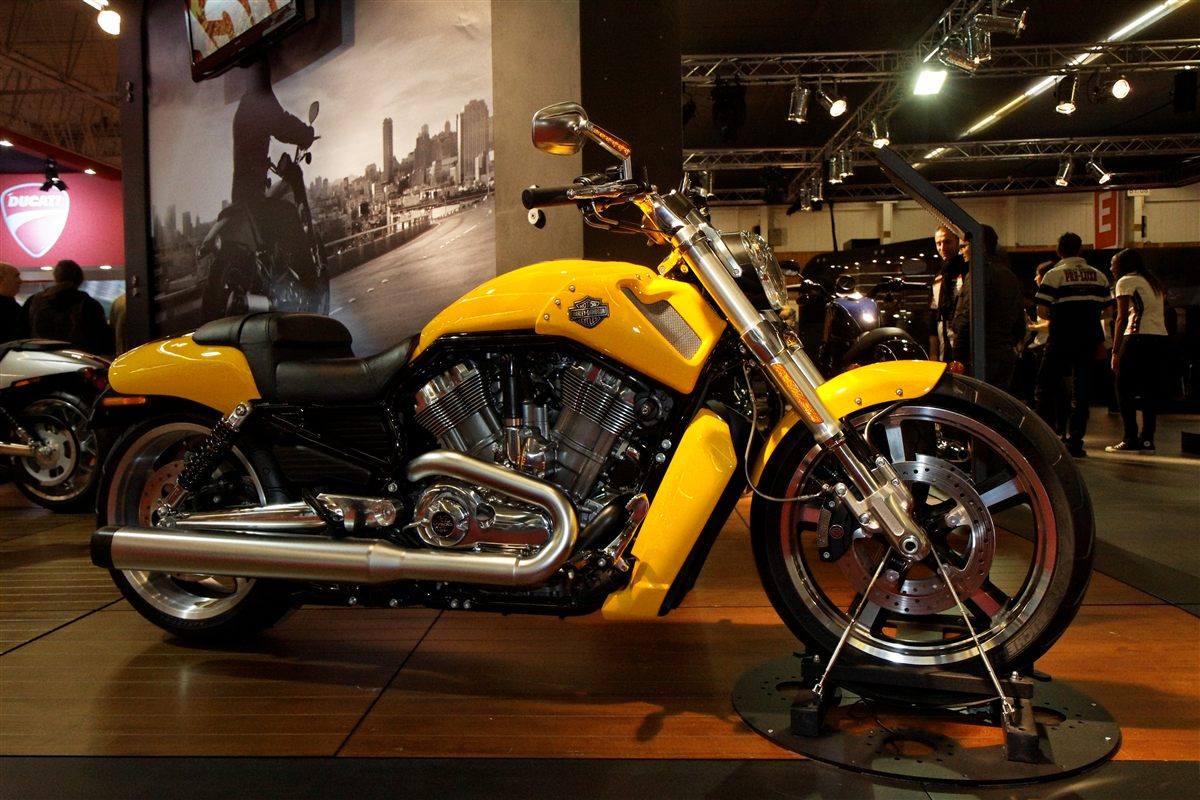

| MODEL | HARLEY-DAVIDSON V-ROD MUSCLE VRSCF 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 60° V-twin, DOHC, 4 valves per cylinder, Revolution |
| Displacement / Capacity | 1247 cc / 76.1 cu in |
| Bore X Stroke | 105 x 72 mm / 4.13 x 2.83 in |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 91 kW / 122 hp @ 8250 rpm |
| Max Torque | 115 Nm / 85 lb-ft @ 6500 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; polished one-piece cast aluminium swingarm |
| Front Suspension | 43 mm telescopic fork |
| Rear Suspension | Twin coil-over shocks, adjustable |

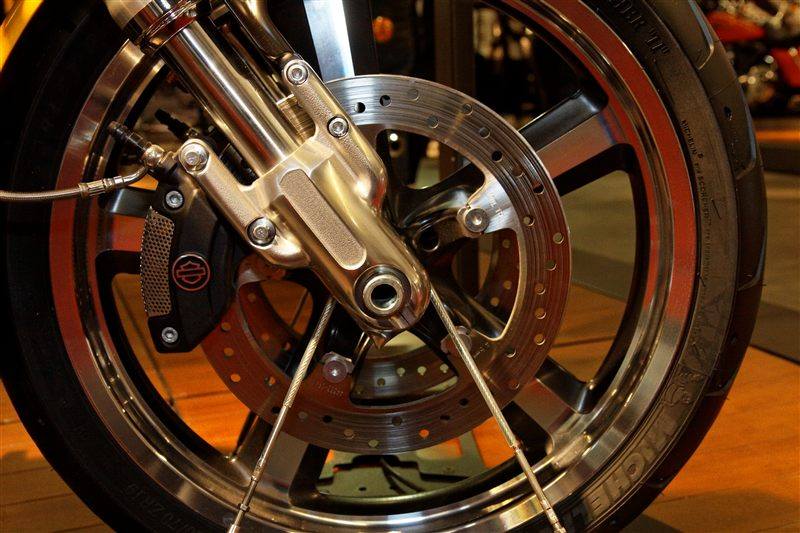

| Front Brakes | 2 x 300 mm discs, 4-piston calipers |
| Rear Brakes | Single 300 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2410 mm / 94.9 in |
| Overall Width | 950 mm / 37.4 in |
| Overall Height | 1065 mm / 41.9 in |
| Seat Height | 705 mm / 27.8 in |
| Wheelbase | 1700 mm / 66.9 in |
| Ground Clearance | 105 mm / 4.1 in |
| Dry Weight | 292 kg / 644 lb |
| Wet Weight | 307 kg / 677 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70ZR-19 60W |
| Rear Tyre | 240/40R-18 79V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 6.2 L/100 km / 38.1 US mpg |
| Top Speed | 223.5 km/h / 138.9 mph |
The 2016-2017 V-Rod Muscle was the final run of the VRSC family, which Harley-Davidson dropped after the 2017 model year. Mechanically it kept the 1247 cc dual-overhead-cam Revolution V-twin, forward controls, deep seat and 240-section rear tyre. Its dragster stance and strong mid-range made it a performance cruiser rather than a long-distance machine.
