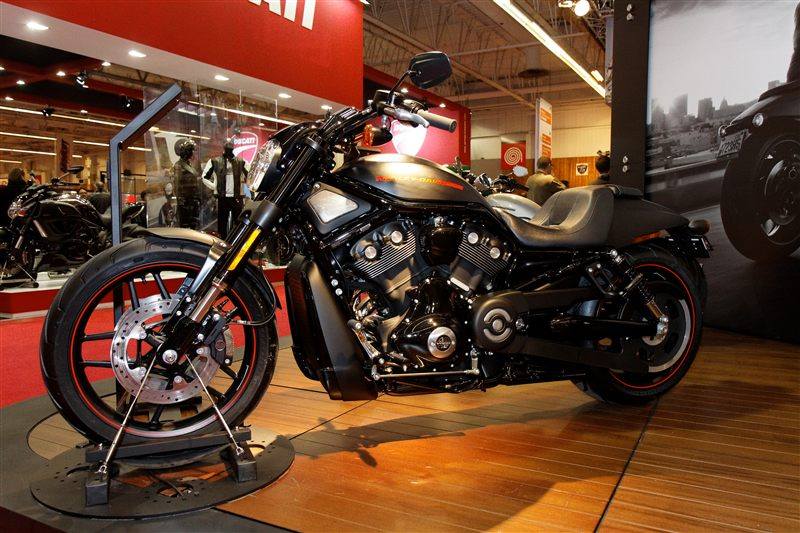

| MODEL | HARLEY-DAVIDSON V-ROD NIGHT ROD SPECIAL VRSCDX 2012 |
| Year | 2012 |
| Engine Type | Four-stroke, 60° V-twin, DOHC, 4 valves per cylinder (Revolution) |
| Displacement / Capacity | 1247 cc / 76.1 cu in |
| Bore X Stroke | 105 x 72 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 90.5 kW / 123 hp @ 8000 rpm |
| Max Torque | 116 Nm / 86 lb-ft @ 7250 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower rails, MIG welded |
| Front Suspension | 49 mm telescopic fork, 100 mm / 3.9 in travel |
| Rear Suspension | Dual coil-over adjustable shocks, 70 mm / 2.7 in travel |
| Front Brakes | 2 x 300 mm discs, 4-piston calipers |
| Rear Brakes | Single 300 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2440 mm / 96.1 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 650 mm / 25.6 in (laden); 678 mm / 26.7 in (unladen) |
| Wheelbase | 1705 mm / 67 in |
| Ground Clearance | 114 mm / 4.5 in |
| Dry Weight | — |
| Wet Weight | 304 kg / 670 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70ZR-19 60W |
| Rear Tyre | 240/40R-18 79V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2012 the Night Rod Special was restyled with a tapered tail section, lighter cast wheels and revised ergonomics that brought the bars and pegs closer to the rider. The rear suspension was retuned while the 1250 cc Revolution engine carried over. It remained the blacked-out power cruiser of the V-Rod family.
