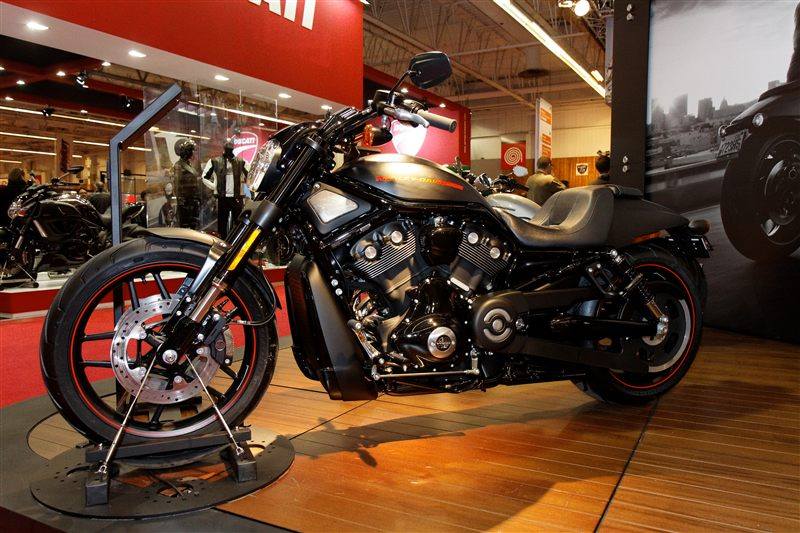

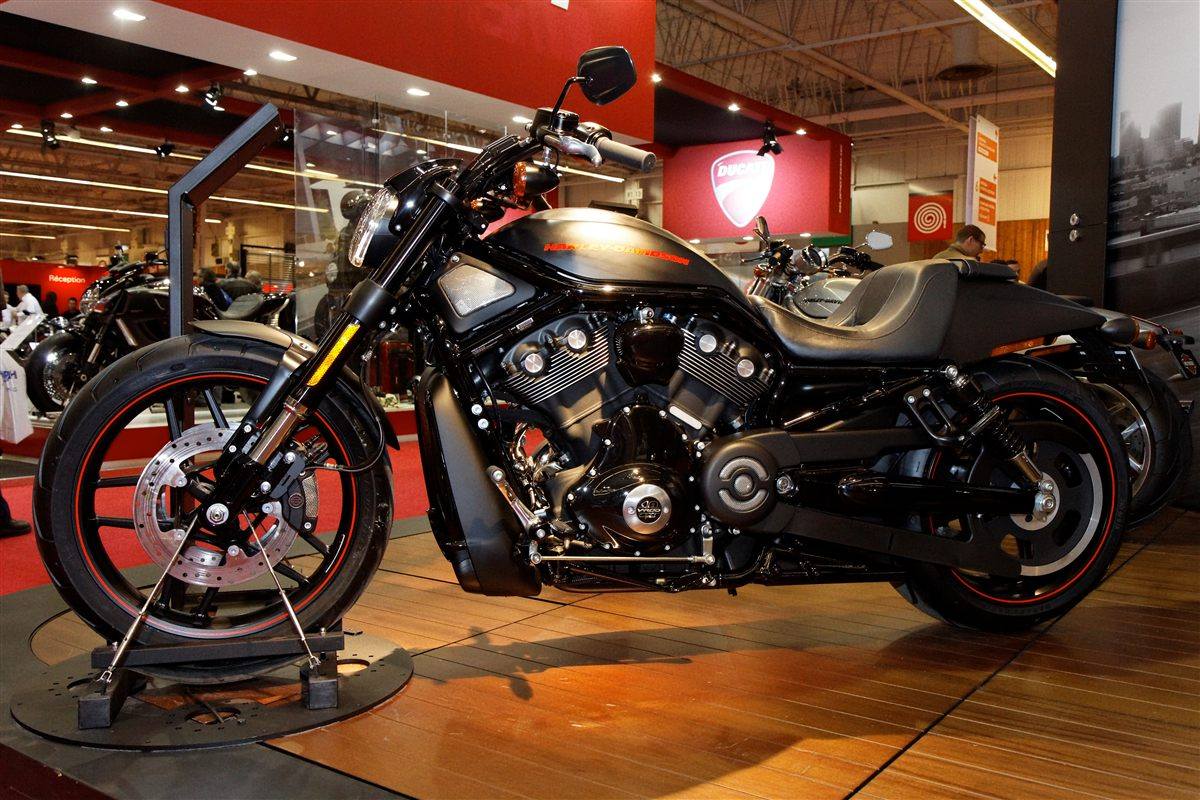

| MODEL | HARLEY-DAVIDSON V-ROD NIGHT ROD SPECIAL VRSCDX 2014 - 2015 |
| Year | 2014 - 2015 |
| Engine Type | Four-stroke, 60° V-twin, DOHC, 4 valves per cylinder (Revolution) |
| Displacement / Capacity | 1247 cc / 76.1 cu in |
| Bore X Stroke | 105 x 72 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 90.5 kW / 123 hp @ 8000 rpm |
| Max Torque | 116 Nm / 86 lb-ft @ 7250 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower rails, MIG welded |
| Front Suspension | 49 mm telescopic fork, 100 mm / 3.9 in travel |
| Rear Suspension | Dual coil-over adjustable shocks, 70 mm / 2.7 in travel |
| Front Brakes | 2 x 300 mm discs, 4-piston calipers |
| Rear Brakes | Single 300 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2440 mm / 96.1 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 650 mm / 25.6 in (laden); 678 mm / 26.7 in (unladen) |
| Wheelbase | 1705 mm / 67 in |
| Ground Clearance | 114 mm / 4.5 in |
| Dry Weight | — |
| Wet Weight | 304 kg / 670 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70ZR-19 60W |
| Rear Tyre | 240/40R-18 79V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Through 2014 and 2015 the Night Rod Special carried on with no significant mechanical changes. It kept the blacked-out drag-cruiser look, 240 mm rear tyre, slipper clutch and 1250 cc Revolution engine, with ABS and Smart Security sold as an optional package.
