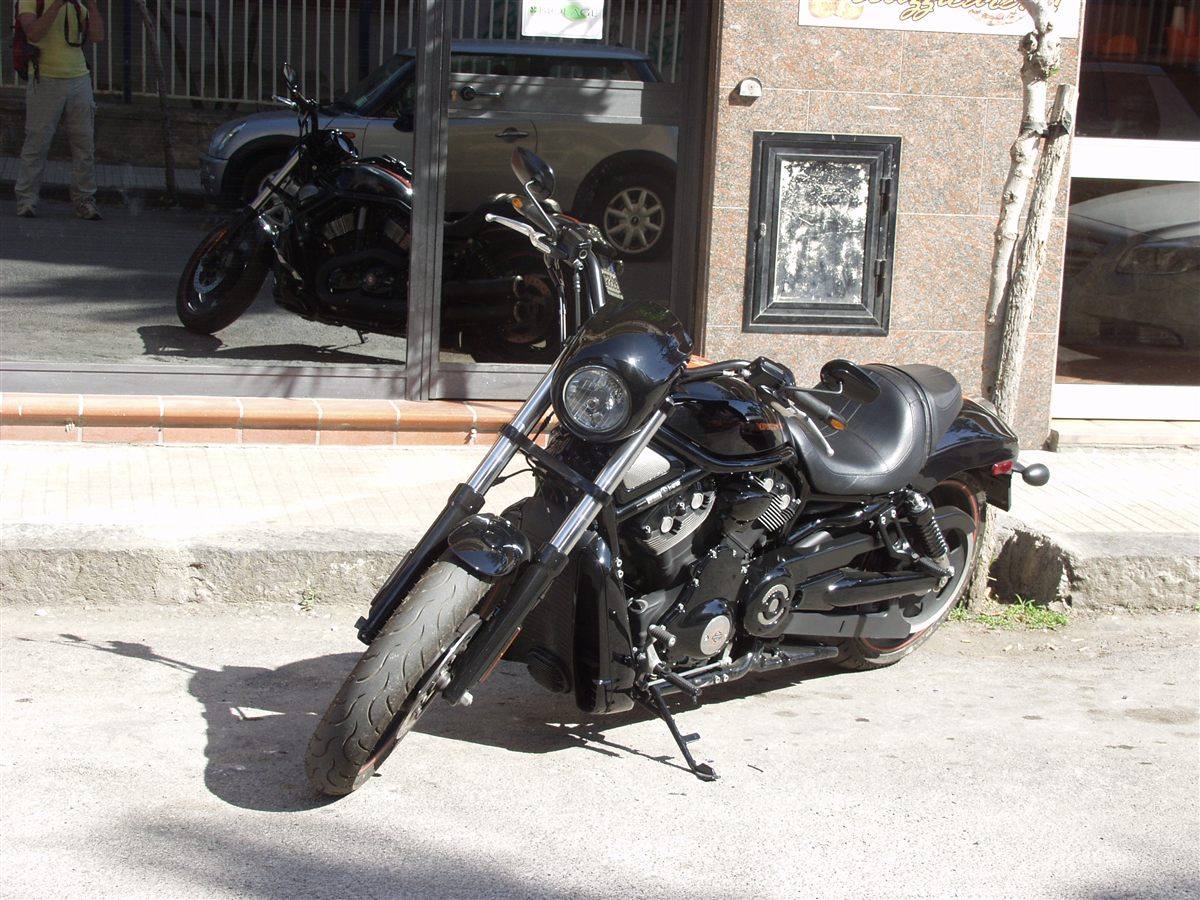

| MODEL | HARLEY-DAVIDSON V-ROD NIGHT ROD VRSCD 2007 |
| Year | 2007 |
| Engine Type | Four-stroke, 60° V-twin, DOHC, 4 valves per cylinder (Revolution) |
| Displacement / Capacity | 1130 cc / 69 cu in |
| Bore X Stroke | 100 x 72 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 89.5 kW / 120 hp @ 8250 rpm |
| Max Torque | 108.3 Nm / 80 lb-ft @ 7000 rpm |
| Ignition | Sequential, single-fire non-waste spark, coil on plug |
| Induction | Sequential port electronic fuel injection, 53 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Gerotor, wet sump |
| Gear Box | 5-speed |
| Clutch | Nine-plate wet, pressure-fed, with integral compensation |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel perimeter upper frame with hydroformed main rails and bolt-on lower rails, MIG welded |
| Front Suspension | 49 mm telescopic fork, 100 mm / 3.9 in travel |
| Rear Suspension | Dual coil-over adjustable shocks, 70 mm / 2.7 in travel |
| Front Brakes | 2 x 292 mm discs, 4-piston calipers |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2375.6 mm / 93.6 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 660 mm / 26.0 in |
| Wheelbase | 1713 mm / 67.5 in |
| Ground Clearance | 142 mm / 5.6 in |
| Dry Weight | 275 kg / 606.3 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70ZR-19 |
| Rear Tyre | 180/55ZR-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The Night Rod took the liquid-cooled VRSC platform in a darker, sportier direction, with blacked-out finishes, mid-mounted foot controls and a fork raked out to 34 degrees. For 2007 it still used the 1130 cc Revolution V-twin, good for roughly 120 hp, and rode on a 180-section rear tyre rather than the fat 240 of the Night Rod Special. It sat between the original V-Rod and the more aggressive Special in the line-up.
