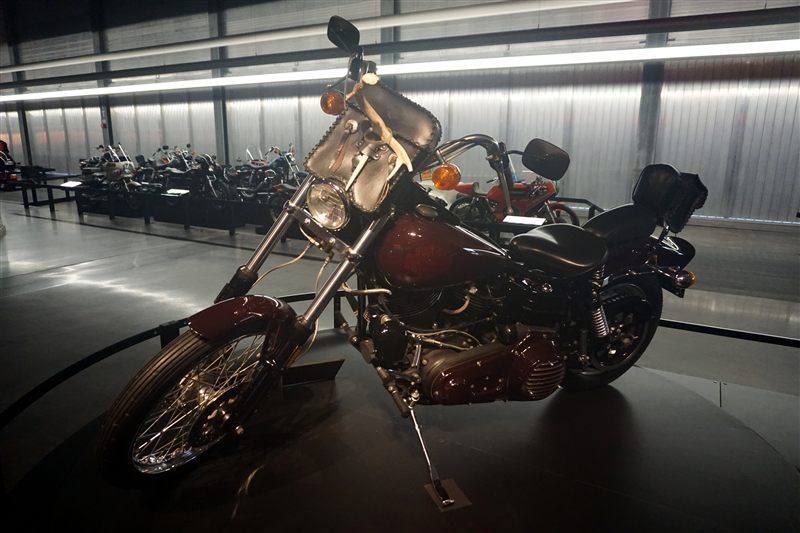

| MODEL | HARLEY-DAVIDSON WIDE GLIDE FXWG 1340 1980 |
| Year | 1980 |
| Engine Type | Air-cooled, 45° V-twin, OHV, 2 valves per cylinder |
| Displacement / Capacity | 1337 cc / 81.5 cu in (80 cu in) |
| Bore X Stroke | 88.8 x 108 mm |
| Compression Ratio | 7.4:1 |
| Cooling System | Air cooled |
| Max Power | 50 kW / 67 hp @ 5800 rpm |
| Max Torque | 93.5 Nm / 69 ft-lb @ 3000 rpm |
| Ignition | Breakerless electronic |
| Induction | 38 mm Keihin carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 4-speed |
| Clutch | Multi-plate, dry |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork, wide-set, offset triple clamps |
| Rear Suspension | Swingarm with twin shocks |
| Front Brakes | 2 x 292 mm discs |
| Rear Brakes | Single 255 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 278 kg / 613 lbs |
| WHEEL SPECS | |
| Front Tyre | — |
| Rear Tyre | MT90-16 (5.00-16) |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |

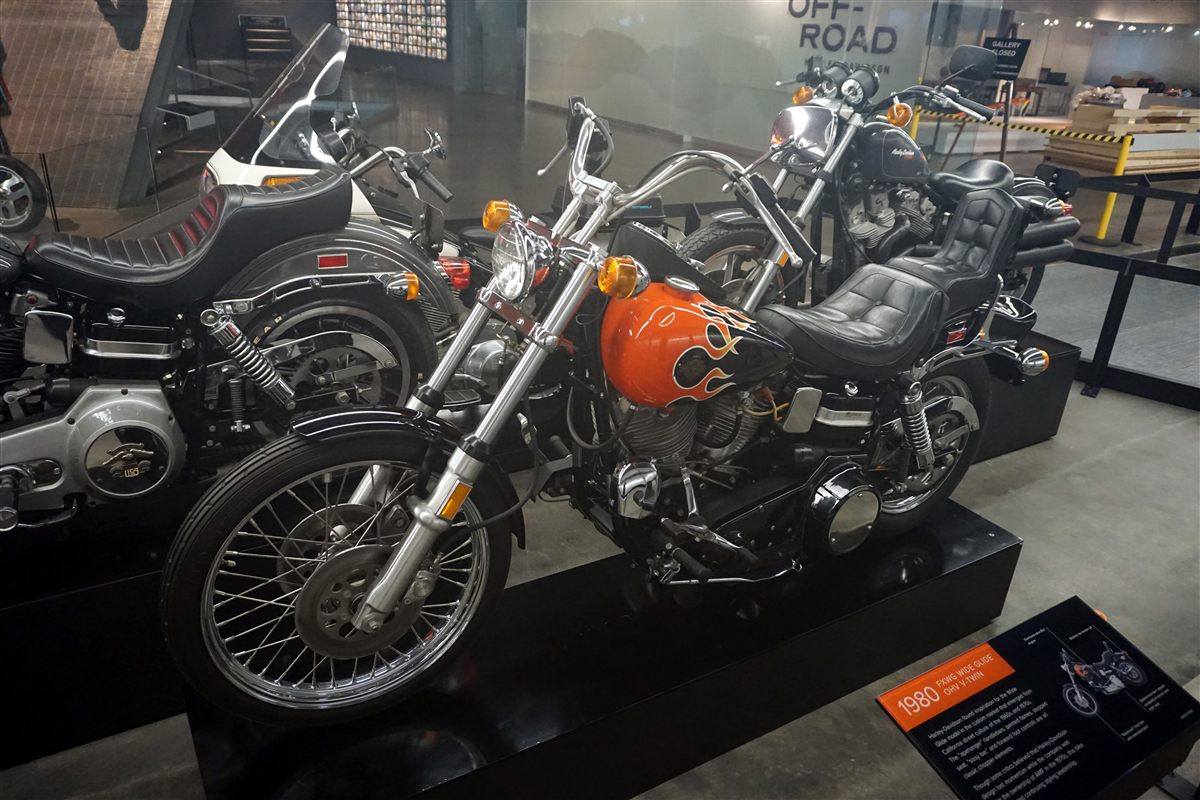

The FXWG was a factory custom built on the Low Rider formula, with widely spaced fork legs, a skinny 21-inch front wheel, a raked-out front end, forward controls, a "Bob-and-a-half" style tank and flame paint on the tank. For 1980 it used the 80 cu in OHV big twin with new breakerless electronic ignition and a four-speed gearbox. Its look later inspired the Dyna Wide Glide.
