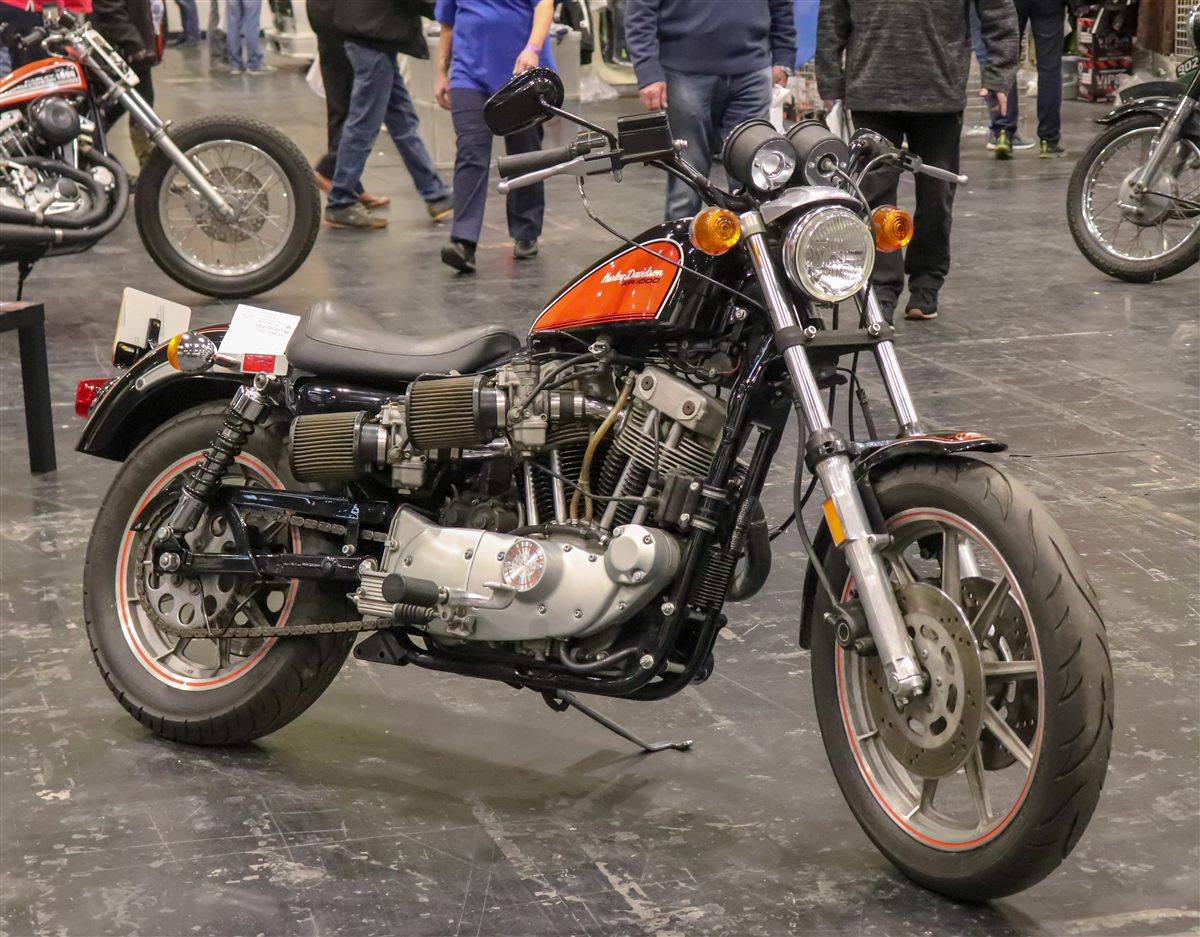

| MODEL | HARLEY-DAVIDSON XR 1000 1984 |
| Year | 1984 |
| Engine Type | Four-stroke, 45° V-twin, OHV, 2 valves per cylinder |
| Displacement / Capacity | 998 cc / 60.8 cu in |
| Bore X Stroke | 81 x 96.8 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 52.6 kW / 70 hp @ 5600 rpm |
| Max Torque | 65 Nm / 48 lb-ft @ 4400 rpm |
| Ignition | Electronic |
| Induction | 2 x 36 mm Dell'Orto carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4-speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks, 175 mm / 6.8 in travel |
| Rear Suspension | Swingarm, dual shocks, 100 mm / 3.9 in travel |
| Front Brakes | 2 x 292 mm discs |
| Rear Brakes | Single 292 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 228 kg / 502.6 lbs |
| Wet Weight | 231 kg / 509.3 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90 V19 |
| Rear Tyre | 130/90 V16 |
| FUEL SYSTEM | |
| Fuel Capacity | 9.5 Litres / 2.5 US gal |
| Fuel Consumption | 46 mpg (US) |
| Top Speed | 185 km/h / 115 mph |
The 1984 XR1000 was the second and final year of Harley's XR-750-inspired street Sportster, with no mechanical changes from the 1983 bike. Its 998cc engine with XR racing heads, twin Dell'Orto carburettors and stacked left-side exhausts made it the fastest Sportster of its day. A high price and its rough-edged manners kept sales low, which is why the XR1000 is now a collector's bike.
