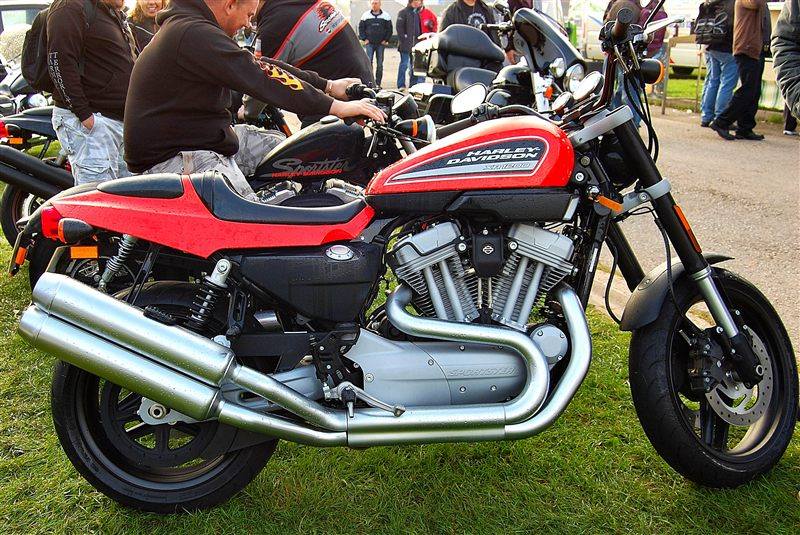

| MODEL | HARLEY-DAVIDSON XR 1200 2009 |
| Year | 2009 |
| Engine Type | Four-stroke, 45° V-twin, OHV, 2 valves per cylinder (Evolution) |
| Displacement / Capacity | 1202 cc / 73.3 cu in |
| Bore X Stroke | 88.9 x 96.8 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Air cooled |
| Max Power | 67 kW / 91 hp @ 7000 rpm |
| Max Torque | 100 Nm / 73.7 lb-ft @ 3700 rpm |
| Ignition | Electronic |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5-speed |
| Clutch | Cable-operated wet multi-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, cast junctions; aluminium swingarm |
| Front Suspension | 43 mm Showa inverted cartridge forks |
| Rear Suspension | Dual Showa shocks, adjustable preload |
| Front Brakes | 2 x 292 mm discs, Nissin 4-piston calipers |
| Rear Brakes | Single 260 mm disc, Nissin 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2169 mm / 85.4 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 742 mm / 29.2 in (laden), 775 mm / 30.5 in (unladen) |
| Wheelbase | 1519 mm / 59.8 in |
| Ground Clearance | 147 mm / 5.8 in |
| Dry Weight | 255 kg / 562 lbs |
| Wet Weight | 263 kg / 580 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR18 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 13.2 Litres / 3.5 US gal |
| Fuel Consumption | 19.8 km/L |
| Top Speed | 196.5 km/h / 122 mph |
The production XR1200 turned the 2006 prototype into a sport-styled Sportster, with a tuned 1200 Evolution engine making about 91 hp, inverted Showa forks, twin four-piston Nissin front brakes and an aluminium swingarm. It launched in Europe in 2008 and reached the US for 2009, mainly in Mirage Orange. Reviewers liked its handling and strong low-end torque but noted its weight and limited cornering clearance.
