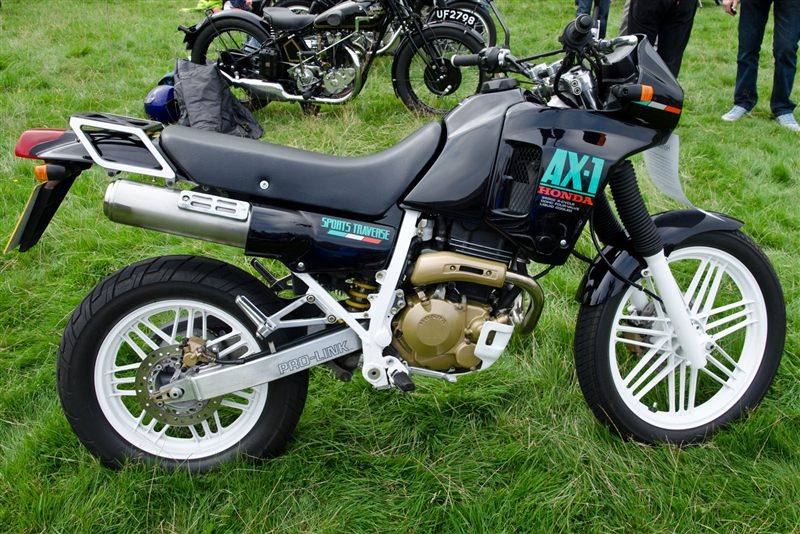

| MODEL | HONDA AX-1 1988 - 1990 |
| Year | 1988 - 1990 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 70.0 x 64.8 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 21.3 kW / 29 hp @ 8500 rpm |
| Max Torque | 2.6 kgf-m @ 7500 rpm |
| Ignition | CDI |
| Induction | PD6B carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork, 198 mm / 7.8 in travel |
| Rear Suspension | Pro-Link aluminium swingarm, 226 mm / 8.9 in travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| DIMENSION SPECS | |
| Overall Length | 2040 mm / 80 in |
| Overall Width | 805 mm / 31.7 in |
| Overall Height | 1115 mm / 43.9 in |
| Seat Height | 820 mm / 32 in |
| Wheelbase | 1350 mm / 53 in |
| Ground Clearance | — |
| Dry Weight | 118 kg / 260 lbs |
| Wet Weight | 133 kg / 293 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 120/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The AX-1 was the Japanese-market version of the NX250 dual-purpose bike, also sold in Oceania. It shared the NX250 chassis and liquid-cooled 249 cc DOHC single but added alloy rims, an aluminium Pro-Link swingarm with a rear disc, twin round headlights, hotter cams, a stainless exhaust and revised carburettor settings. Light and tall, it suited city commuting and gravel roads alike.
