| MODEL | HONDA C 110I DREAM 2011 - 2016 |
| Year | 2011 - 2016 |
| Engine Type | Four stroke, single cylinder, OHC |
| Displacement / Capacity | 109.1 cc / 6.7 cu in |
| Bore X Stroke | 50 x 55.6 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 6.0 kW / 8.0 hp @ 7500 rpm |
| Max Torque | 8.4 Nm / 0.86 kgf-m / 6.2 lb-ft @ 5500 rpm |
| Ignition | CDI |
| Induction | PGM-FI fuel injection |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4-speed |
| Clutch | Wet, semi-automatic |
| Final Drive | Chain, enclosed |
| CHASSIS SPECS | |
| Frame | Pressed steel underbone |
| Front Suspension | Telescopic fork |
| Rear Suspension | Swing arm |
| Front Brakes | Expanding drum, 110 mm |
| Rear Brakes | Expanding drum, 110 mm |
| DIMENSION SPECS | |
| Overall Length | 1915 mm / 75.4 in |
| Overall Width | 696 mm / 27.4 in |
| Overall Height | 1052 mm / 41.4 in |
| Seat Height | 745 mm / 29.3 in |
| Wheelbase | 1212 mm / 47.7 in |
| Ground Clearance | — |
| Dry Weight | 99 kg / 218 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 70/90-17 M/C 38P |
| Rear Tyre | 80/90-17 M/C 50P |
| FUEL SYSTEM | |
| Fuel Capacity | 4.3 Litres / 1.1 US gal |
| Fuel Consumption | 1.75 L/100 km / 57 km/l / 134 US mpg |
| Top Speed | — |

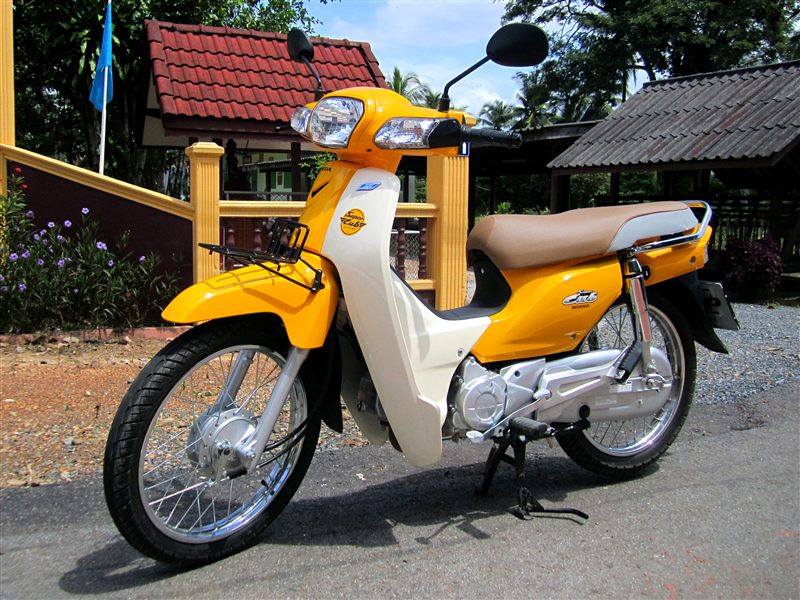

Photo: Khaosaming, CC BY-SA 4.0, via Wikimedia Commons
Photo: Khaosaming, CC BY-SA 4.0, via Wikimedia Commons
The Dream 110i replaced the carburetted EX5 Dream in Thailand in 2011, keeping the classic Cub silhouette but adding PGM-FI fuel injection and a 109 cc engine shared with the Wave 110i. Updates included a shuttered anti-theft key cylinder, new instruments, a more angular headlamp and modern tail light. Honda claimed around 57 km per litre, and the design later formed the basis of the Japanese Super Cub 110.
