| MODEL | HONDA C 50 SUPER CUB 1966 - 1980 |
| Year | 1966 - 1980 |
| Engine Type | Four stroke, single cylinder, OHC |
| Displacement / Capacity | 49.5 cc / 3.0 cu in |
| Bore X Stroke | 39 x 41.4 mm |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Max Power | 3.6 kW / 4.8 hp @ 10000 rpm |
| Max Torque | — |
| Ignition | Magneto |
| Induction | — |
| Start System | — |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 3-speed |
| Clutch | Wet, semi-automatic |
| Final Drive | — |
| CHASSIS SPECS | |
| Frame | Pressed steel underbone |
| Front Suspension | Leading link, 56 mm / 2.2 in travel |
| Rear Suspension | Swingarm, 61 mm / 2.4 in travel |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
| DIMENSION SPECS | |
| Overall Length | 1800 mm / 70.7 in |
| Overall Width | 640 mm / 25.2 in |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1180 mm / 46.5 in |
| Ground Clearance | — |
| Dry Weight | 69 kg / 152 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 2.50-17 |
| Rear Tyre | 2.50-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 3.0 Litres / 0.79 US gal |
| Fuel Consumption | — |
| Top Speed | — |

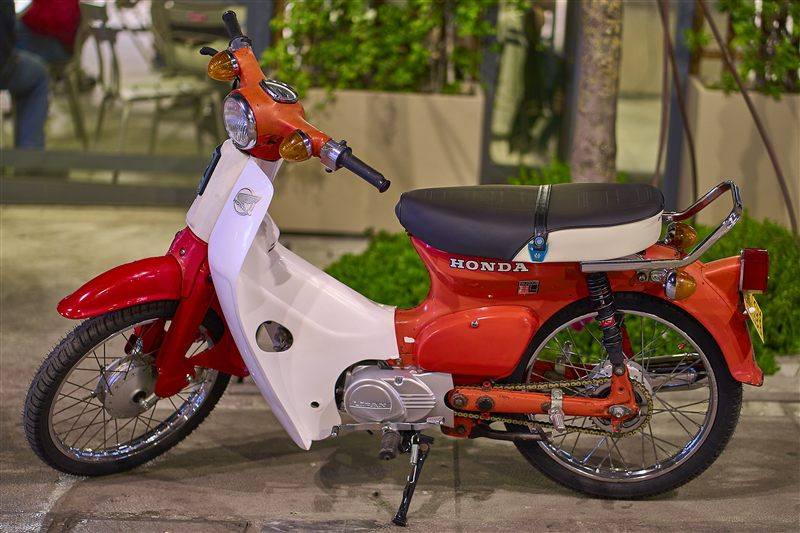

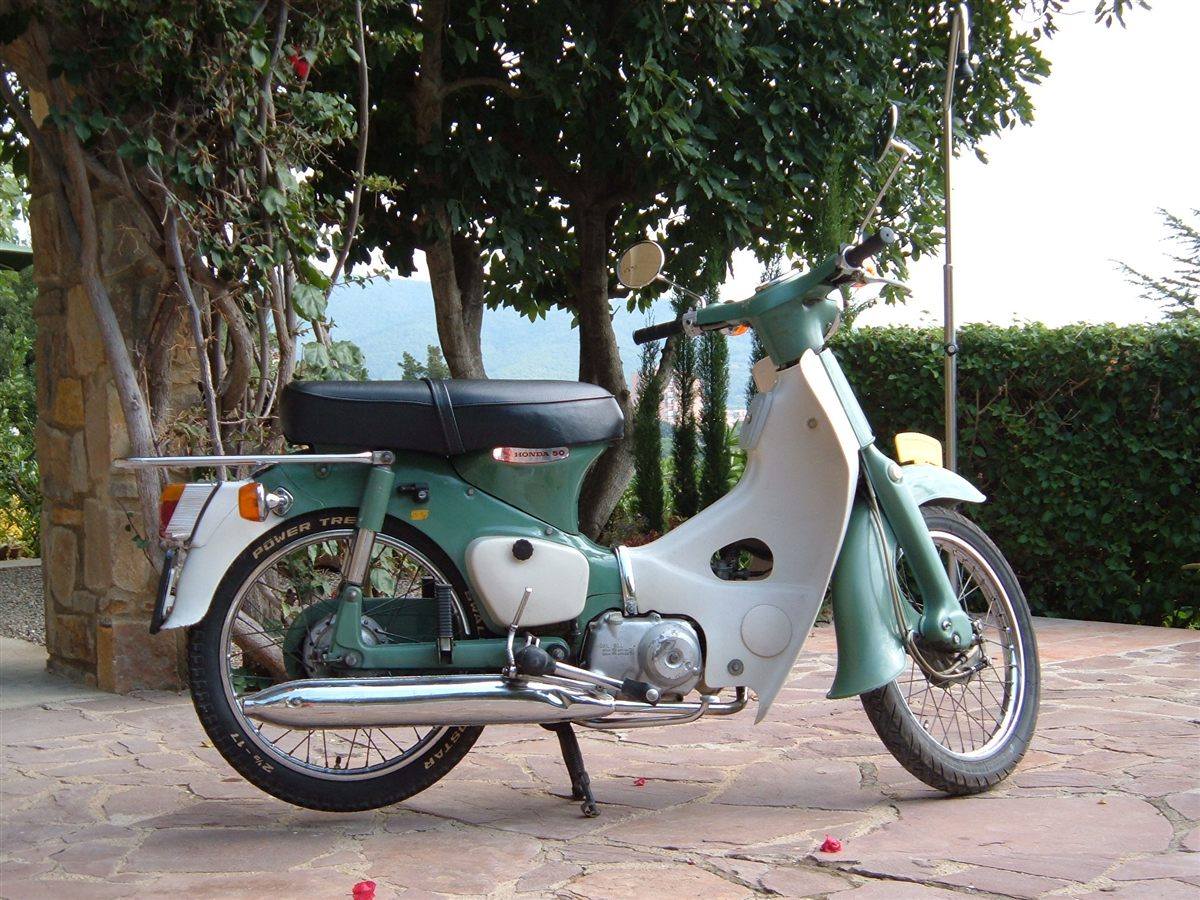

The C50 was the 49.5 cc overhead-cam Super Cub introduced in 1966. It kept the step-through pressed-steel frame, leg shields, leading-link fork and three-speed semi-automatic gearbox that made the Cub easy for anyone to ride. Sold worldwide for well over a decade, it helped make the Cub the best-selling motor vehicle in history.
