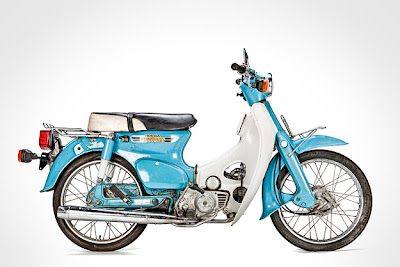

| MODEL | HONDA C 70 SUPER CUB SCOOTER 1969 - 1980 |
| Year | 1969 - 1980 |
| Engine Type | Four stroke, single cylinder, OHC |
| Displacement / Capacity | 71.8 cc / 4.4 cu in |
| Bore X Stroke | 47 x 41.4 mm |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Max Power | 4.5 kW / 6.08 hp @ 9000 rpm |
| Max Torque | 5.2 Nm / 0.53 kgf-m / 3.8 lb-ft @ 7000 rpm |
| Ignition | Magneto |
| Induction | — |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 3-speed |
| Clutch | Wet, semi-automatic |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Pressed steel underbone |
| Front Suspension | Leading link, 56 mm / 2.2 in wheel travel |
| Rear Suspension | Swing arm, 61 mm / 2.4 in wheel travel |
| Front Brakes | Expanding drum, 110 mm |
| Rear Brakes | Expanding drum, 110 mm |
| DIMENSION SPECS | |
| Overall Length | 1800 mm / 70.7 in |
| Overall Width | 640 mm / 25.2 in |
| Overall Height | 760 mm / 29.9 in |
| Seat Height | — |
| Wheelbase | 1180 mm / 46.5 in |
| Ground Clearance | — |
| Dry Weight | 72 kg / 158 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 2.25 x 17 in |
| Rear Tyre | 2.50 x 17 in |
| FUEL SYSTEM | |
| Fuel Capacity | 4.8 Litres / 1.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The C70 arrived in 1969 to replace the C65, giving the step-through Cub a 72 cc overhead-cam single with a little more pull than the 50 cc versions. It kept the familiar pressed-steel underbone, leg shields, leading-link fork and three-speed semi-automatic gearbox, so riders never needed a clutch lever. In North America it was sold as the Passport and became a staple commuter and campus bike through the 1970s.
