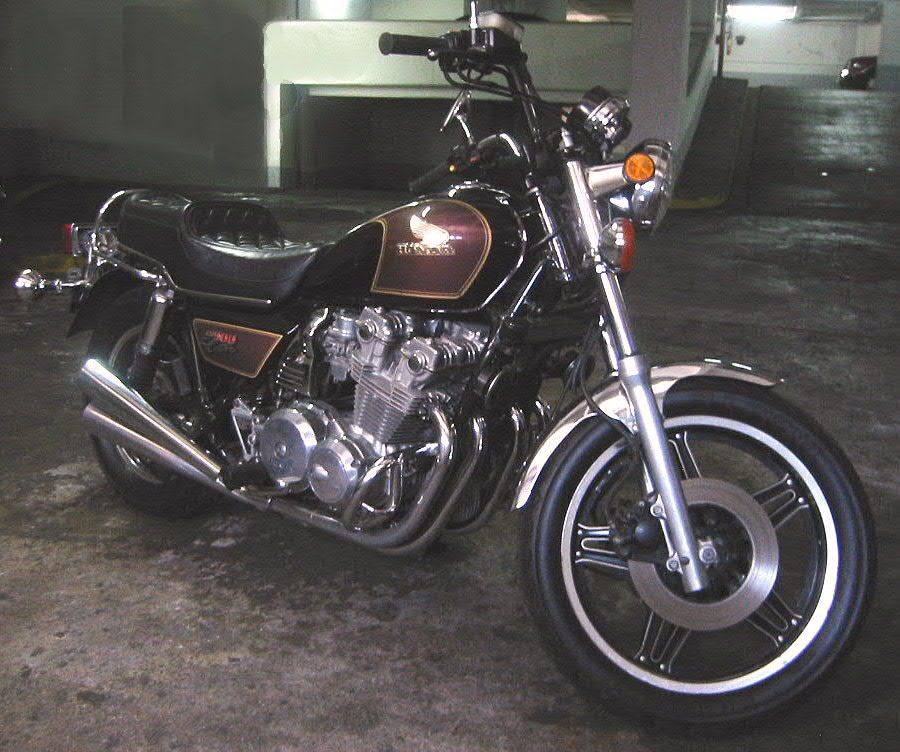

| MODEL | HONDA CB 1000 CUSTOM 1983 |
| Year | 1983 |
| Engine Type | Four stroke, transverse four cylinder, DOHC |
| Displacement / Capacity | 973 cc |
| Bore X Stroke | 67 x 69 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 89 hp @ 8000 rpm |
| Max Torque | 60.7 lb-ft @ 6500 rpm |
| Ignition | Transistorized, 2 magnetic triggers |
| Induction | 4x 32 mm Keihin CV carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed with dual-range sub-transmission (10 ratios) |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Air/coil spring telescopic fork with TRAC anti-dive, 160 mm travel |
| Rear Suspension | Swing arm, twin air/coil spring shocks, 99 mm travel |
| Front Brakes | 2x 274 mm discs |
| Rear Brakes | Single 296 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 810 mm |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 276 kg |
| WHEEL SPECS | |
| Front Tyre | 110/90-18 |
| Rear Tyre | 140/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 16.7 Litres / 4.4 US gal |
| Fuel Consumption | 47 mpg |
| Top Speed | 196 km/h / 122 mph |
The CB1000 Custom was a one-year model for 1983 that replaced the CB900C, enlarging its DOHC air-cooled four to 973 cc. It kept the custom-styled, shaft-drive layout aimed at American riders, including the unusual two-range sub-transmission that turned five gears into ten, and added TRAC anti-dive to the air-assisted front fork. Heavy and softly sprung, it was more of a comfortable cruiser-tourer than a sporting bike.
