| MODEL | HONDA CB 1000R 2017 |
| Year | 2017 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 998 cc / 60.9 cu in |
| Bore X Stroke | 75 x 56.5 mm |
| Compression Ratio | 11.2:1 |
| Cooling System | Liquid cooled |
| Max Power | 92 kW / 123.4 hp @ 10000 rpm |
| Max Torque | 99 Nm / 73 lb-ft @ 7500 rpm |
| Ignition | Computer controlled digital transistorized with 3-D mapping |
| Induction | PGM-FI electronic fuel injection, 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | #530 O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | Mono-backbone, cast aluminium |
| Front Suspension | 43 mm inverted HMAS cartridge fork, adjustable preload, compression and rebound damping |
| Rear Suspension | Single-sided swingarm, gas-charged HMAS monoshock, adjustable preload and rebound damping |
| Front Brakes | 2x 310 mm floating discs, radial 4 piston calipers |
| Rear Brakes | Single 256 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2105 mm / 82.9 in |
| Overall Width | 784 mm / 30.9 in |
| Overall Height | 1095 mm / 43.1 in |
| Seat Height | 828 mm / 32.6 in |
| Wheelbase | 1445 mm / 56.9 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | — |
| Wet Weight | 220 kg / 485 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | 6.4 L/100 km / 15.7 km/l / 37 mpg (US) |
| Top Speed | 228.6 km/h / 142 mph |

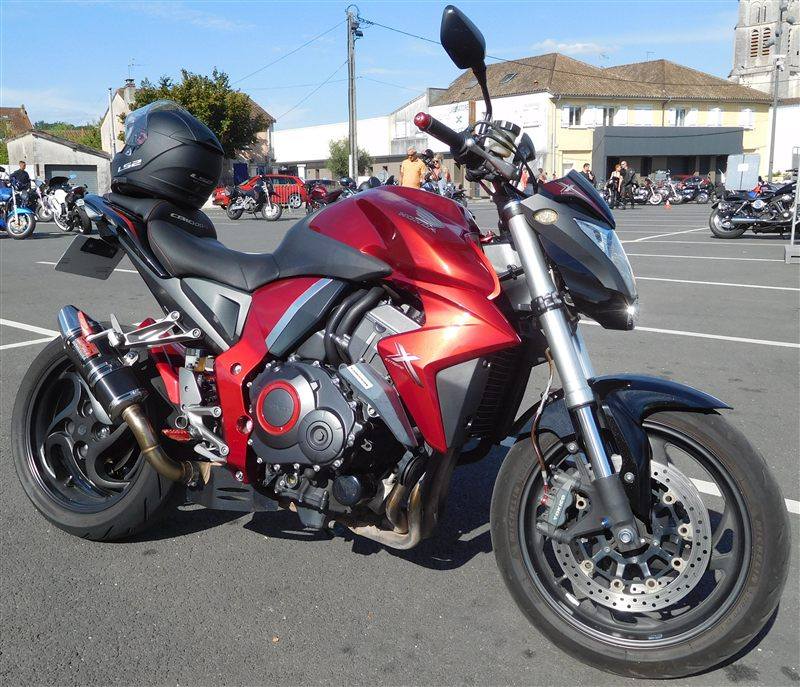

Photo: Addvisor, CC BY-SA 4.0, via Wikimedia Commons

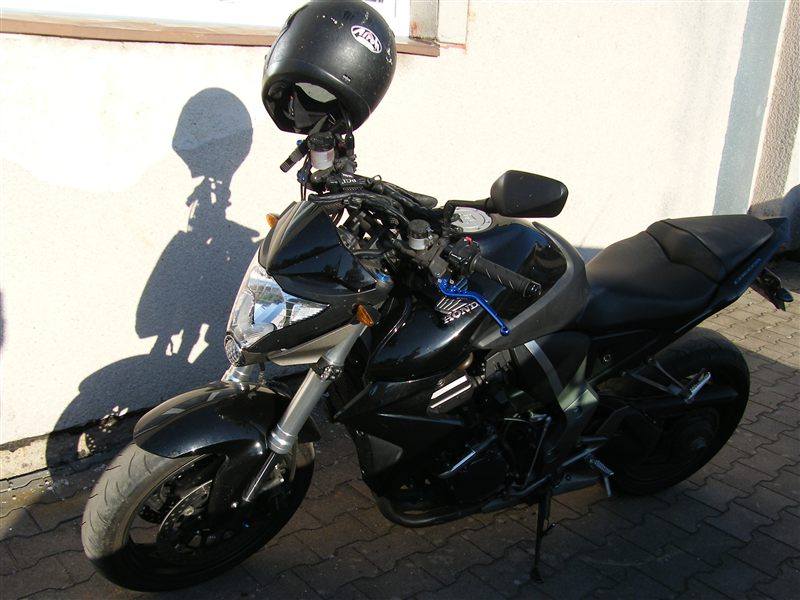

Photo: Cjp24, CC BY-SA 4.0, via Wikimedia Commons
The 2017 bike was the final run of the original CB1000R, the aluminium-framed streetfighter Honda launched in 2008 to replace the CB900F Hornet/919. Its 998 cc four was a softened version of the 2007 Fireblade engine, tuned for midrange rather than peak power, and the single-sided swingarm and sharp-edged bodywork set it apart from other Honda nakeds.
