| MODEL | HONDA CB 1000SF SUPER FOUR BIG ONE 1992 - 1993 |
| Year | 1992 - 1993 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 998 cc / 61 cu in |
| Bore X Stroke | 77 x 53.6 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 71.4 kW / 98 hp @ 8500 rpm |
| Max Torque | 84 Nm / 61.9 lb-ft @ 6000 rpm |
| Ignition | CDI |
| Induction | 4x 34 mm Keihin carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double cradle |
| Front Suspension | 43 mm telescopic fork |
| Rear Suspension | Twin shocks, adjustable preload |
| Front Brakes | 2x 310 mm discs |
| Rear Brakes | Single 276 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2220 mm / 87.4 in |
| Overall Width | 785 mm / 30.9 in |
| Overall Height | 1130 mm / 44.5 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 236 kg / 520 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70-18 |
| Rear Tyre | 170/60-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | 16.4 km/l |
| Top Speed | 226.7 km/h / 140 mph |

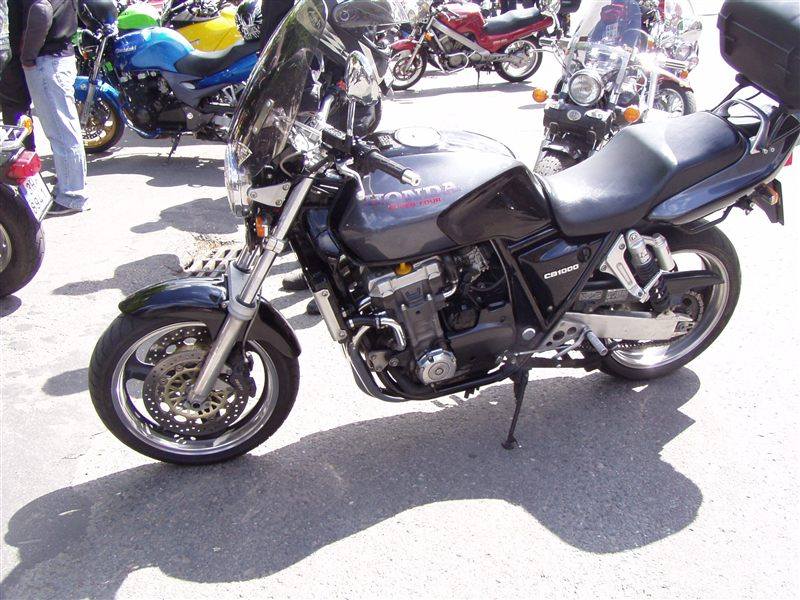

The CB1000 Super Four, nicknamed the Big One, grew out of Honda's PROJECT BIG-1 idea and was shown at the 1991 Tokyo Motor Show before going on sale in late 1992. It used a detuned CBR1000F four tuned for low and midrange pull in a steel double-cradle frame with twin rear shocks, recalling the unfaired muscle bikes of the 1970s. Big and heavy at walking pace, it proved surprisingly composed once moving. For 1993 two-tone white/red and black/silver colours were offered.
