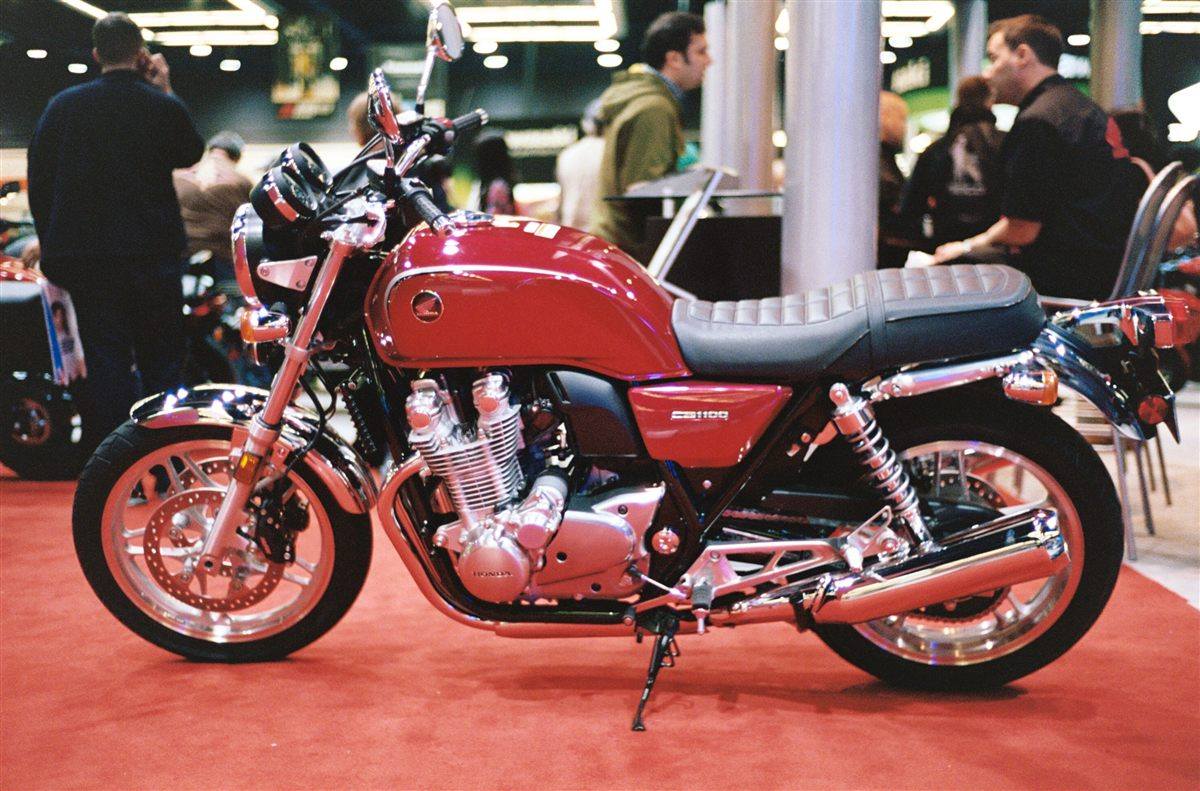

| MODEL | HONDA CB 1100 2015 |
| Year | 2015 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1140 cc / 69.5 cu in |
| Bore X Stroke | 73.5 x 67.2 mm / 2.9 x 2.6 in |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 66 kW / 88.5 hp @ 7500 rpm |
| Max Torque | 93 Nm / 68.5 lb-ft @ 5000 rpm |
| Ignition | Full-transistor battery ignition |
| Induction | PGM-FI electronic fuel injection, 32 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Multi-plate wet clutch |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Double steel cradle |
| Front Suspension | 41 mm conventional fork, 106 mm / 4.2 in travel |
| Rear Suspension | Dual shocks, spring preload adjustable, 114.3 mm / 4.5 in travel |
| Front Brakes | 2 x 296 mm discs, 4 piston calipers |
| Rear Brakes | Single 256 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2195 mm / 86.4 in |
| Overall Width | 835 mm / 32.8 in |
| Overall Height | 1130 mm / 44.4 in |
| Seat Height | 795 mm / 31.2 in |
| Wheelbase | 1490 mm / 58.7 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 247 kg / 544 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/80 R18 |
| Rear Tyre | 140/70 R18 |
| FUEL SYSTEM | |
| Fuel Capacity | — |
| Fuel Consumption | — |
| Top Speed | — |
The 2015 CB1100 carried over the 2014 update unchanged: six-speed gearbox, revised instruments and the same air-cooled four in a steel cradle frame. It remained the plainer sibling of the Deluxe and the wire-wheeled EX. In Japan Honda also sold a 200-unit special-edition CB1100 EX ABS this year.
