| MODEL | HONDA CB 1100 X-ELEVEN 2000 - 2003 |
| Year | 2000 - 2003 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1137 cc / 69.4 cu in |
| Bore X Stroke | 79 x 58 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 104 kW / 140 hp @ 9000 rpm |
| Max Torque | 116 Nm / 85.6 lb-ft @ 7000 rpm |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Induction | PGM-FI fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 43 mm cartridge-type fork, 120 mm travel |
| Rear Suspension | Gas-charged monoshock, 7-step preload adjustment, 120 mm travel |
| Front Brakes | 2x 310 mm discs, 3 piston calipers |
| Rear Brakes | Single 256 mm disc, 3 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2145 mm / 84.4 in |
| Overall Width | 750 mm / 29.5 in |
| Overall Height | 1115 mm / 43.9 in |
| Seat Height | 795 mm / 31.3 in |
| Wheelbase | 1500 mm / 59.1 in |
| Ground Clearance | 140 mm / 5.5 in |
| Dry Weight | 222 kg / 489 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | — |
| Top Speed | 252.7 km/h / 157 mph |

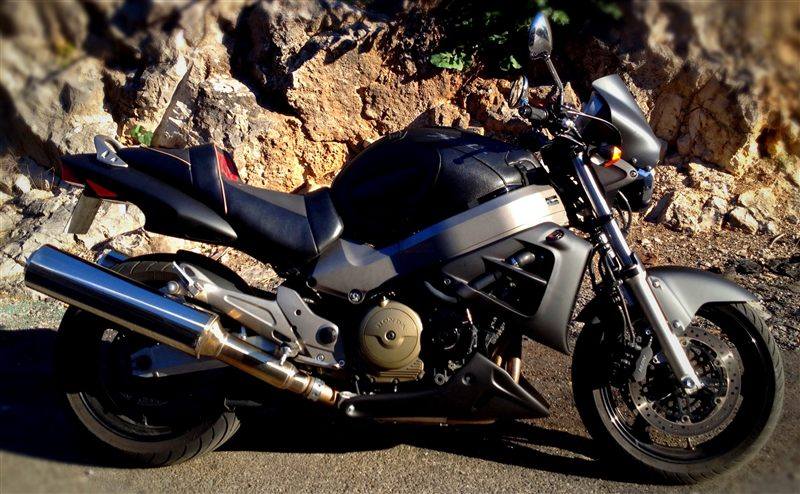

Photo: Wikinaut2, CC BY-SA 4.0, via Wikimedia Commons

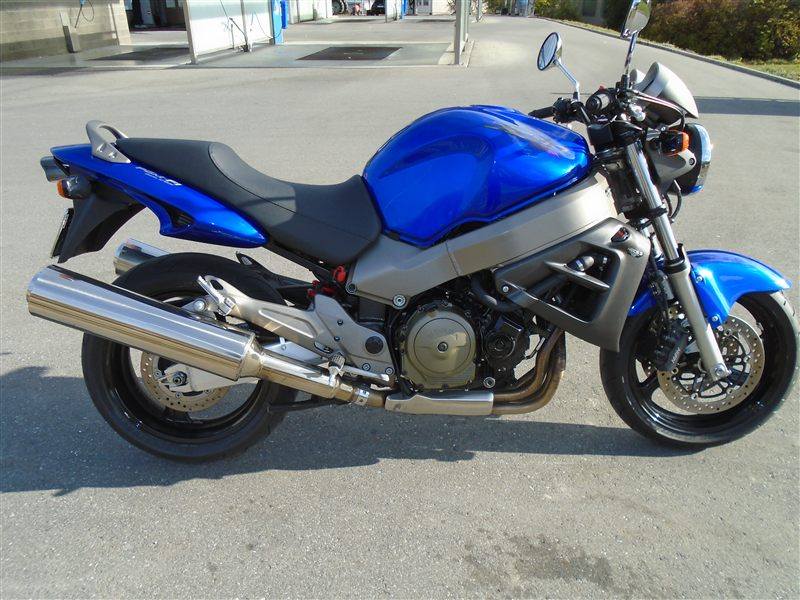

Photo: Zdefla, CC BY-SA 4.0, via Wikimedia Commons
The X-11 was a big naked roadster built around a detuned version of the Super Blackbird's fuel-injected 1137 cc four, reworked for stronger midrange. Its unusual styling, with a large shroud that ran from the headlight back over the radiator, was meant to help stability at speed. It was fast and comfortable but never sold strongly, and was dropped after 2003.
