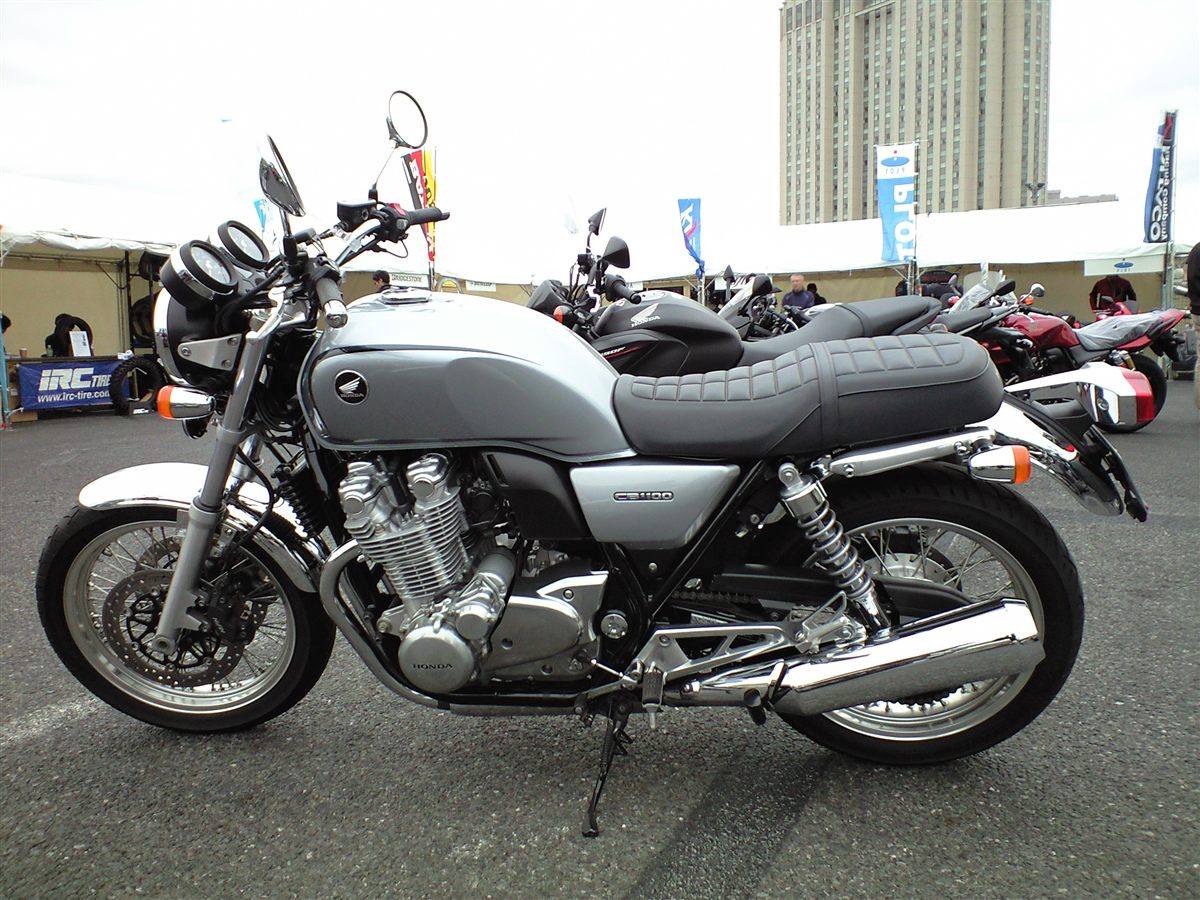

| MODEL | HONDA CB 1100EX 2016 |
| Year | 2016 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1140 cc / 69.5 cu in |
| Bore X Stroke | 73.5 x 67.2 mm / 2.9 x 2.6 in |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 66 kW / 88.5 hp @ 7500 rpm |
| Max Torque | 91 Nm / 67.1 lb-ft @ 5000 rpm |
| Ignition | Full-transistor battery ignition |
| Induction | PGM-FI electronic fuel injection, 32 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Multi-plate wet clutch |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Double steel cradle |
| Front Suspension | 41 mm conventional fork, 106 mm / 4.2 in travel |
| Rear Suspension | Dual shocks, spring preload adjustable, 114.3 mm / 4.5 in travel |
| Front Brakes | 2 x 296 mm discs, 4 piston calipers, combined ABS |
| Rear Brakes | Single 256 mm disc, combined ABS |
| DIMENSION SPECS | |
| Overall Length | 2195 mm / 86.4 in |
| Overall Width | 835 mm / 32.8 in |
| Overall Height | 1130 mm / 44.4 in |
| Seat Height | 795 mm / 31.2 in |
| Wheelbase | 1490 mm / 58.7 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | — |
| Wet Weight | 260 kg / 573.2 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/80 R18 |
| Rear Tyre | 140/70 R18 |
| FUEL SYSTEM | |
| Fuel Capacity | 17.5 Litres / 4.6 US gal |
| Fuel Consumption | 5.6 L/100 km / 50.6 mpg (imp, WMTC) |
| Top Speed | — |
The 2016 CB1100EX continued the 2014 specification without mechanical change. It kept the wire wheels, 17.5-litre tank, 4-2-2 exhaust and six-speed gearbox that set it apart from the base CB1100. It was offered in red, white or black.
