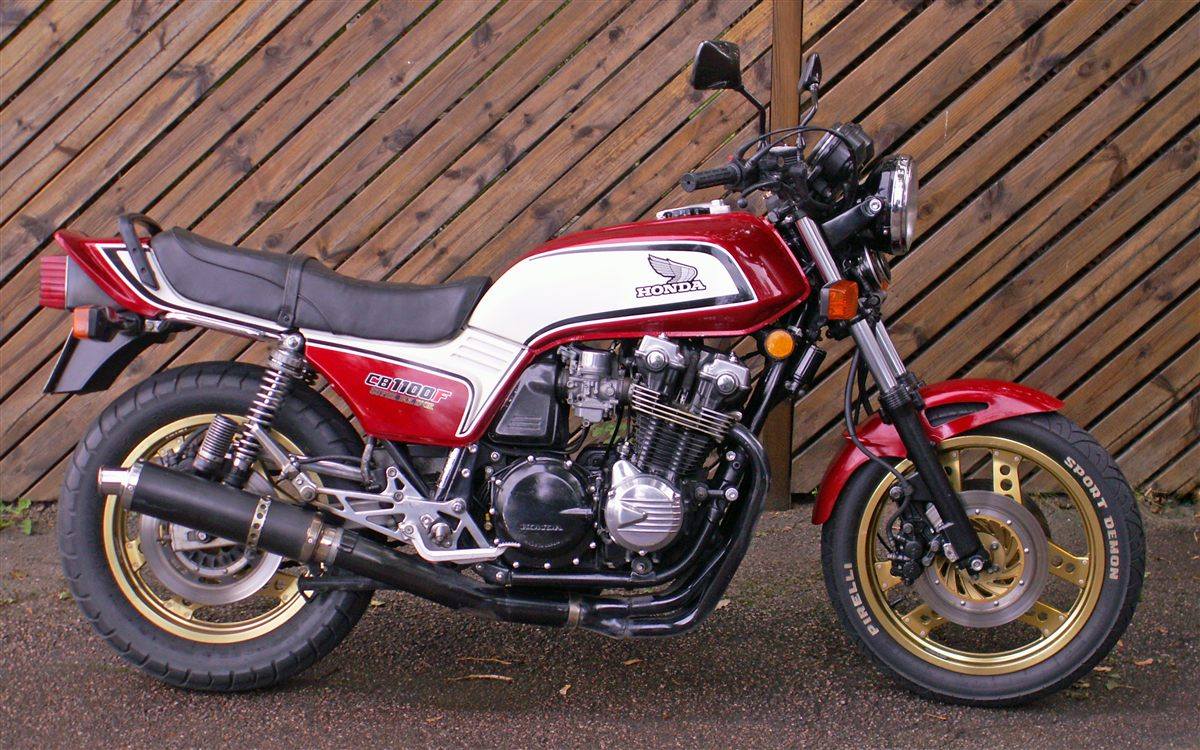

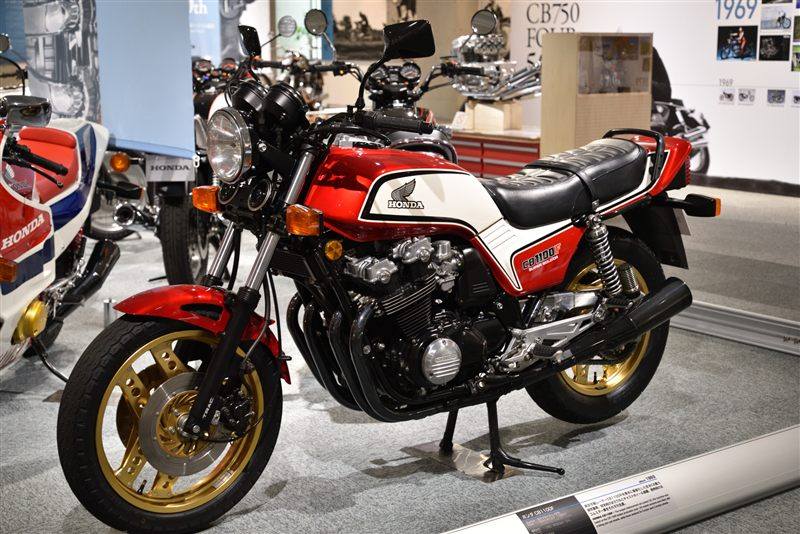

| MODEL | HONDA CB 1100F BOL D'OR 1983 |
| Year | 1983 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1062 cc / 64.8 cu in |
| Bore X Stroke | 70 x 69 mm |
| Compression Ratio | 9.7:1 |
| Cooling System | Air cooled |
| Max Power | 81 kW / 110 hp @ 8500 rpm |
| Max Torque | 98 Nm / 72.2 lb-ft @ 7500 rpm |
| Ignition | Electronic |
| Induction | 4x 34 mm Keihin CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Adjustable telescopic hydraulic fork |
| Rear Suspension | Swingarm with adjustable hydraulic twin shock absorbers |
| Front Brakes | 2x 296 mm discs, 2 piston calipers |
| Rear Brakes | Single 296 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2260 mm / 89.0 in |
| Overall Width | 805 mm / 31.7 in |
| Overall Height | 1125 mm / 44.3 in |
| Seat Height | 795 mm / 31.3 in |
| Wheelbase | 1520 mm / 59.8 in |
| Ground Clearance | — |
| Dry Weight | 243 kg / 536 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90 V18 |
| Rear Tyre | 130/90 V17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | — |
| Top Speed | 223 km/h / 138.5 mph |
The CB1100F took the CB1100R's 1062 cc engine and put it into a CB900F-based roadster for a wider market. Hotter cams, bigger pistons, 34 mm carburettors and more rake made it the strongest of Honda's air-cooled fours, with Cycle World recording an 11.1-second quarter mile. It was sold in Europe, the USA, Canada and Australia, with the US version getting a quarter fairing.
