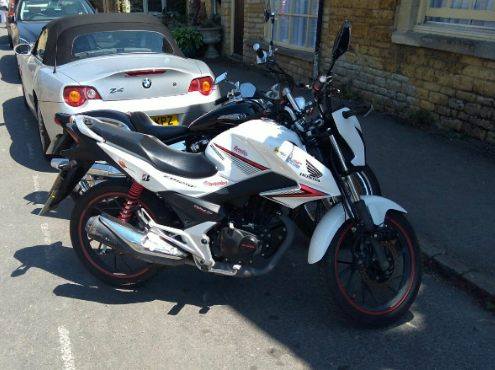

| MODEL | HONDA CB 125F 2018 - 2020 |
| Year | 2018 - 2020 |
| Engine Type | Four stroke, single cylinder, OHC, 2 valves |
| Displacement / Capacity | 124.7 cc / 7.6 cu in |
| Bore X Stroke | 52.4 x 57.8 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | 7.8 kW / 10.5 hp @ 7750 rpm |
| Max Torque | 10.2 Nm / 7.5 lb-ft @ 6250 rpm |
| Ignition | Digital CDI |
| Induction | Fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel backbone |
| Front Suspension | 31 mm telescopic fork, non-adjustable |
| Rear Suspension | Dual shocks with 5-step spring preload adjustment |
| Front Brakes | Single 240 mm disc, 2-piston caliper |
| Rear Brakes | 130 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2035 mm / 80.1 in |
| Overall Width | 765 mm / 30.1 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 774 mm / 30.4 in |
| Wheelbase | 1295 mm / 50.9 in |
| Ground Clearance | 160 mm / 6.2 in |
| Dry Weight | — |
| Wet Weight | 129 kg / 284.3 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/100-18 M/C 47P |
| Rear Tyre | 90/90-18 M/C 51P |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2018 to 2020 the CB125F continued essentially unchanged from the 2015 version: the same 124.7 cc air-cooled fuel-injected single, five-speed gearbox, 18-inch wheels and 13-litre tank. It remained an easy, upright and economical entry-level bike aimed at new riders and commuters.
