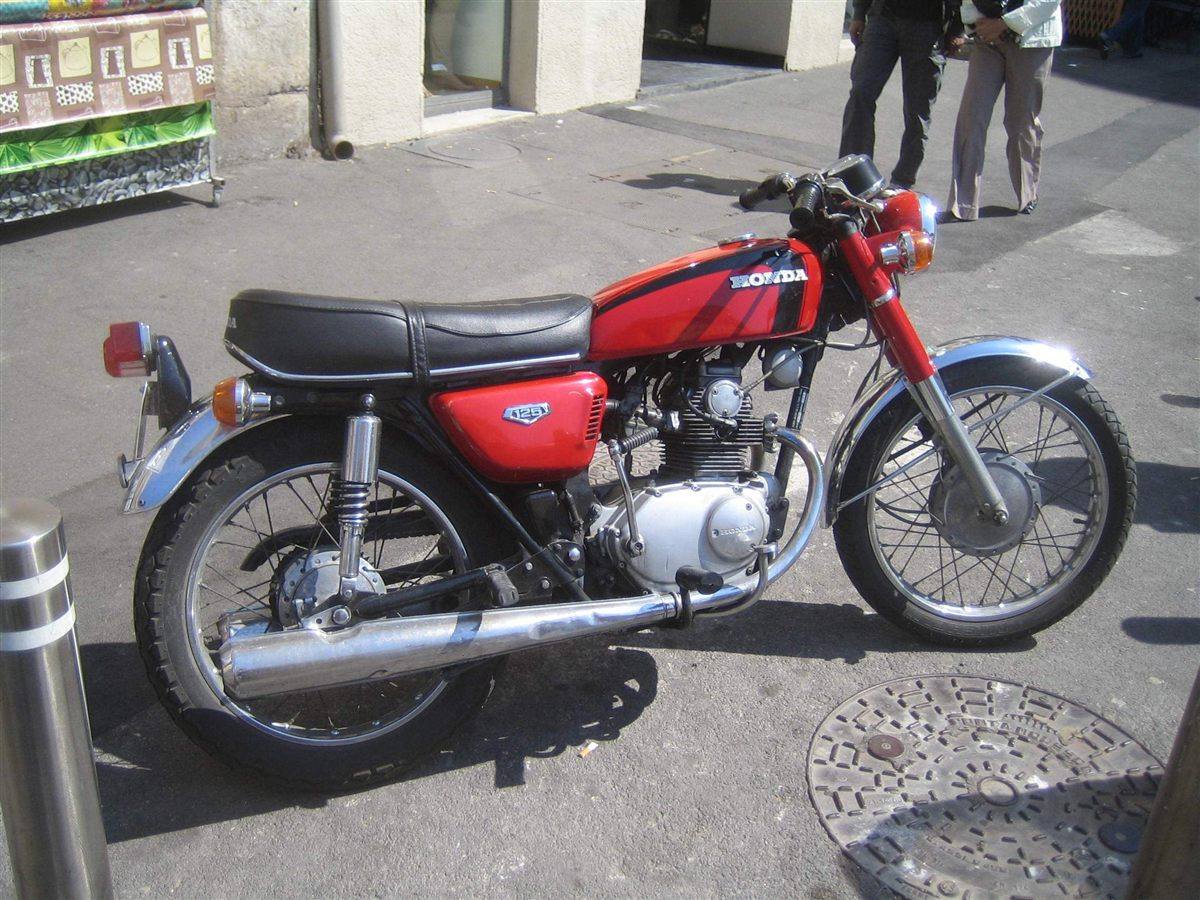

| MODEL | HONDA CB 125K 1967 - 1971 |
| Year | 1967 - 1971 |
| Engine Type | Four stroke, parallel twin, OHC |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 44 x 41 mm |
| Compression Ratio | 9.4:1 |
| Cooling System | Air cooled |
| Max Power | 10.9 kW / 15 hp @ 10500 rpm |
| Max Torque | 10.3 Nm / 1.05 kgf-m / 7.5 lb-ft @ 9000 rpm |
| Ignition | Battery and coil |
| Induction | 26 mm Keihin carburettor, manual choke |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork |
| Rear Suspension | Dual shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 133 kg / 293 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 2.50-18 |
| Rear Tyre | 2.75-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The early CB125 was a small, high-revving overhead-cam parallel twin descended from Honda's Benly sports 125s, offering a five-speed gearbox and 15 hp at 10,500 rpm. Drum brakes, 18-inch wheels and a kick starter kept it simple. It gave young riders a miniature version of the CB twin experience before Honda switched the CB125 to a single-cylinder engine in the early 1970s.
