| MODEL | HONDA CB 125T 1976 - 1977 |
| Year | 1976 - 1977 |
| Engine Type | Four stroke, parallel twin, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 44 x 41 mm |
| Compression Ratio | 9.4:1 |
| Cooling System | Air cooled |
| Max Power | 11.8 kW / 16 hp @ 11000 rpm |
| Max Torque | 9.8 Nm / 7 lb-ft @ 10500 rpm |
| Ignition | Battery & coil |
| Induction | 2x Keihin 22 mm slide type carburettors, manual choke |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-disc |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 31 mm oil-damped telescopic forks |
| Rear Suspension | Swing arm, twin coil-spring hydraulic shocks, 5-position preload |
| Front Brakes | Single 242 mm disc |
| Rear Brakes | 130 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 118 kg / 260 lbs |
| Wet Weight | 126 kg / 278 lbs |
| WHEEL SPECS | |
| Front Tyre | 2.75-18 |
| Rear Tyre | 3.00-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 11.5 Litres / 3.0 US gal |
| Fuel Consumption | — |
| Top Speed | 107.8 km/h / 67 mph |

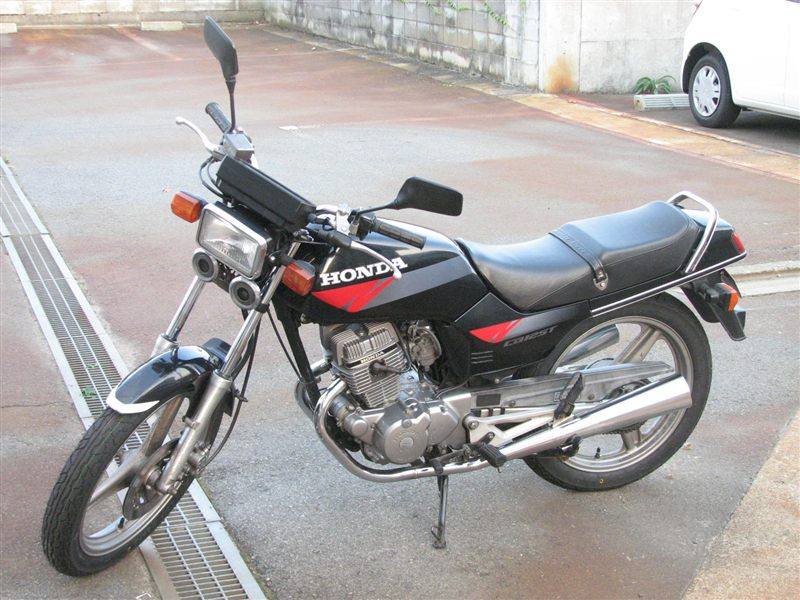

The CB 125T was Honda's small parallel-twin 125, a smoother and higher-revving alternative to the single-cylinder CB125S. Its 124 cc SOHC twin breathed through two small Keihin carburettors and drove a five-speed box, while a front disc and twin chromed exhausts gave it a big-bike look. It was popular as a learner bike in Europe.
