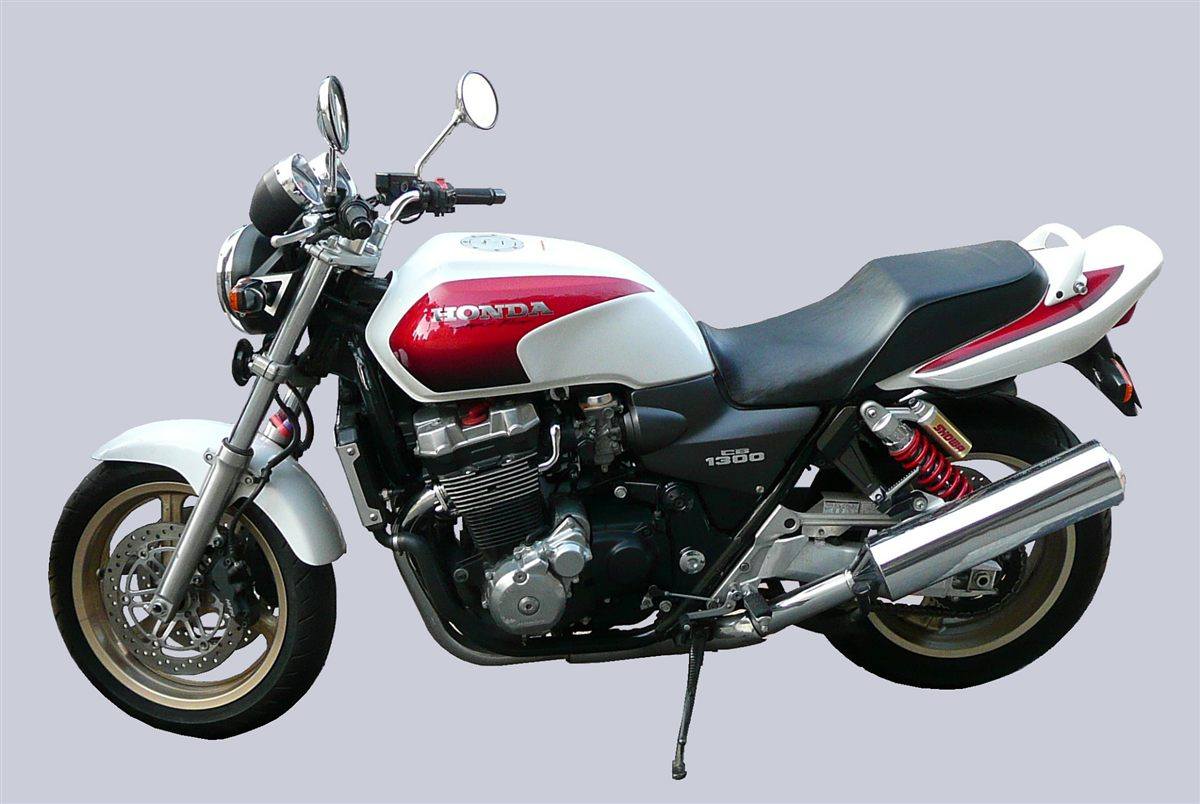

| MODEL | HONDA CB 1300 SUPER FOUR 1998 - 1999 |
| Year | 1998 - 1999 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1284 cc / 78.3 cu in |
| Bore X Stroke | 78 x 67.2 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 74 kW / 100 PS @ 7500 rpm |
| Max Torque | 12.2 kgf-m @ 5000 rpm |
| Ignition | Digital |
| Induction | Carburettors (VEPB type) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5-speed, constant mesh |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double cradle |
| Front Suspension | 43 mm cartridge-type telescopic fork |
| Rear Suspension | Swingarm with twin Showa shocks, Double Pro-Link layout |
| Front Brakes | 2x 310 mm discs, 6-piston Nissin calipers |
| Rear Brakes | Single 256 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2200 mm / 86.6 in |
| Overall Width | 780 mm / 30.7 in |
| Overall Height | 1165 mm / 45.9 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1545 mm / 60.8 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 249 kg / 549 lbs |
| Wet Weight | 273 kg / 602 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70 ZR17 |
| Rear Tyre | 190/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 21.6 km/l (60 km/h test) |
| Top Speed | — |
Launched in Japan in March 1998, the CB1300 Super Four replaced the CB1000 Super Four as Honda's big retro naked bike, using a carburetted 1284 cc liquid-cooled four derived from the X4 cruiser. This first SC40 generation is recognisable by the dummy cooling fins on the engine, and it was the first Honda road bike with Showa twin rear shocks in a Double Pro-Link arrangement. The 1999 update added adjustable suspension and a centre stand.
