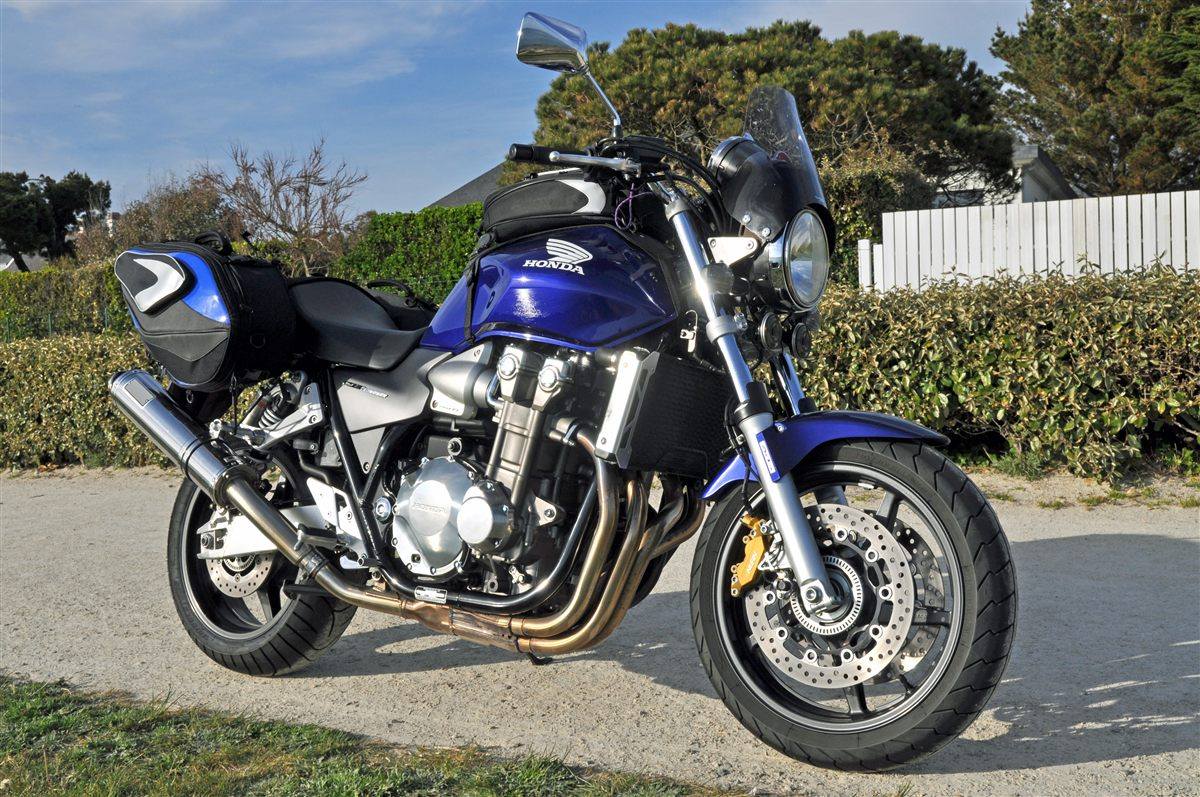

| MODEL | HONDA CB 1300 SUPER FOUR 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1284 cc / 78.3 cu in |
| Bore X Stroke | 78 x 67.2 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 74 kW / 100 PS @ 7000 rpm |
| Max Torque | 117 Nm / 11.9 kgf-m @ 5500 rpm |
| Ignition | Digital |
| Induction | PGM-FI fuel injection, 4 x 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5-speed, constant mesh |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double cradle |
| Front Suspension | 43 mm cartridge-type telescopic fork |
| Rear Suspension | Twin shocks, adjustable spring preload |
| Front Brakes | 2x 310 mm discs, 4-piston calipers, ABS optional |
| Rear Brakes | Single 256 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2220 mm / 87 in |
| Overall Width | 790 mm / 31 in |
| Overall Height | 1120 mm / 44 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1510 mm / 59.4 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 234 kg / 515 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2005 the Super Four was joined by the half-faired Super Bol d'Or (sold in Europe as the CB1300S), and an ABS option arrived. The naked bike itself received smoother low-speed throttle response, slimmer side covers and gold wheels; 2006 brought smoked indicator lenses, a red rear spring and new colours. Reviewers rated it a smooth, torquey and comfortable all-rounder.
