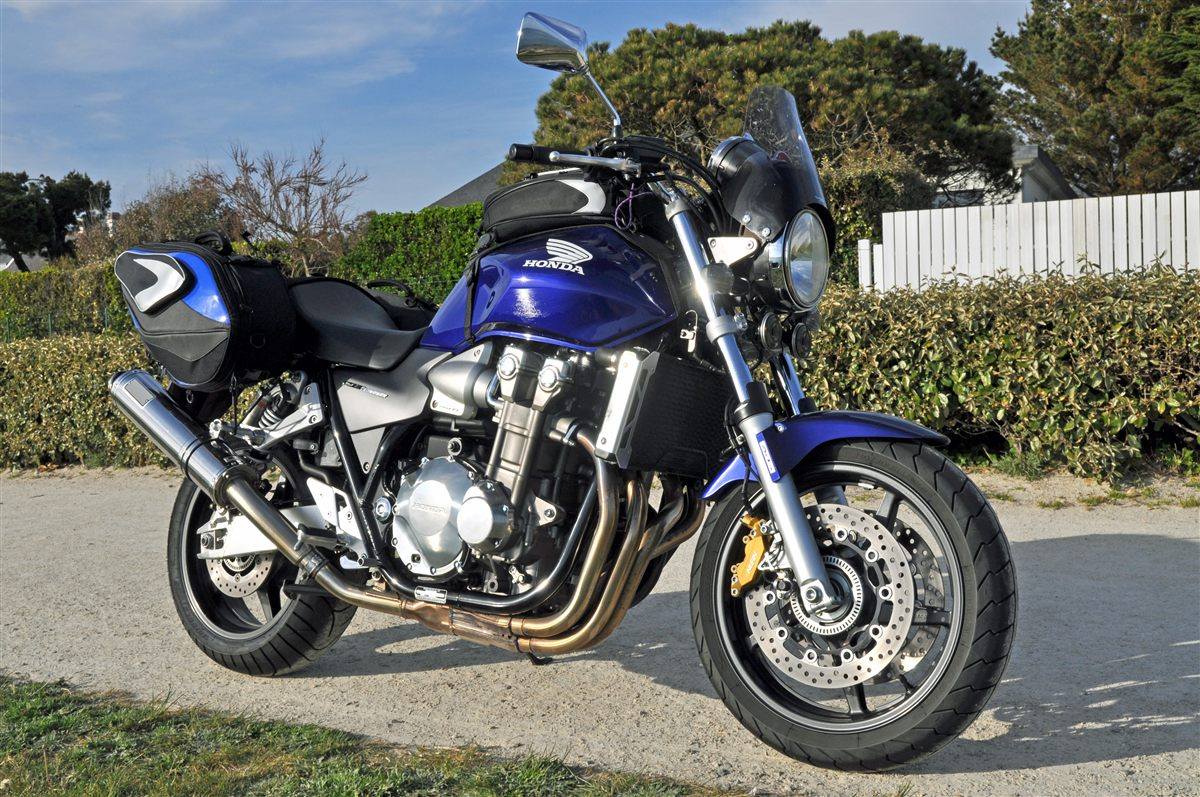

| MODEL | HONDA CB 1300 SUPER FOUR 2007 - 2008 |
| Year | 2007 - 2008 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1284 cc / 78.3 cu in |
| Bore X Stroke | 78 x 67.2 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 74 kW / 100 PS @ 7000 rpm (2007); 101 PS (2008) |
| Max Torque | 11.9 kgf-m @ 5500 rpm (2007); 11.6 kgf-m (2008) |
| Ignition | Digital |
| Induction | PGM-FI fuel injection, 4 x 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5-speed, constant mesh |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double cradle |
| Front Suspension | 43 mm cartridge-type telescopic fork |
| Rear Suspension | Twin shocks, adjustable spring preload |
| Front Brakes | 2x 310 mm discs, 4-piston calipers, ABS optional |
| Rear Brakes | Single 256 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2220 mm / 87 in |
| Overall Width | 790 mm / 31 in |
| Overall Height | 1120 mm / 44 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1510 mm / 59.4 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 234 kg / 515 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
2007 brought only a new seat stitching pattern and colours, while 2008 was a significant emissions update: catalysts built into the header pipes, rerouted exhaust and an automatic idle-air valve replacing the manual choke. The ECU retune raised output to 101 PS, making it one of the first Japanese-market bikes over the old 100 PS limit. The character remained that of a heavy, relaxed, low-rev-strong roadster.
