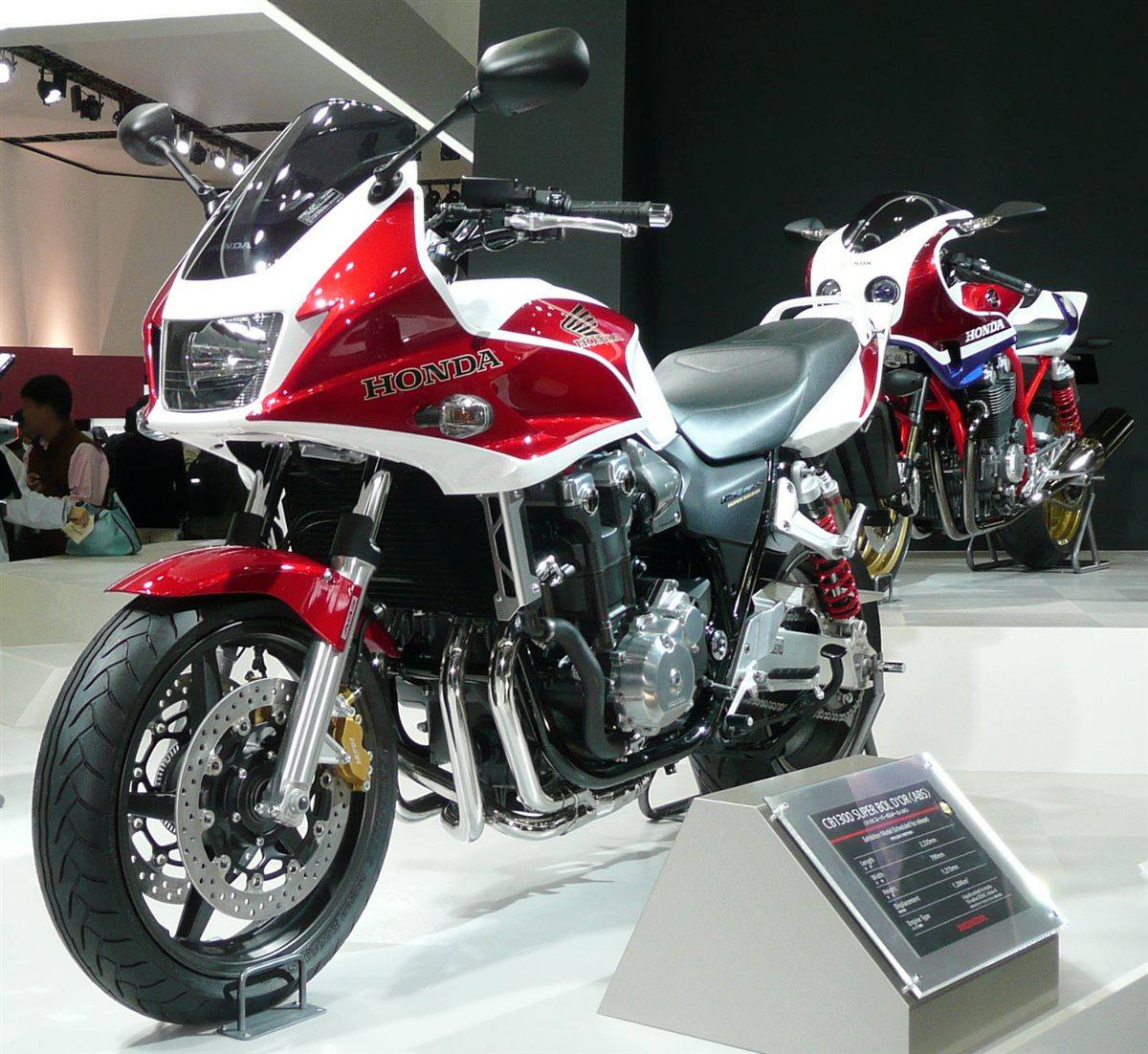

| MODEL | HONDA CB 1300S SUPER BOL D'OR 2013 - 2014 |
| Year | 2013 - 2014 |
| Engine Type | Four-stroke, transverse four-cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1284 cc / 78.3 cu in |
| Bore X Stroke | 78 x 67.2 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 83.2 kW / 114 hp @ 7500 rpm |
| Max Torque | 117 Nm / 86.3 lb-ft @ 6000 rpm |
| Ignition | Analogue CDI |
| Induction | PGM-FI fuel injection, 4 x 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5-speed |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel double-cradle |
| Front Suspension | 43 mm cartridge-type telescopic fork |
| Rear Suspension | Twin shocks with adjustable spring preload |
| Front Brakes | 2 x 310 mm discs, 4-piston calipers, ABS |
| Rear Brakes | Single 256 mm disc, 1-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2220 mm / 87 in |
| Overall Width | 790 mm / 31 in |
| Overall Height | 1120 mm / 44 in |
| Seat Height | 790 mm / 31.1 in (adjustable, lowest setting) |
| Wheelbase | 1510 mm / 59.4 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | — |
| Wet Weight | 261 kg / 575.4 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70 ZR17 |
| Rear Tyre | 190/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 US mpg |
| Top Speed | — |
The 2013 Super Bol d'Or was marked in Japan by a 400-unit 20th-anniversary edition in white and red with gold brake parts. In March 2014 Honda gave the bike its biggest update since launch: a six-speed gearbox, a smaller silencer, a redesigned half fairing with LED headlight, a closer handlebar and conventional ABS in place of the combined system. The Super Touring was absorbed into the range at the same time.
