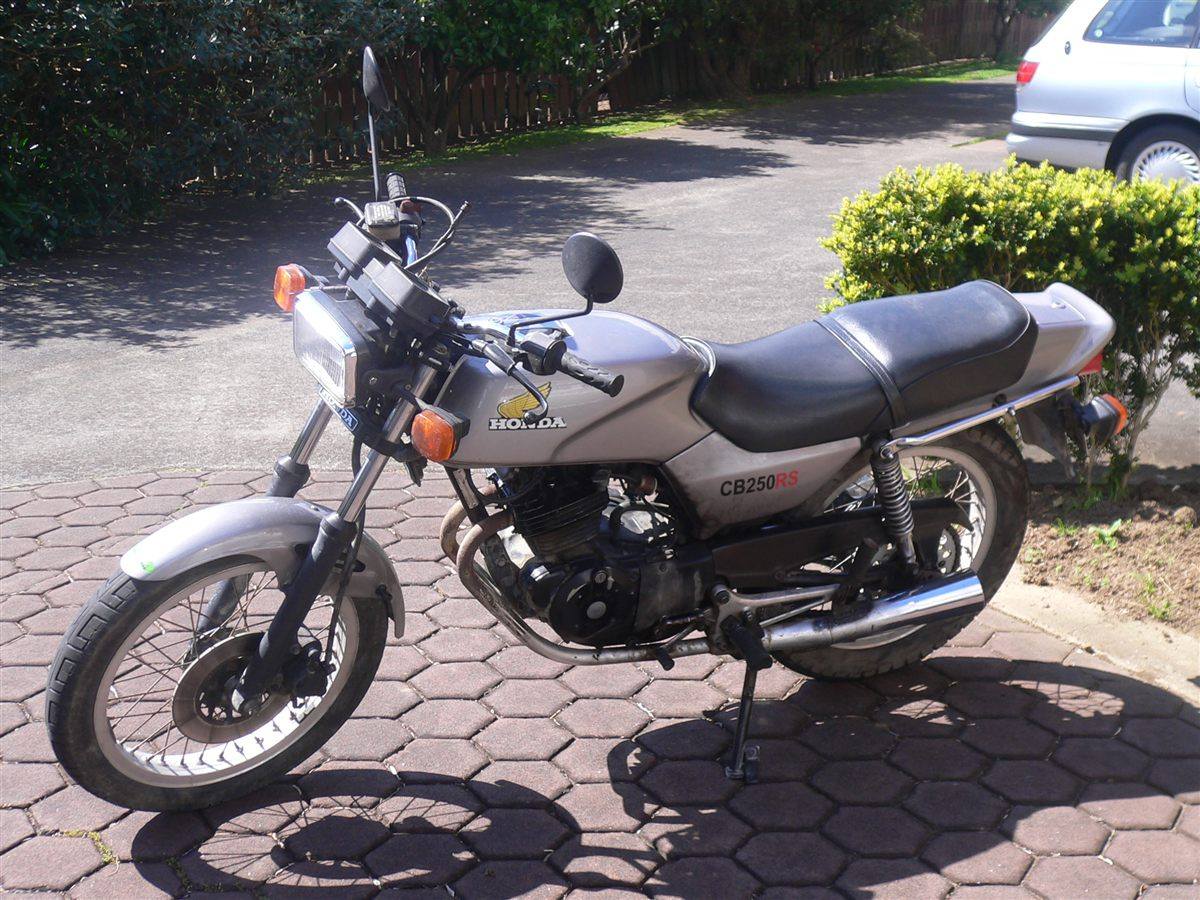

| MODEL | HONDA CB 250RS-Z 1982 - 1984 |
| Year | 1982 - 1984 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves, twin balancers |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 74 x 57.8 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 24.6 kW / 33 hp @ 8500 rpm |
| Max Torque | — |
| Ignition | CDI |
| Induction | 30 mm Keihin carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks, 120 mm / 4.7 in travel |
| Rear Suspension | Dual shocks, adjustable preload, 90 mm / 3.5 in travel |
| Front Brakes | Single 250 mm disc |
| Rear Brakes | 140 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 136 kg / 300 lbs |
| Wet Weight | 148 kg / 326.3 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-18 |
| Rear Tyre | 4.10-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.4 US gal |
| Fuel Consumption | 25 km/l / 4.0 L/100 km |
| Top Speed | 136 km/h / 84.5 mph |
The RS-Z (also sold as the RS-D or Deluxe) was the later, better-equipped CB250RS. Its main change was electric starting in place of the kick-only arrangement, along with different paintwork and a lockable seat hump. The four-valve balanced single, chassis and brakes carried over from the standard RS.
