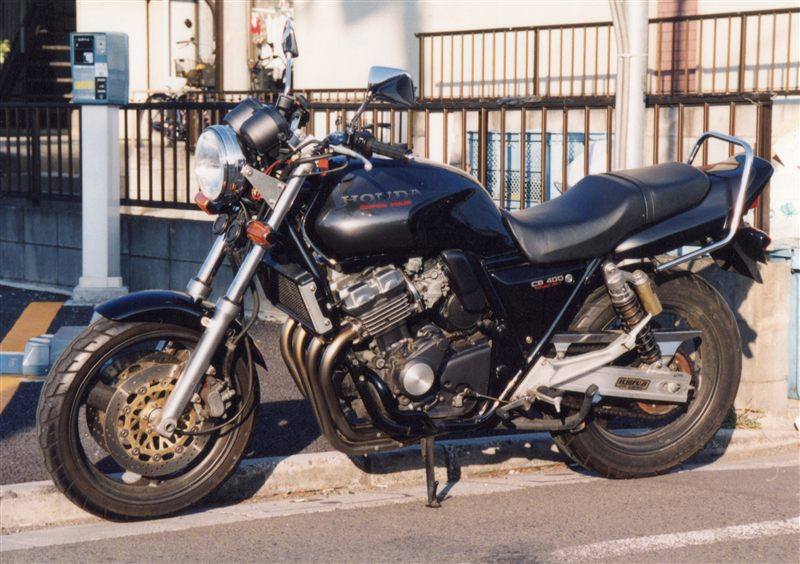

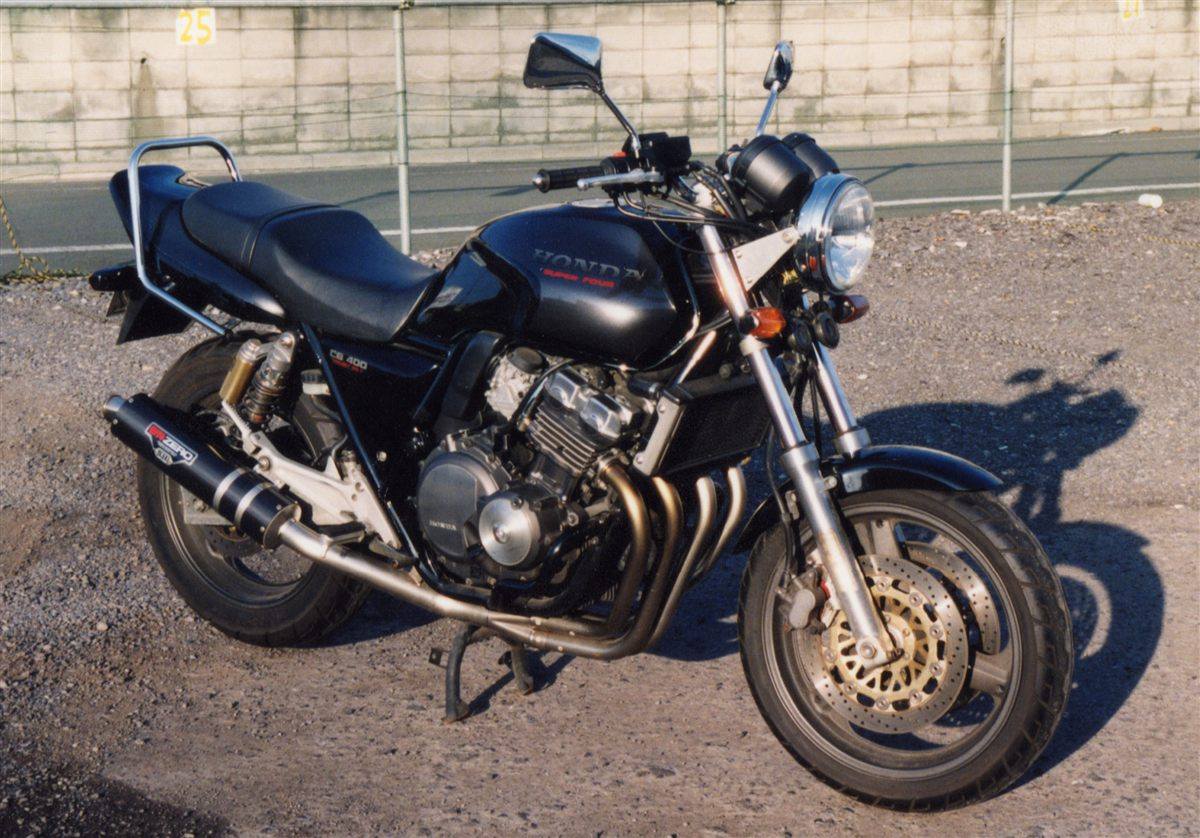

| MODEL | HONDA CB 400 SUPER FOUR 1992 - 1995 |
| Year | 1992 - 1995 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 399 cc / 24.3 cu in |
| Bore X Stroke | 55 x 42 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 39 kW / 53 PS @ 11000 rpm |
| Max Torque | 36 Nm / 27 lb-ft @ 10000 rpm |
| Ignition | Fully transistorized |
| Induction | 4x Keihin VP22 32 mm carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multi-plate, coil spring |
| Final Drive | 525 O-ring chain |
| CHASSIS SPECS | |
| Frame | Tubular steel, double cradle |
| Front Suspension | 41 mm telescopic forks |
| Rear Suspension | — |
| Front Brakes | 2x 296 mm floating discs |
| Rear Brakes | Single 240 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2085 mm / 82.1 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | 172 - 173 kg / 379 - 381 lbs |
| Wet Weight | 192 - 193 kg / 423 - 425 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 |
| Rear Tyre | 140/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Shown at the 1991 Tokyo Motor Show as a 400 cc companion to the CB1000 Super Four, the CB400SF went on sale in Japan in 1992 using a reworked CB-1 engine. The cylinders were tilted back, carburettors went from downdraft to sidedraft and the cam drive switched from gears to chain, with a lower 12,500 rpm redline. For 1994 it got revised ignition timing, a quieter silencer, a new engine mount and a new instrument cluster, and 1995 brought extra cylinder fins and the special Version R.
