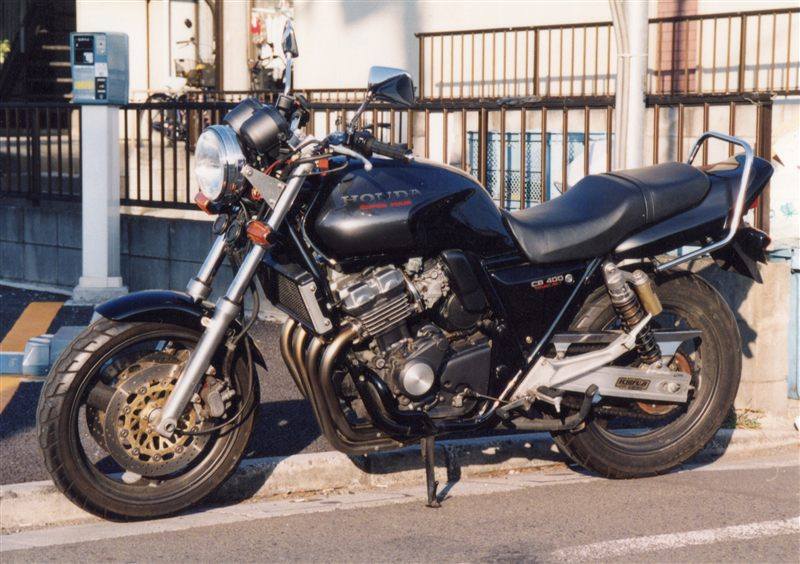

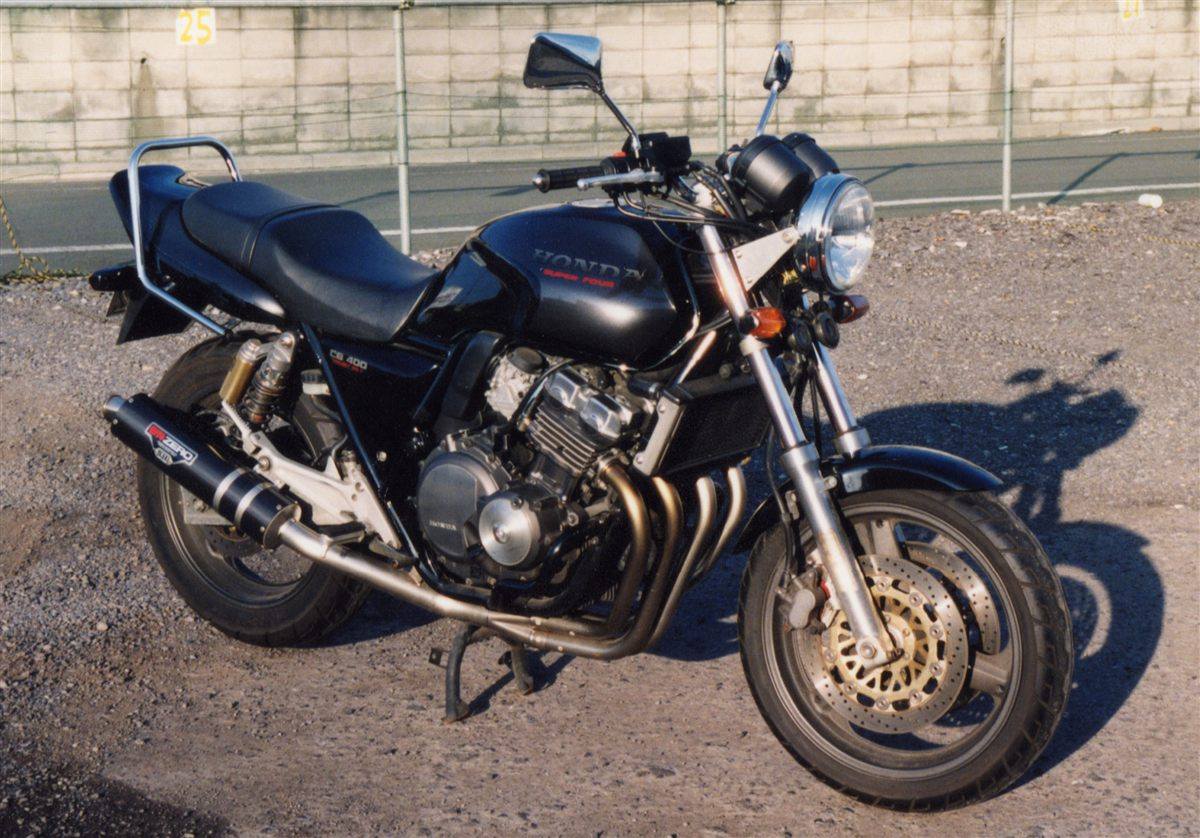

| MODEL | HONDA CB 400 SUPER FOUR 1996 - 1998 |
| Year | 1996 - 1998 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 16 valves |
| Displacement / Capacity | 399 cc / 24.3 cu in |
| Bore X Stroke | 55 x 42 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 39 kW / 53 PS @ 11000 rpm |
| Max Torque | 36 Nm / 3.7 kgf-m @ 10000 rpm |
| Ignition | Full transistor |
| Induction | 4x Keihin VP22 32 mm carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed, constant mesh |
| Clutch | Wet, multi-plate, coil spring |
| Final Drive | 525 O-ring chain |
| CHASSIS SPECS | |
| Frame | Tubular steel double cradle |
| Front Suspension | 41 mm telescopic forks |
| Rear Suspension | — |
| Front Brakes | 2x 296 mm floating discs, 4 piston calipers |
| Rear Brakes | Single 240 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2085 mm / 82.1 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | 173 kg (1996) / 174 kg (1997 - 1998) |
| Wet Weight | 193 kg (1996) / 194 kg (1997 - 1998) |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 54H |
| Rear Tyre | 140/70-17 66H |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.75 US gal |
| Fuel Consumption | 34.7 km/L |
| Top Speed | — |
The late years of the original carburetted CB400 Super Four, Honda's Japan-market four-cylinder 400 styled after the big 1970s CBs. For 1996 the front brakes were revised with four-piston calipers, and the Version S variant added premium brakes and Showa suspension; 1997 brought new carburettor funnels and muffler. A 500-unit 50th Anniversary Version S with special colours appeared in 1998.
