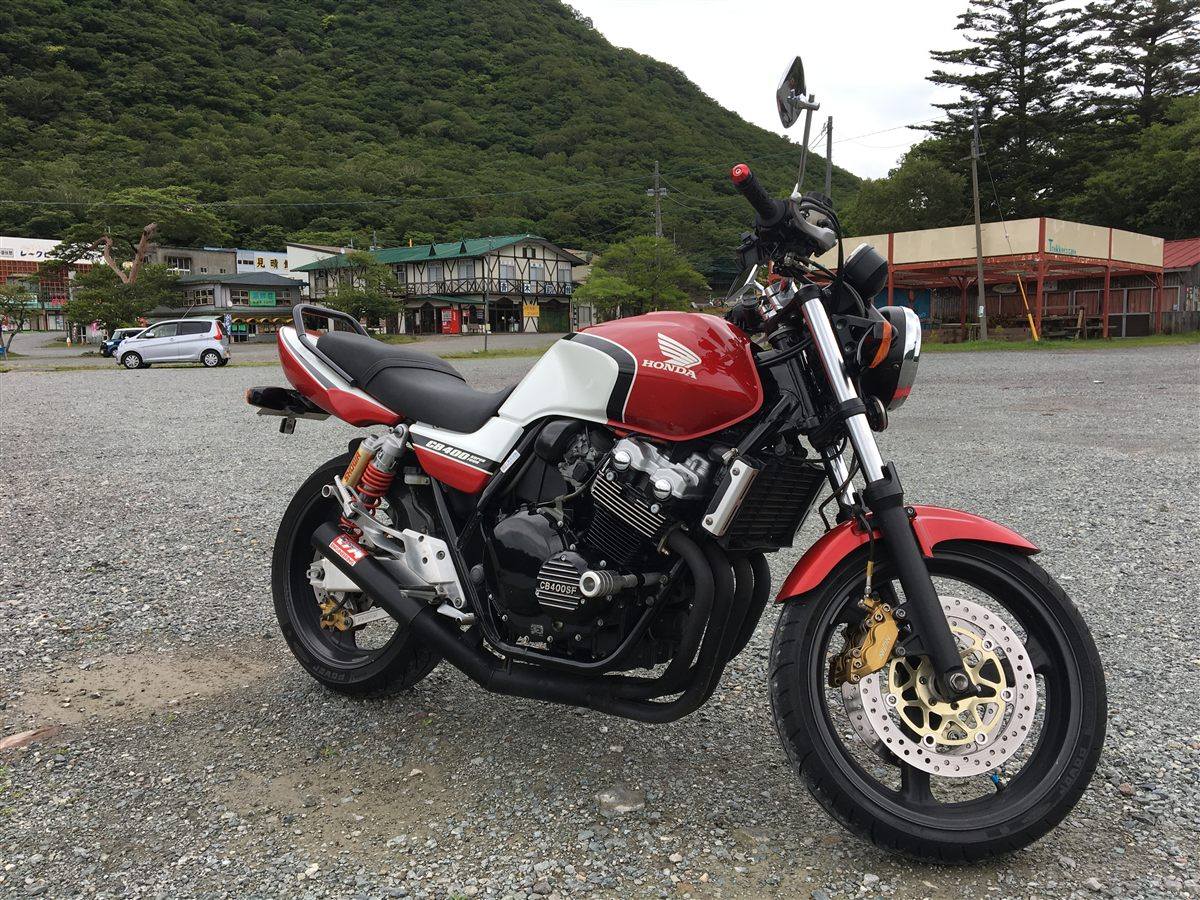

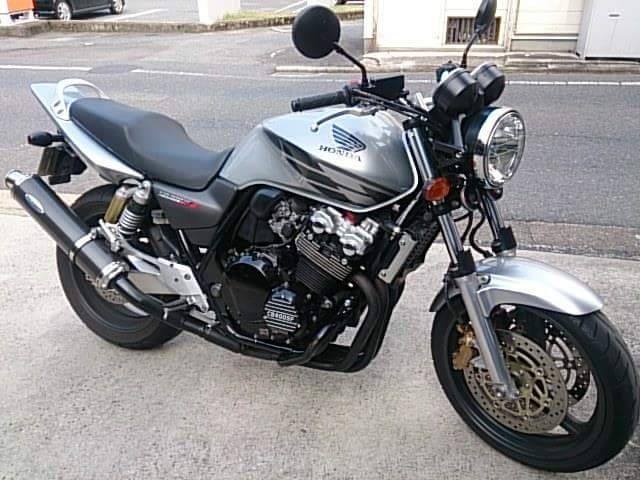

| MODEL | HONDA CB 400 SUPER FOUR 2003 - 2005 |
| Year | 2003 - 2005 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, HYPER VTEC |
| Displacement / Capacity | 399 cc / 24.3 cu in |
| Bore X Stroke | 55 x 42 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 39 kW / 53 PS @ 11000 rpm |
| Max Torque | 38 Nm / 28 lb-ft @ 9500 rpm |
| Ignition | Full transistor, with ignition advance |
| Induction | 4x Keihin VP04B 32 mm carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed, constant mesh |
| Clutch | Wet, multi-plate, coil spring |
| Final Drive | 525 O-ring chain |
| CHASSIS SPECS | |
| Frame | Tubular steel double cradle |
| Front Suspension | 41 mm telescopic forks |
| Rear Suspension | — |
| Front Brakes | 2x 296 mm floating discs, 4 piston calipers |
| Rear Brakes | — |
| DIMENSION SPECS | |
| Overall Length | 2050 mm (2003) / 2040 mm (2004 - 2005) |
| Overall Width | 725 mm / 28.5 in |
| Overall Height | 1070 mm / 42.1 in |
| Seat Height | 760 mm (2003) / 755 mm (2004 - 2005) |
| Wheelbase | 1410 mm / 55.5 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 169 kg (2003) / 170 kg (2004 - 2005) |
| Wet Weight | 189 kg (2003) / 190 kg (2004 - 2005) |
| WHEEL SPECS | |
| Front Tyre | 120/60 ZR17 55W |
| Rear Tyre | 160/60 ZR17 69W |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.75 US gal |
| Fuel Consumption | 37.0 km/L (60 km/h constant speed) |
| Top Speed | — |
Carburetted HYPER VTEC years: 2003 bikes are SPEC II, and from the 2004 model the SPEC III changed VTEC so it only switches at 6,750 rpm in sixth gear (6,300 rpm in lower gears). SPEC III also brought a lower seat, new headlight, LED tail-light, reshaped tank and rear cowl. For 2005 an adjustable front preload and new seat foam were added, and the half-faired Super Bol d'Or joined the range.
