| MODEL | HONDA CB 400F FOUR 1974 |
| Year | 1974 |
| Engine Type | Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 408 cc / 24.8 cu in |
| Bore X Stroke | 51 x 50 mm |
| Compression Ratio | 9.4:1 |
| Cooling System | Air cooled |
| Max Power | 27.5 kW / 37 hp @ 8500 rpm |
| Max Torque | 32.5 Nm / 24 lb-ft @ 7500 rpm |
| Ignition | Battery and coil |
| Induction | 4 x 20 mm carburettors |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel single-downtube cradle |
| Front Suspension | Telescopic fork |
| Rear Suspension | Twin shocks, preload adjustable |
| Front Brakes | Single 267 mm disc |
| Rear Brakes | 160 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2050 mm / 80.7 in |
| Overall Width | 705 mm / 27.8 in |
| Overall Height | 1040 mm / 40.9 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1355 mm / 53.3 in |
| Ground Clearance | 150 mm / 5.9 in |
| Dry Weight | — |
| Wet Weight | 185 kg / 407 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-18 |
| Rear Tyre | 3.50-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | 49.7 mpg |
| Top Speed | 165 km/h / 103 mph |

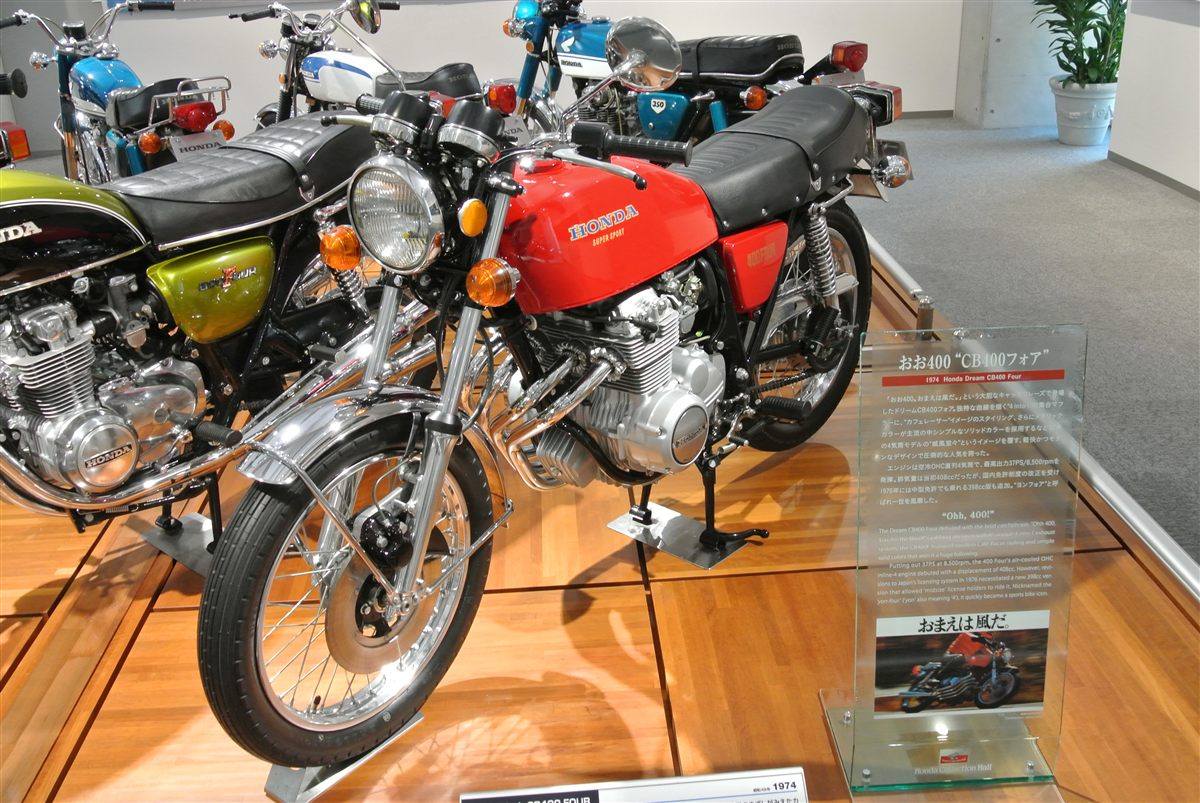

The CB400F Four appeared at the end of 1974 as a sportier, enlarged replacement for the CB350 Four, with a 408 cc engine, six-speed gearbox and cafe-racer styling built around its swooping four-into-one exhaust. Flat bars and rear-set pegs gave it a racy stance, and road testers praised its smooth, free-revving engine.
