| MODEL | HONDA CB 400SS SUPER SPORT 2002 - 2006 |
| Year | 2002 - 2006 |
| Engine Type | Four stroke, single cylinder, OHC, 4 valves |
| Displacement / Capacity | 397 cc / 24.2 cu in |
| Bore X Stroke | 85 x 70 mm |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Max Power | 21.2 kW / 29 hp @ 7000 rpm |
| Max Torque | 31 Nm / 22.9 lb-ft @ 5500 rpm |
| Ignition | CDI |
| Induction | Carburettor |
| Start System | Kick & electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Dual shocks |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | 2165 mm / 85.2 in |
| Overall Width | 780 mm / 30.7 in |
| Overall Height | 1125 mm / 44.3 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1405 mm / 55.3 in |
| Ground Clearance | 160 mm / 6.3 in |
| Dry Weight | 139 kg / 306.4 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 110/90-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 11 Litres / 2.9 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Photo: Z250R, CC BY-SA 4.0, via Wikimedia Commons

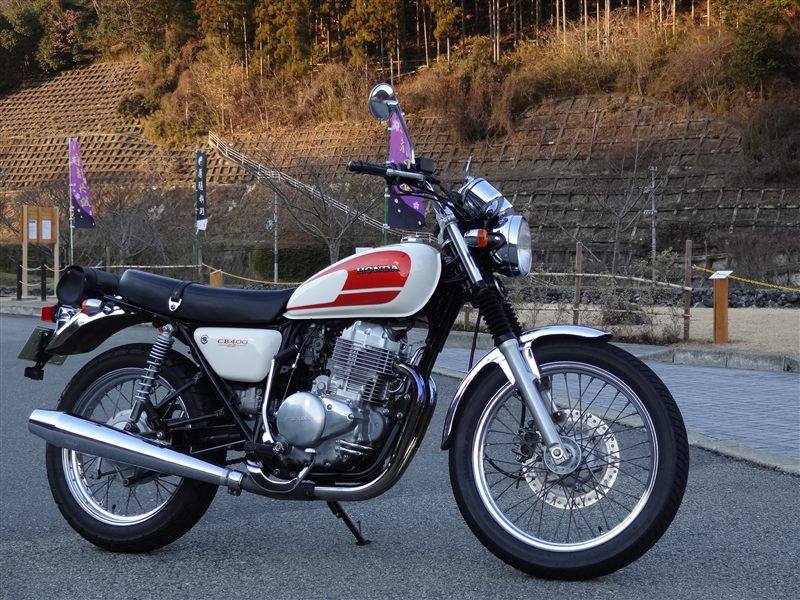

Photo: Z250R, CC BY-SA 4.0, via Wikimedia Commons
The CB400SS was a Japan-market retro single built around a 397 cc air-cooled four-valve engine, styled after classic British-type roadsters with a 19-inch front wheel and twin rear shocks. It kept a kickstarter alongside the electric start for character. Light and simple, it appealed to riders wanting an easy-going classic-look bike rather than performance.
