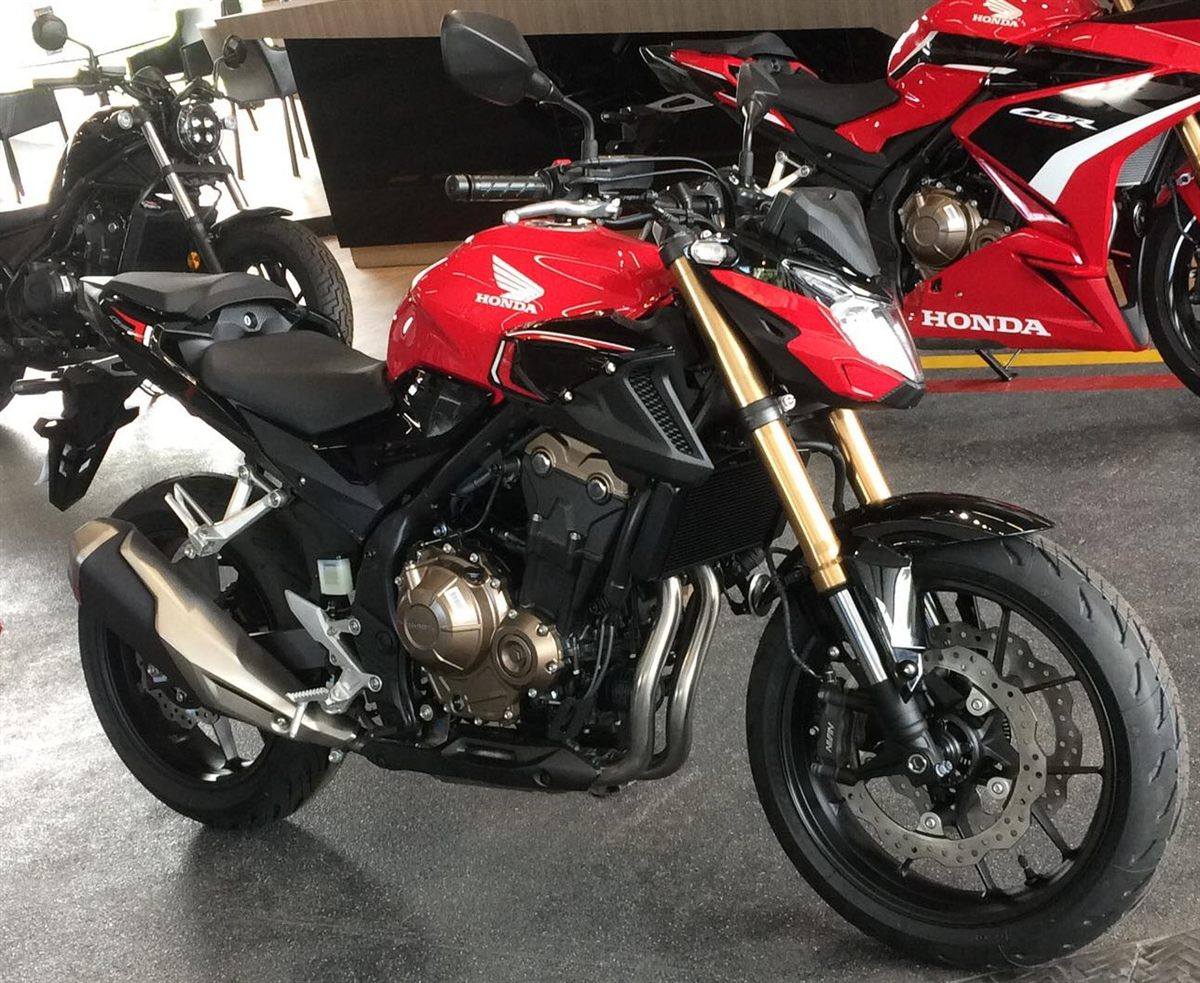

| MODEL | HONDA CB 500F 2019 - 2020 |
| Year | 2019 - 2020 |
| Engine Type | Four stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 471 cc / 28.7 cu in |
| Bore X Stroke | 67.0 x 66.8 mm |
| Compression Ratio | 10.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 35 kW / 46.9 hp @ 8500 rpm |
| Max Torque | 43 Nm / 31.7 lb-ft @ 6500 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Induction | PGM-FI fuel injection, 34 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Assist/slipper clutch |
| Final Drive | Sealed 520 chain |
| CHASSIS SPECS | |
| Frame | Steel tube diamond (backbone) frame |
| Front Suspension | 41 mm telescopic fork, preload adjustable, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link monoshock, 9-stage preload adjuster, steel square-section swingarm, 105 mm / 4.1 in travel |
| Front Brakes | Single 320 mm wave disc, 2-piston caliper, 2-channel ABS |
| Rear Brakes | Single 240 mm wave disc, 1-piston caliper, 2-channel ABS |
| DIMENSION SPECS | |
| Overall Length | 2080 mm / 81.9 in |
| Overall Width | 790 mm / 31.1 in |
| Overall Height | 1060 mm / 41.7 in |
| Seat Height | 785 mm / 30.9 in |
| Wheelbase | 1410 mm / 55.5 in |
| Ground Clearance | 145 mm / 5.7 in |
| Dry Weight | — |
| Wet Weight | 189 kg / 416.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17.1 Litres / 4.5 US gal |
| Fuel Consumption | 28.6 km/litre / 67 US mpg |
| Top Speed | — |
A significant update with new, more aggressive bodywork, full LED lighting and a new LCD dash with gear indicator. Engine changes brought more midrange from new injectors and a revised exhaust, while an assist/slipper clutch, a new rear shock, a bigger 17.1-litre tank and standard ABS in most markets rounded out the package.
