| MODEL | HONDA CB 550F SUPER SPORT 1977 |
| Year | 1977 |
| Engine Type | Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 544 cc / 33.1 cu in |
| Bore X Stroke | 58.5 x 50.6 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 36.5 kW / 50 hp @ 8500 rpm |
| Max Torque | 43.1 Nm / 31.8 lb-ft @ 7400 rpm |
| Ignition | Battery and coil, contact points |
| Induction | 4x 22 mm Keihin carburettors |
| Start System | Electric & kick |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel double cradle |
| Front Suspension | 35 mm telescopic hydraulic fork |
| Rear Suspension | Dual shocks, adjustable preload |
| Front Brakes | Single 270 mm disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1405 mm / 55.3 in |
| Ground Clearance | — |
| Dry Weight | 191 kg / 421 lbs |
| Wet Weight | 206 kg / 454 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.25-19 |
| Rear Tyre | 3.75-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | 41 mpg |
| Top Speed | 164 km/h / 102 mph |
Photo: BMan1113VR at English Wikipedia, CC BY 2.5, via Wikimedia Commons
Photo: eigene Arbeit (own work, uploader not named), CC BY 3.0, via Wikimedia Commons

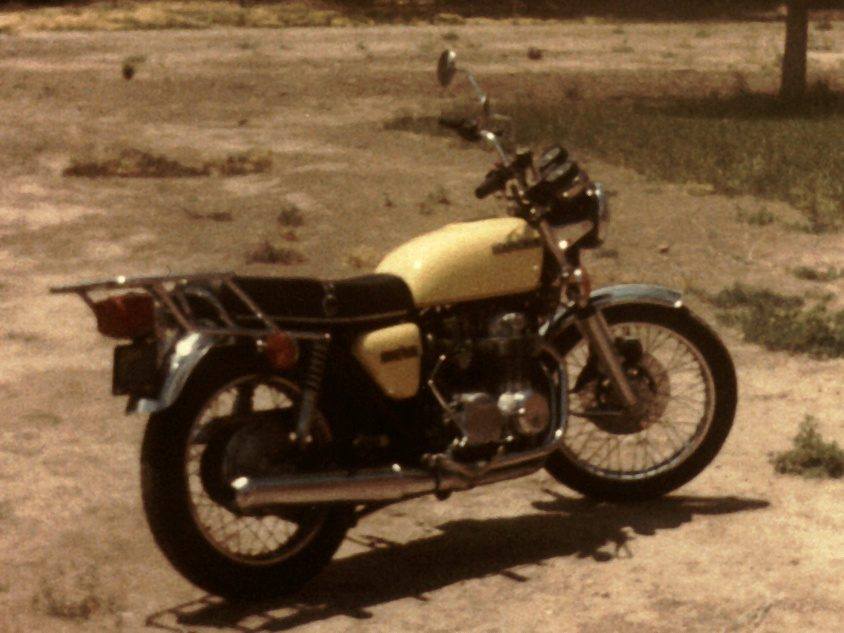

The final-year CB550F Super Sport kept the four-into-one exhaust and sporty riding position of the earlier F, with only cosmetic detail changes such as revised tank graphics and the deletion of fork gaiters. Period comparison tests rated it the strongest of the middleweight sport bikes, though also the priciest.
