| MODEL | HONDA CB 650F 2015 |
| Year | 2015 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 649 cc / 39.6 cu in |
| Bore X Stroke | 67 x 46 mm |
| Compression Ratio | 11.4:1 |
| Cooling System | Liquid cooled |
| Max Power | 63.9 kW / 85.8 hp @ 11000 rpm |
| Max Torque | 62.9 Nm / 46.4 lb-ft @ 8000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | #525 O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | Steel diamond twin spar |
| Front Suspension | 41 mm telescopic fork, 120 mm / 4.7 in travel |
| Rear Suspension | Monoshock with adjustable preload, 128 mm / 5.0 in travel |
| Front Brakes | 2 x 320 mm discs, 2-piston calipers |
| Rear Brakes | Single 240 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2110 mm / 83 in |
| Overall Width | 775 mm / 30.5 in |
| Overall Height | 1120 mm / 44.1 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | 150 mm / 5.9 in |
| Dry Weight | — |
| Wet Weight | 208 kg / 458.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17.3 Litres / 4.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |

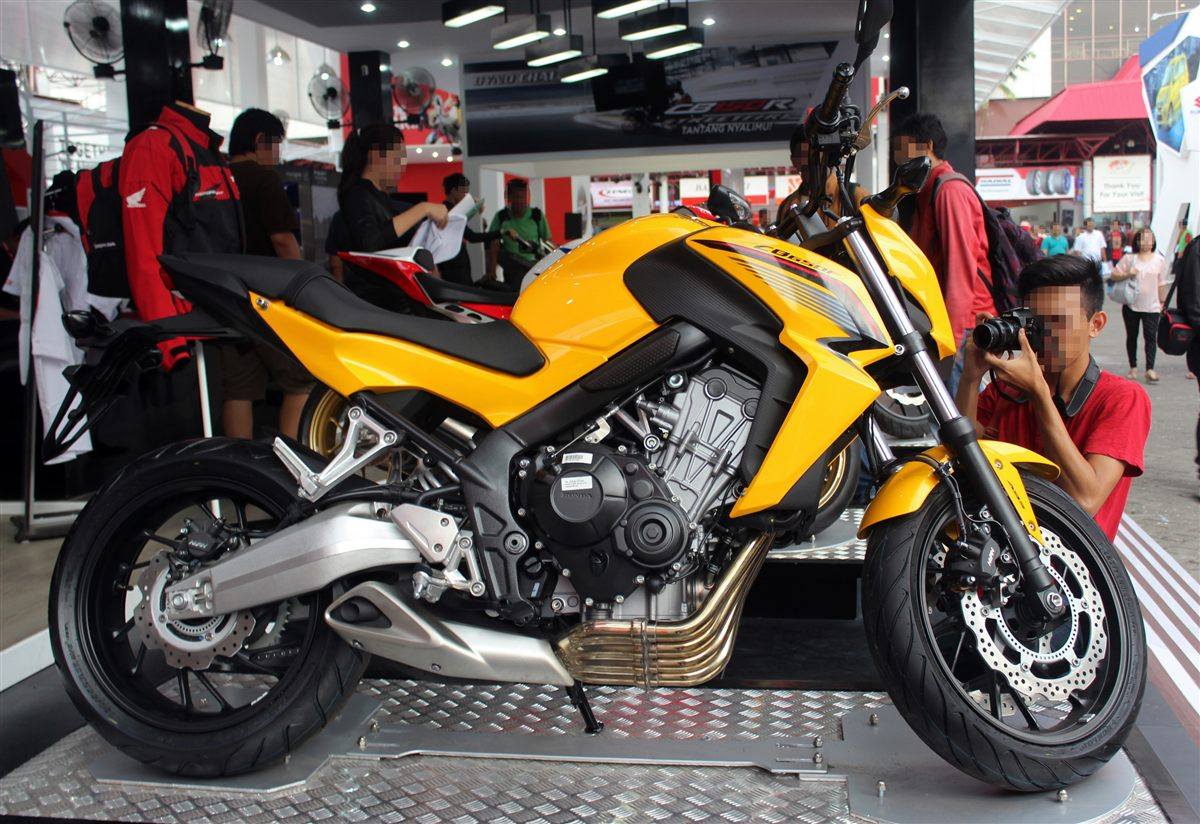

Photo: TheMalsa, CC BY-SA 3.0, via Wikimedia Commons
Photo: Cjp24, CC BY-SA 4.0, via Wikimedia Commons
Second year of the CB650F with no mechanical changes: the same 649 cc DOHC four tuned for mid-range, twin-spar steel frame and conventional 41 mm fork. It remained an easy, practical middleweight naked for commuting and weekend riding.
