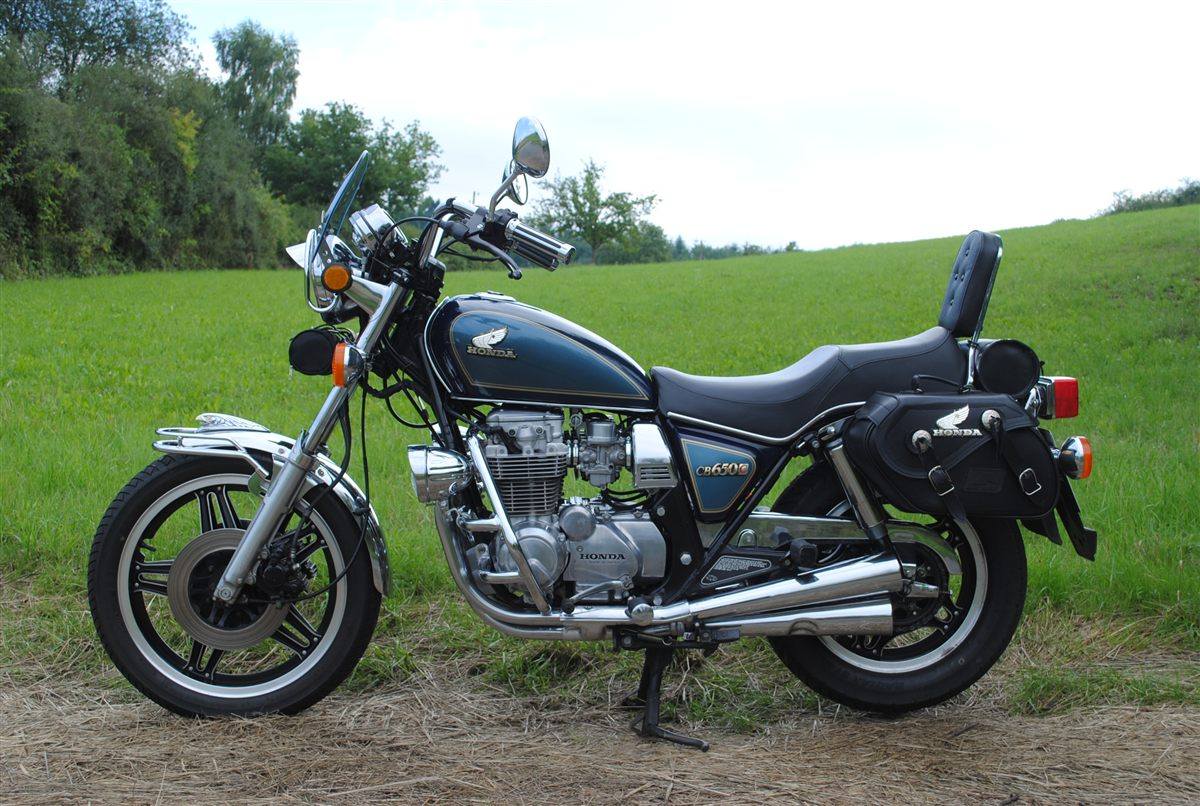

| MODEL | HONDA CB 650LC 1982 |
| Year | 1982 |
| Engine Type | Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 626.8 cc / 38.2 cu in |
| Bore X Stroke | 59.8 x 55.8 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 46.9 kW / 63 hp @ 9000 rpm |
| Max Torque | 51.5 Nm / 38 lb-ft @ 8000 rpm |
| Ignition | Transistorised |
| Induction | 4 x 26 mm Keihin carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Centre-axle coil spring forks, 135 mm / 5.3 in travel |
| Rear Suspension | Dual Showa dampers, adjustable spring preload, 91 mm / 3.5 in travel |
| Front Brakes | 2 x 275 mm discs, 2-piston calipers |
| Rear Brakes | 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 760 mm / 30.1 in |
| Wheelbase | 1480 mm / 58.3 in |
| Ground Clearance | — |
| Dry Weight | 220 kg / 485 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.50-19 |
| Rear Tyre | 130/90-16 67S |
| FUEL SYSTEM | |
| Fuel Capacity | 13.5 Litres / 3.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The LC ('Luxury Custom') was the 1982 evolution of the CB650 Custom, keeping the 627 cc SOHC four and custom styling but adding twin front discs. It was the last of the chain-drive SOHC custom 650s before the DOHC Nighthawk took over.
