| MODEL | HONDA CB 750F1 SUPER SPORT 1975 - 1976 |
| Year | 1975 - 1976 |
| Engine Type | Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 736 cc / 44.9 cu in |
| Bore X Stroke | 61 x 63 mm / 2.4 x 2.5 in |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | 51.4 kW / 69 hp @ 8000 rpm |
| Max Torque | 6.1 kgf-m / 44.1 lb-ft @ 7500 rpm |
| Ignition | Battery, induction coil |
| Induction | 4 x 28 mm Keihin carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swingarm, dual shocks |
| Front Brakes | Single 296 mm disc |
| Rear Brakes | Single 296 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 810 mm / 31.8 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 218 kg / 480 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.25-19 |
| Rear Tyre | 4.00-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 12.2 Litres / 3.2 US gal |
| Fuel Consumption | 43 US mpg |
| Top Speed | — |

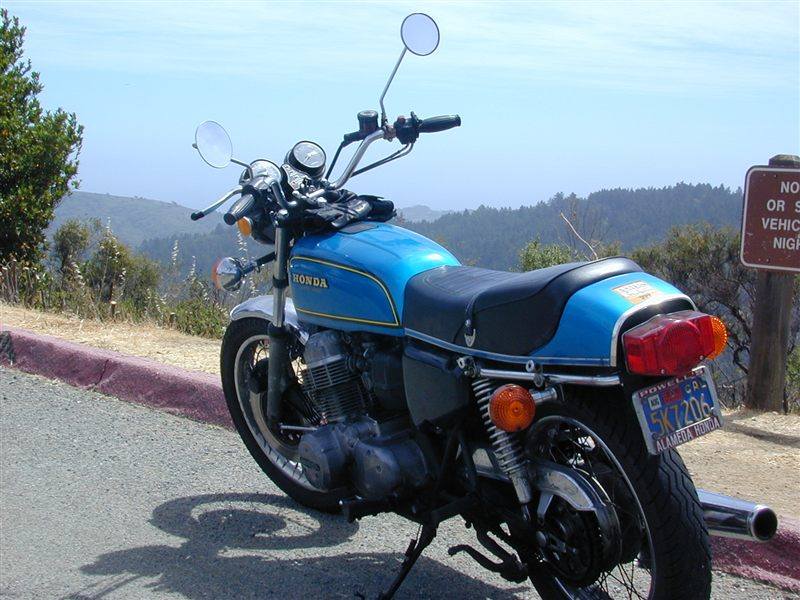

Photo: Daniel Wabyick, CC BY 2.0, via Wikimedia Commons
Photo: TaurusEmerald, CC BY-SA 4.0, via Wikimedia Commons
The Super Sport was the sporting take on the single-cam CB750, with café-racer styling, a four-into-one exhaust, a rear disc brake and revised steering geometry. The engine got a lighter crank and flywheel. It was praised for stability and strong performance, though its riding position and grounding exhaust drew complaints.
