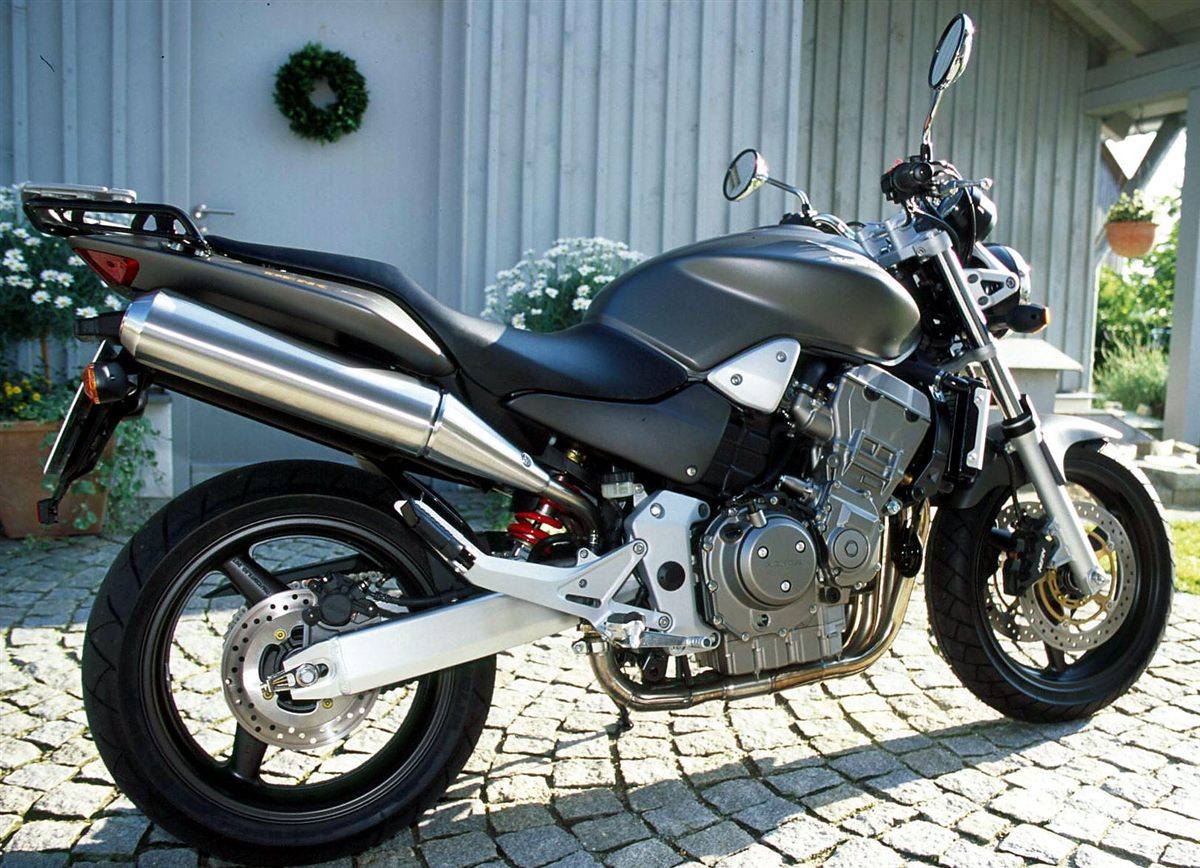

| MODEL | HONDA CB 900 F HORNET (CB 919) 2002 |
| Year | 2002 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 919 cc / 56.0 cu in |
| Bore X Stroke | 71 x 58 mm |
| Compression Ratio | 10.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 81 kW / 108.6 hp @ 9000 rpm |
| Max Torque | 92 Nm / 67.1 lb-ft @ 6500 rpm |
| Ignition | Computer-controlled digital transistorized |
| Induction | Electronic fuel injection, 4x 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel square-section mono-backbone, engine as stressed member |
| Front Suspension | 43 mm cartridge-type telescopic fork, 120 mm / 4.7 in travel |
| Rear Suspension | Aluminium swingarm, single shock with 7-step adjustable preload, 128 mm / 5.0 in travel |
| Front Brakes | 2x 296 mm discs, 4 piston calipers |
| Rear Brakes | Single 240 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2125 mm / 83.6 in |
| Overall Width | 750 mm / 29.5 in |
| Overall Height | 1085 mm / 42.7 in |
| Seat Height | 795 mm / 31.3 in |
| Wheelbase | 1460 mm / 57.5 in |
| Ground Clearance | 145 mm / 5.7 in |
| Dry Weight | 194 kg / 427.6 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 18.1 km/l |
| Top Speed | 235.3 km/h |
Photo: Aconcagua, CC BY-SA 3.0, via Wikimedia Commons
Photo: Vostei at German Wikipedia, Public domain, via Wikimedia Commons
The 2002 CB900F Hornet was the launch year of Honda's big naked Hornet, sold as the Hornet 900 in Europe and the 919 in North America. It puts a fuel-injected, midrange-tuned version of the CBR900RR FireBlade engine into a plain steel backbone frame, with styling close to the Hornet 600 apart from the twin under-seat silencers. Without a fairing it is aimed at town riding and back roads rather than motorway touring.
