| MODEL | HONDA CB 900 F HORNET (CB 919) 2004 |
| Year | 2004 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 919 cc / 56.0 cu in |
| Bore X Stroke | 71 x 58 mm |
| Compression Ratio | 10.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 81 kW / 108.6 hp @ 9000 rpm |
| Max Torque | 92 Nm / 67.1 lb-ft @ 6500 rpm |
| Ignition | Computer-controlled digital transistorized |
| Induction | Electronic fuel injection, 4x 36 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel square-section mono-backbone, engine as stressed member |
| Front Suspension | 43 mm cartridge-type telescopic fork, adjustable, 120 mm / 4.7 in travel |
| Rear Suspension | Aluminium swingarm, single shock with 7-step adjustable preload and adjustable rebound damping, 128 mm / 5.0 in travel |
| Front Brakes | 2x 296 mm discs, 4 piston calipers |
| Rear Brakes | Single 240 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2125 mm / 83.6 in |
| Overall Width | 750 mm / 29.5 in |
| Overall Height | 1085 mm / 42.7 in |
| Seat Height | 795 mm / 31.3 in |
| Wheelbase | 1460 mm / 57.5 in |
| Ground Clearance | 145 mm / 5.7 in |
| Dry Weight | 194 kg / 427.6 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 18.1 km/l |
| Top Speed | 235.3 km/h |

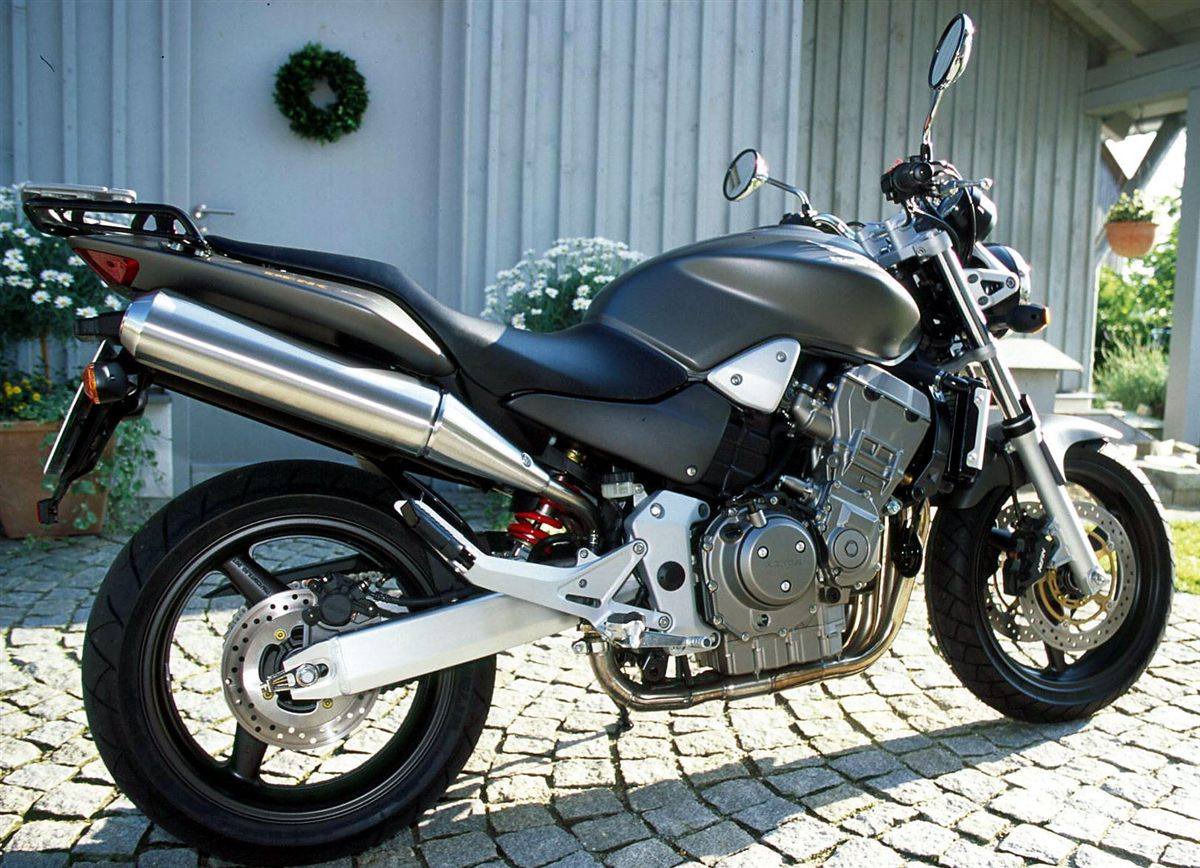

Photo: Aconcagua, CC BY-SA 3.0, via Wikimedia Commons

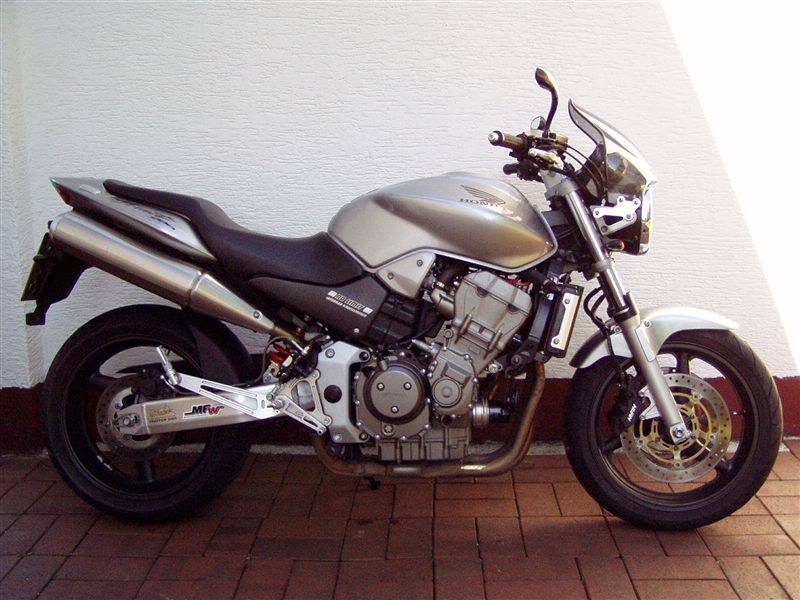

Photo: Vostei at German Wikipedia, Public domain, via Wikimedia Commons
The 2004 Hornet 900 / 919 gained adjustable front fork damping and rear rebound adjustment, addressing the main criticism of the earlier bikes. In the US it was finished in metallic black with black engine covers and gold brake calipers. The engine and steel backbone chassis were otherwise carried over.
