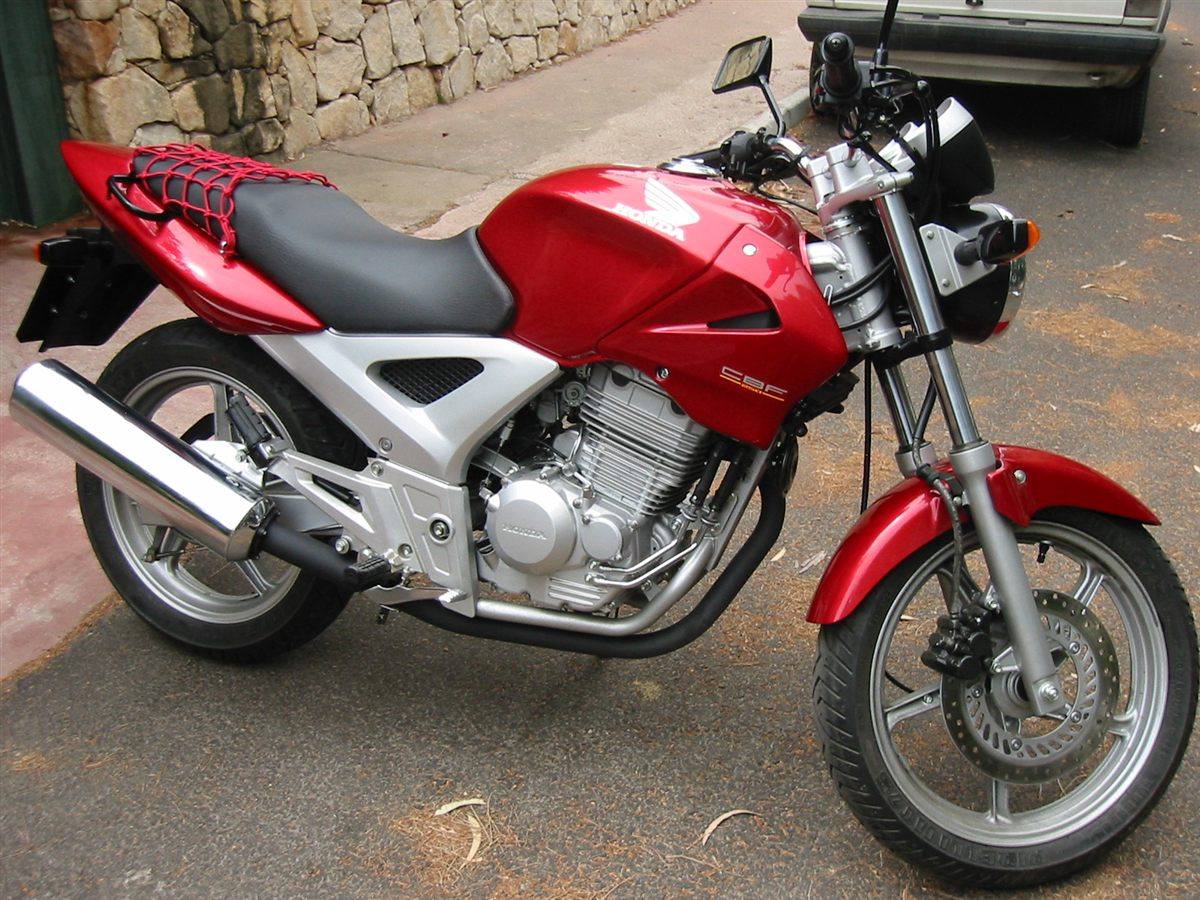

| MODEL | HONDA CBF 250 2007 - 2009 |
| Year | 2007 - 2009 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 73 x 59.5 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 15 kW / 21.4 hp @ 8000 rpm |
| Max Torque | 22 Nm / 16.2 lb-ft @ 6000 rpm |
| Ignition | Digital transistorized |
| Induction | 32 mm VE-L type carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 37 mm telescopic fork, 130 mm / 5.1 in travel |
| Rear Suspension | Monoshock, 100 mm / 3.9 in travel |
| Front Brakes | Single 276 mm disc, 2-piston caliper |
| Rear Brakes | 130 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2030 mm / 79.9 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1370 mm / 53.9 in |
| Ground Clearance | 180 mm / 7.1 in |
| Dry Weight | 138.5 kg / 305 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/80-17 |
| Rear Tyre | 130/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2007-2009 the CBF250 carried on with the same air-cooled 249 cc DOHC single, six-speed gearbox and chassis as the original version. It stayed a light, low-cost runabout aimed at novices and commuters, with cast aluminium wheels, tubeless tyres, a drilled front disc and a rear drum brake.
