Honda Cbr 1000RR-SP 2019 Specs & Photos

Spec sheet

MODEL	HONDA CBR 1000RR-SP 2019
Year	2019
Engine Type	Four stroke, transverse four cylinder, chain-driven DOHC, 4 valves per cylinder
Displacement / Capacity	999 cc / 60.9 cu in
Bore X Stroke	76 x 55.1 mm
Compression Ratio	13.0:1
Cooling System	Liquid cooled
Max Power	141 kW / 189 hp @ 13000 rpm
Max Torque	116 Nm / 85.5 lb-ft @ 11000 rpm
Ignition	Computer-controlled digital transistorised with 3-D mapping
Induction	PGM-DSFI dual stage fuel injection, 46 mm throttle bodies, Denso 12-hole injectors
Start System	Electric
TRANSMISSION SPECS
Lubrication	Wet sump
Gear Box	6 speed, quickshifter
Clutch	Wet, multiplate with diaphragm spring
Final Drive	#530 O-ring sealed chain
CHASSIS SPECS
Frame	Diamond; aluminium composite twin spar
Front Suspension	43 mm Öhlins NIX30 Smart-EC inverted fork, semi-active, adjustable preload, compression and rebound, 120 mm / 4.7 in travel
Rear Suspension	Unit Pro-Link, gas-charged Öhlins TTX36 Smart-EC damper, semi-active, adjustable preload, compression and rebound, 132 mm / 5.2 in travel
Front Brakes	2x 320 mm discs, Brembo radial-mount 4-piston monobloc calipers, ABS
Rear Brakes	Single 220 mm disc, ABS, sintered metal pads
DIMENSION SPECS
Overall Length	—
Overall Width	720 mm / 28.3 in
Overall Height	1125 mm / 44.3 in
Seat Height	820 mm / 32.3 in
Wheelbase	1405 mm / 55.3 in
Ground Clearance	129 mm / 5.1 in
Dry Weight	—
Wet Weight	195 kg / 430 lbs
WHEEL SPECS
Front Tyre	120/70ZR17 58W
Rear Tyre	190/50ZR17 73W
FUEL SYSTEM
Fuel Capacity	16 Litres / 4.2 US gal
Fuel Consumption	—
Top Speed	—

Honda file

The 2019 SP took the same electronics updates as the base bike - separate wheelie control, revised ABS and smoother throttle response - while keeping its Öhlins Smart-EC suspension, Brembo calipers, titanium tank and lithium-ion battery. It was the final SP of the SC77 generation.

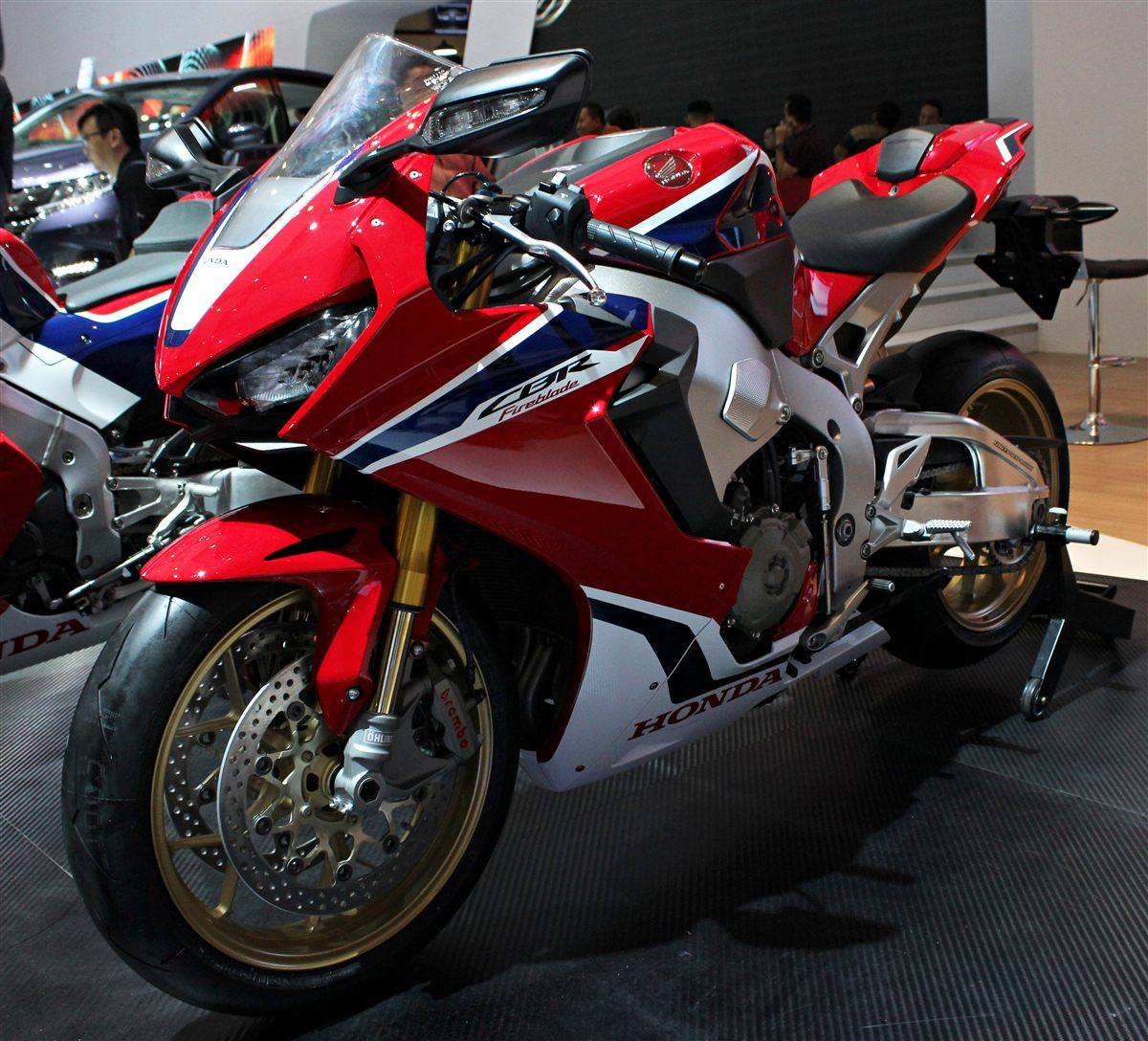

HONDA CBR 1000RR-SP 2019
