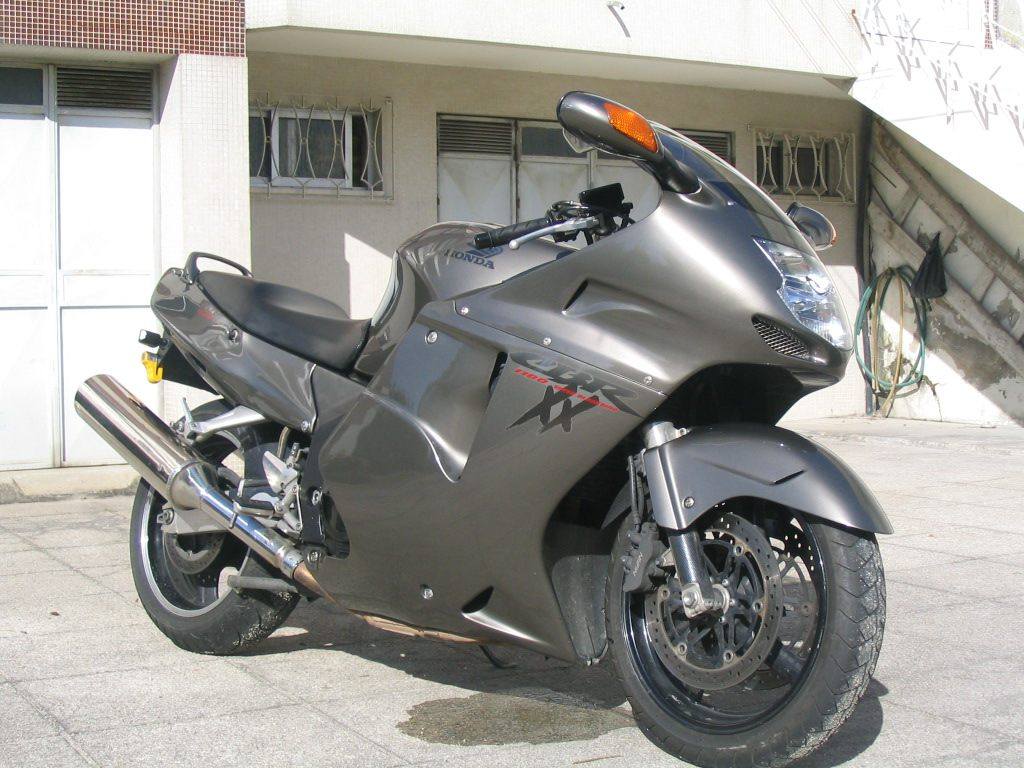

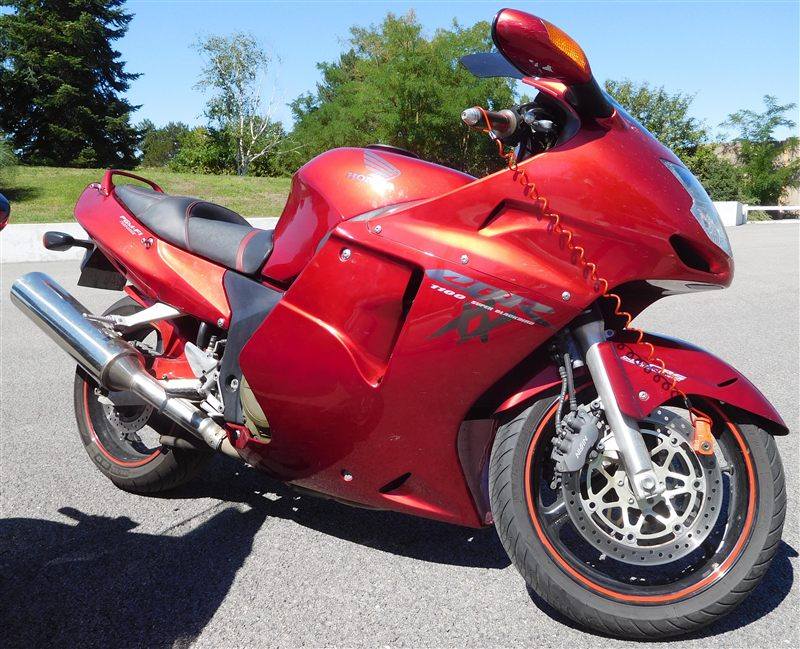

| MODEL | HONDA CBR 1100XX SUPER BLACKBIRD 1997 |
| Year | 1997 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1137 cc / 69.3 cu in |
| Bore X Stroke | 79 x 58 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 122 kW / 164 hp @ 10000 rpm |
| Max Torque | 124 Nm / 91.5 lb-ft @ 7250 rpm |
| Ignition | Computer-controlled digital transistorized |
| Induction | 4x 42 mm Keihin carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Hydraulic, wet multi-plate |
| Final Drive | O-ring or X-ring chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 43 mm HMAS cartridge-type fork, 120 mm / 4.7 in travel |
| Rear Suspension | Pro-Link single shock, spring preload and rebound damping adjustable, 120 mm / 4.7 in travel |
| Front Brakes | 2x 310 mm discs, 3 piston calipers (linked) |
| Rear Brakes | Single 256 mm disc, 3 piston caliper (linked) |
| DIMENSION SPECS | |
| Overall Length | 2160 mm / 85.0 in |
| Overall Width | 720 mm / 28.4 in |
| Overall Height | 1170 mm / 46.1 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1490 mm / 58.6 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 223 kg / 490 lbs |
| Wet Weight | 254 kg / 559 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | 16.5 km/l |
| Top Speed | 303 km/h / 188.2 mph |
Launched in late 1996 as a 1997 model, the CBR1100XX was Honda's answer to Kawasaki's ZZ-R1100 in the race for the fastest production bike, and magazine tests put it just ahead. Its 1137 cc carburettor four used twin balancer shafts and was a stressed member of an aluminium twin-spar frame, while the slim, wind-tunnel-shaped fairing with stacked headlights kept drag low. It paired that speed with linked brakes and genuine touring comfort.
