| MODEL | HONDA CBR 125R 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valve |
| Displacement / Capacity | 124.7 cc / 7.6 cu in |
| Bore X Stroke | 58 x 47.2 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 10 kW / 13.6 hp @ 10000 rpm |
| Max Torque | 10.6 Nm / 1.08 kgf-m @ 8250 rpm |
| Ignition | Fully transistorised with electronic advance |
| Induction | PGM-FI electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel, double cradle |
| Front Suspension | 31 mm telescopic fork, 109 mm / 4.2 in travel |
| Rear Suspension | Monoshock, 120 mm / 4.7 in travel |
| Front Brakes | Single 276 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1946 mm / 76.6 in |
| Overall Width | 704 mm / 27.7 in |
| Overall Height | 1089 mm / 42.9 in |
| Seat Height | 795 mm / 31.3 in |
| Wheelbase | 1310 mm / 50.9 in |
| Ground Clearance | 185 mm / 7.3 in |
| Dry Weight | — |
| Wet Weight | 137 kg / 302 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/80-17 |
| Rear Tyre | 130/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 2.9 US gal |
| Fuel Consumption | 2.6 L/100 km |
| Top Speed | 110 km/h / 68 mph |
Photo: SkylineTiger, CC BY-SA 3.0, via Wikimedia Commons
Photo: Thomas T. from citizen of Earth, CC BY-SA 2.0, via Wikimedia Commons

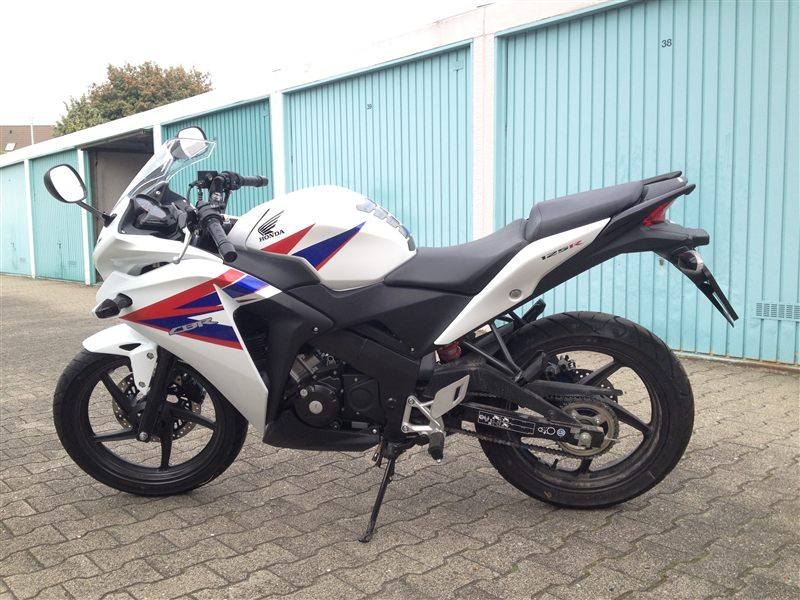

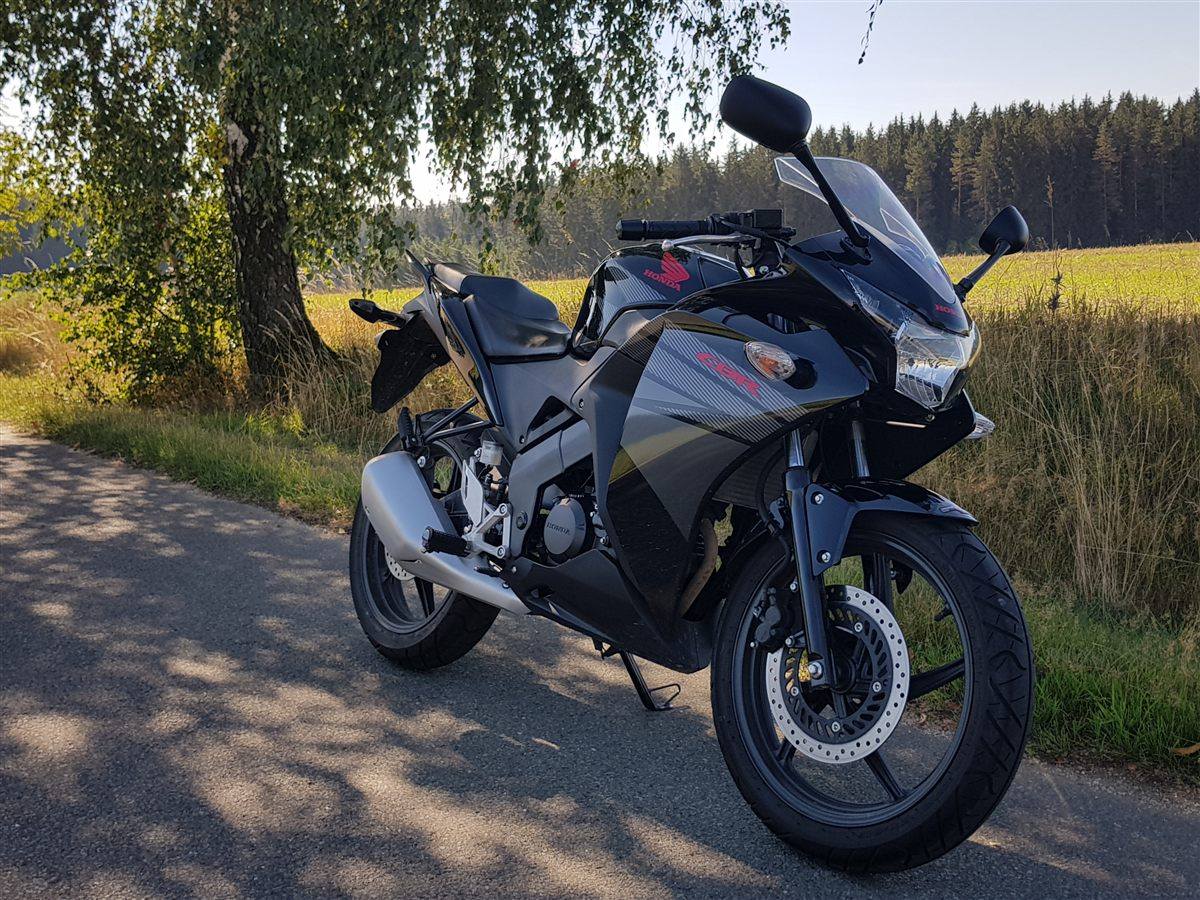

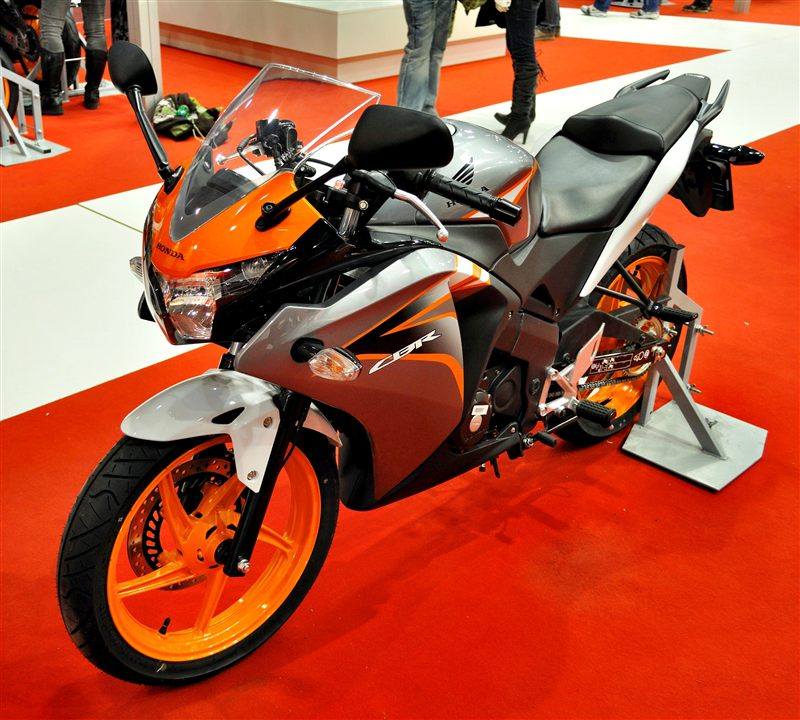

The last run of the JC50-generation CBR125R, a small fully faired learner sportbike built in Thailand. It carried over the 2011 restyle that borrowed its fairing, tank and side panels from the CBR250R, with a fuel-injected SOHC single and a six-speed box. For 2016-17 Honda only refreshed the graphics; there was no ABS option, and the bike bowed out in Europe when Euro 4 arrived, with the CB125R taking over its slot.
