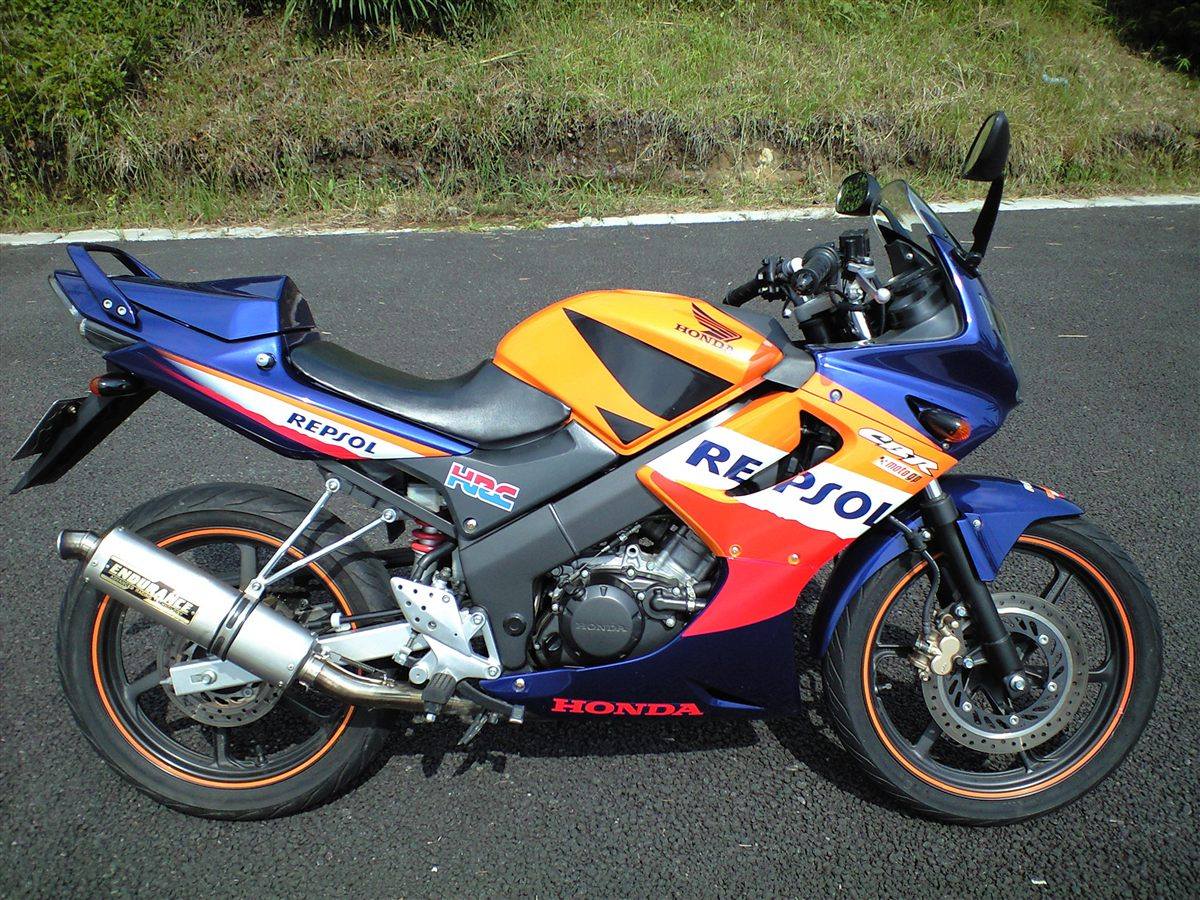

| MODEL | HONDA CBR 150R REPSOL 2005 |
| Year | 2005 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valve |
| Displacement / Capacity | 149.4 cc / 9.1 cu in |
| Bore X Stroke | 63.5 x 47.2 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 12.6 kW / 16.9 hp @ 9000 rpm |
| Max Torque | 13.7 Nm / 10.1 lb-ft @ 7000 rpm |
| Ignition | CDI |
| Induction | Carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel twin-spar |
| Front Suspension | Telescopic fork |
| Rear Suspension | Monoshock |
| Front Brakes | Single 276 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1910 mm / 75.2 in |
| Overall Width | 652 mm / 25.7 in |
| Overall Height | 1065 mm / 41.9 in |
| Seat Height | 787 mm / 30.9 in |
| Wheelbase | 1286 mm / 50.6 in |
| Ground Clearance | 166 mm / 6.5 in |
| Dry Weight | — |
| Wet Weight | 135 kg / 297.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/90-17 |
| Rear Tyre | 100/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 12 Litres / 3.1 US gal |
| Fuel Consumption | — |
| Top Speed | — |
A Repsol-liveried version of the first-generation, carburettor CBR150R, painted in the colours of Honda's MotoGP factory team. The spec page shows it as mechanically identical to the standard 2005 bike, so the difference was the orange, red and white paint and graphics.
