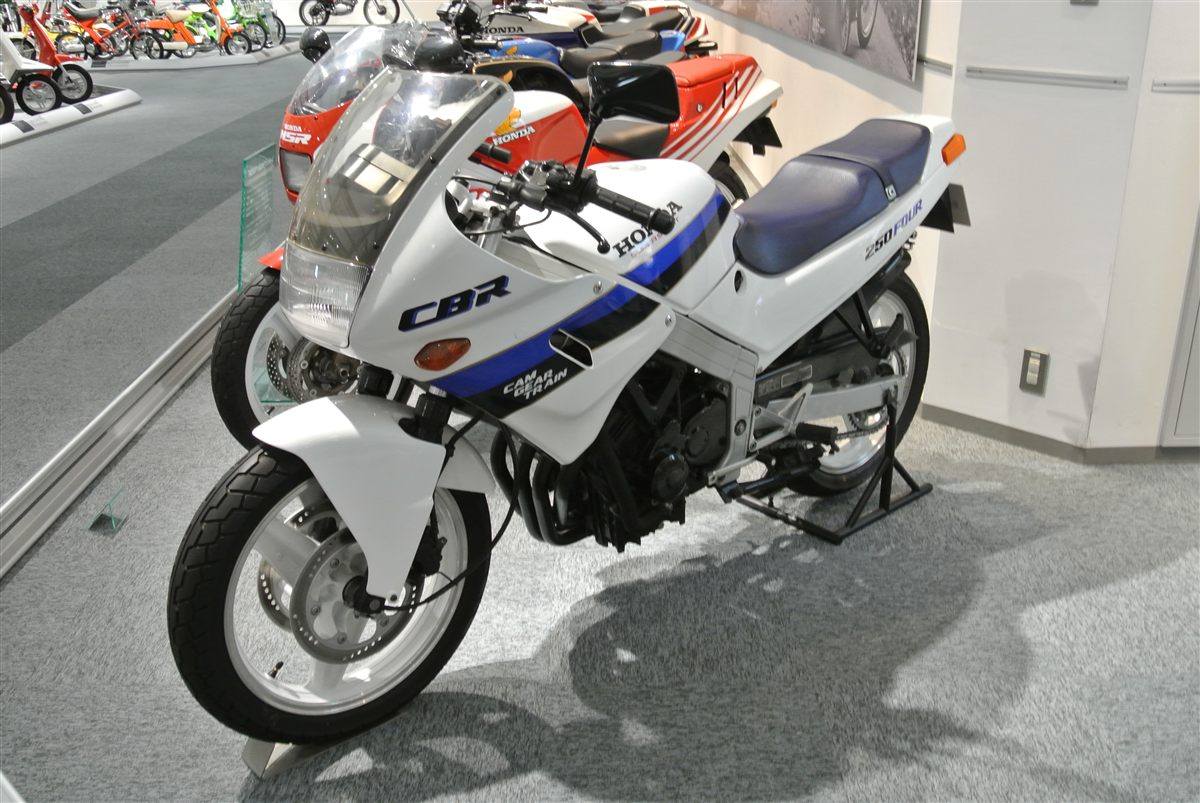

| MODEL | HONDA CBR 250 FOUR 1986 |
| Year | 1986 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 48.5 x 33.8 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 29.2 kW / 40 hp @ 14500 rpm |
| Max Torque | 23.5 Nm / 17.3 lb-ft @ 11500 rpm |
| Ignition | CDI |
| Induction | Carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork |
| Rear Suspension | Pro-Link swingarm |
| Front Brakes | 2x hydraulic discs |
| Rear Brakes | Single hydraulic disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 750 mm / 29.5 in |
| Wheelbase | 1380 mm / 54.3 in |
| Ground Clearance | — |
| Dry Weight | 153 kg / 337 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/70-17 |
| Rear Tyre | 130/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The CBR250 Four (MC14) was Honda's first CBR-badged quarter-litre, sold in Japan from 1986. Its liquid-cooled 249 cc inline four revved to around 14,500 rpm, giving small-capacity riders a genuine miniature superbike. It set the template for the screaming 250 cc fours that dominated the Japanese market into the 1990s.
