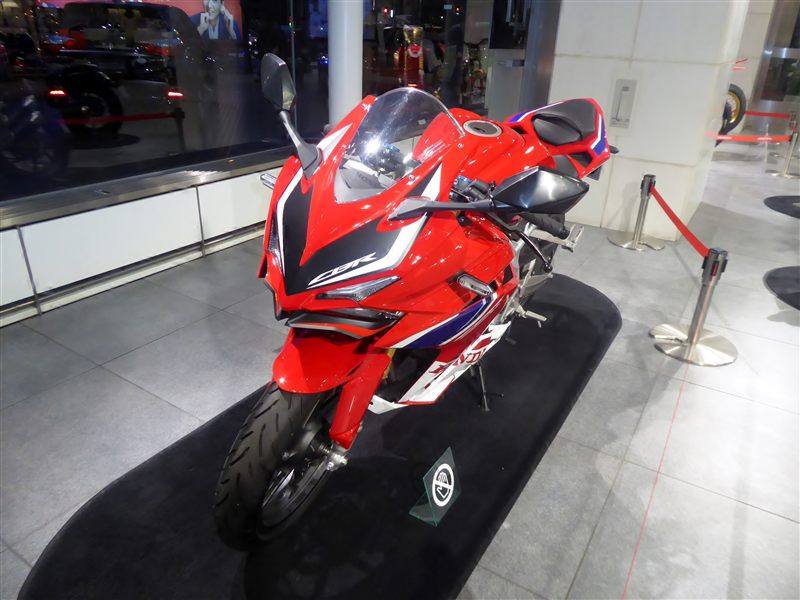

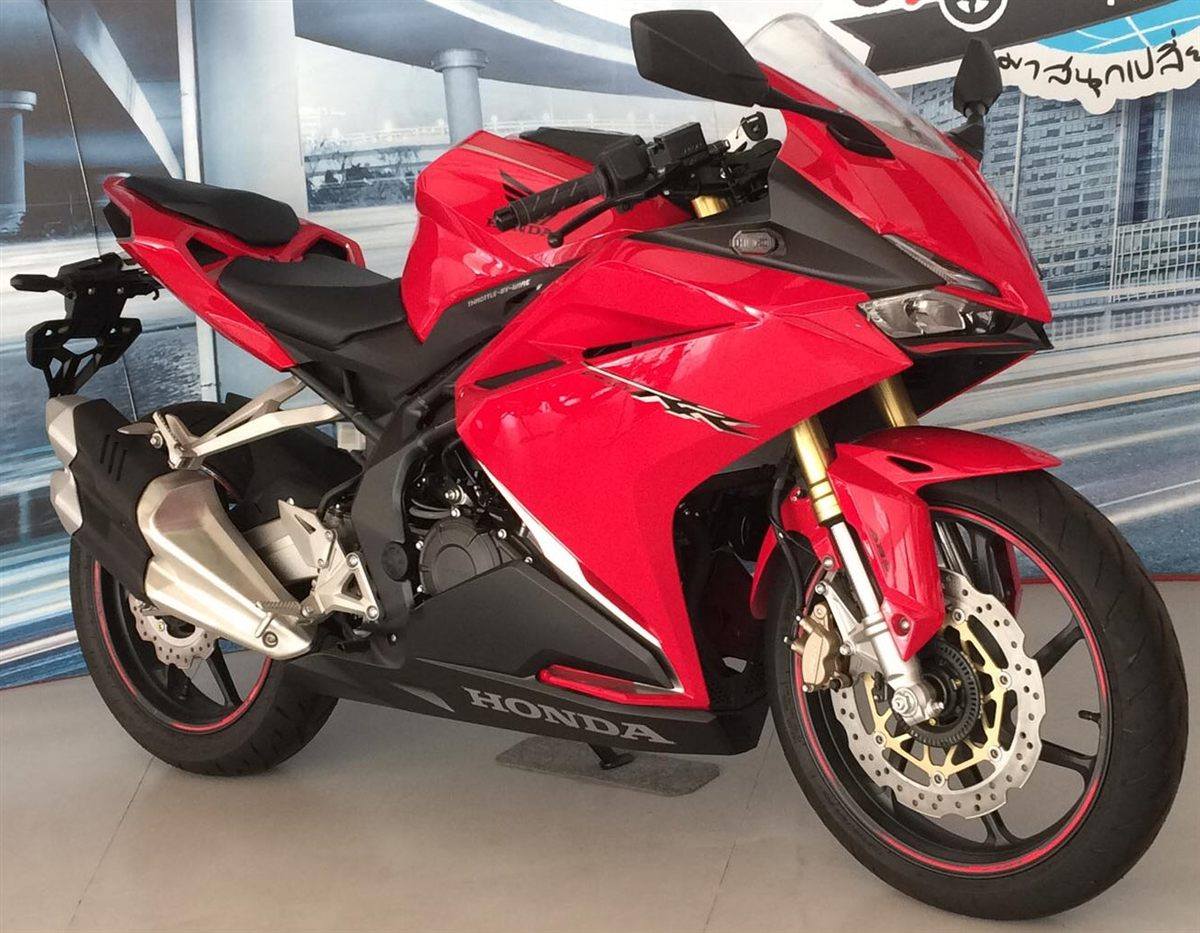

| MODEL | HONDA CBR 250RR 2019 - 2020 |
| Year | 2019 - 2020 |
| Engine Type | Four stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 249.7 cc / 15.2 cu in |
| Bore X Stroke | 62.3 x 41.4 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 27.0 kW / 36.3 hp @ 12500 rpm |
| Max Torque | 23.3 Nm / 17.2 lb-ft @ 10500 rpm |
| Ignition | Full transistorised, battery |
| Induction | PGM-FI fuel injection, throttle-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump, pressure and splash |
| Gear Box | 6 Speed |
| Clutch | Wet multiplate, coil spring |
| Final Drive | #520 O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | Steel truss |
| Front Suspension | 37 mm Showa inverted telescopic fork |
| Rear Suspension | Aluminium gull-arm swingarm, Pro-Link monoshock, 5-step preload adjustable |
| Front Brakes | Single 310 mm disc, 2-piston Nissin caliper (ABS on ABS version) |
| Rear Brakes | Single 240 mm disc, 1-piston Nissin caliper |
| DIMENSION SPECS | |
| Overall Length | 2060 mm / 81.1 in |
| Overall Width | 724 mm / 28.5 in |
| Overall Height | 1097 mm / 43.2 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1389 mm / 54.7 in |
| Ground Clearance | 144 mm / 5.7 in |
| Dry Weight | — |
| Wet Weight | 164.5 kg / 363 lbs (ABS: 167.8 kg / 370 lbs) |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 |
| Rear Tyre | 140/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14.5 Litres / 3.8 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The first-generation twin-cylinder CBR250RR carried on largely unchanged, with new colours being the main difference. It kept the ride-by-wire throttle and riding modes, the truss frame with gull-arm swingarm and the 37 mm upside-down fork, with ABS on the ABS version.
