| MODEL | HONDA CBR 500R 2017 - 2018 |
| Year | 2017 - 2018 |
| Engine Type | Four stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 471 cc / 28.7 cu in |
| Bore X Stroke | 67.0 x 66.8 mm |
| Compression Ratio | 10.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 35 kW / 46.9 hp @ 8500 rpm |
| Max Torque | 43 Nm / 31.7 lb-ft @ 7000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Induction | PGM-FI fuel injection, 34 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiplate |
| Final Drive | O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | Steel backbone |
| Front Suspension | 41 mm telescopic fork, 109 mm / 4.3 in travel |
| Rear Suspension | Pro-Link single shock, nine-position spring preload adjustment, 120 mm / 4.7 in travel |
| Front Brakes | Single 320 mm wave disc, 2-piston caliper |
| Rear Brakes | Single 240 mm wave disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1400 mm / 55.1 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 191 kg / 421 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70-17 |
| Rear Tyre | 160/60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16.6 Litres / 4.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |

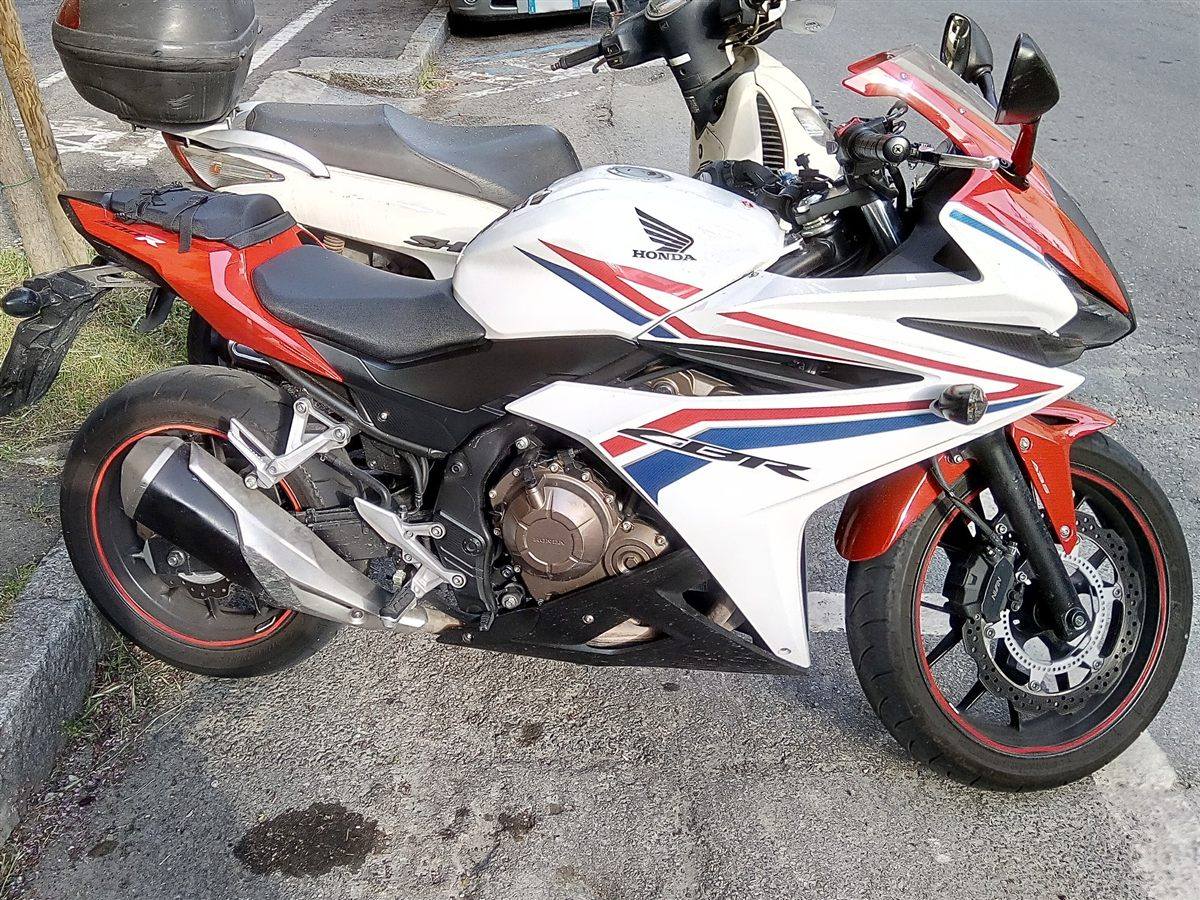

A carry-over of the 2016 facelift, the 2017-2018 CBR500R kept its LED-lit fairing, larger tank and 471 cc twin. It was sold as a friendly entry into sport riding with race-inspired looks.
